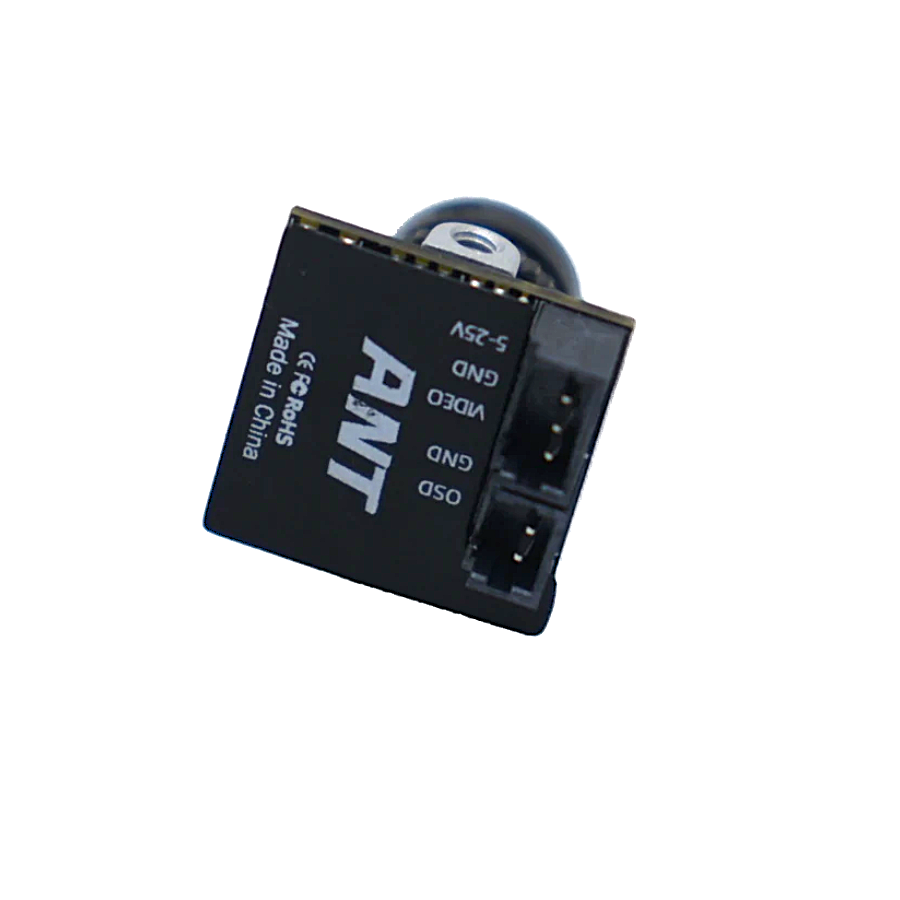

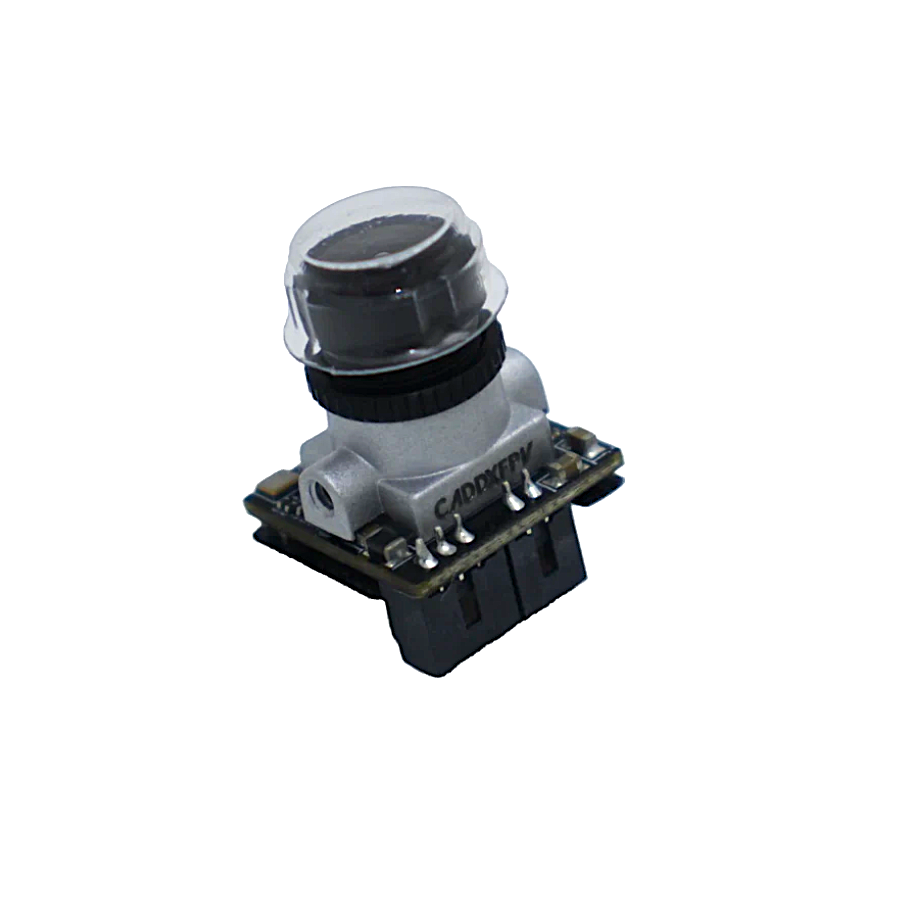

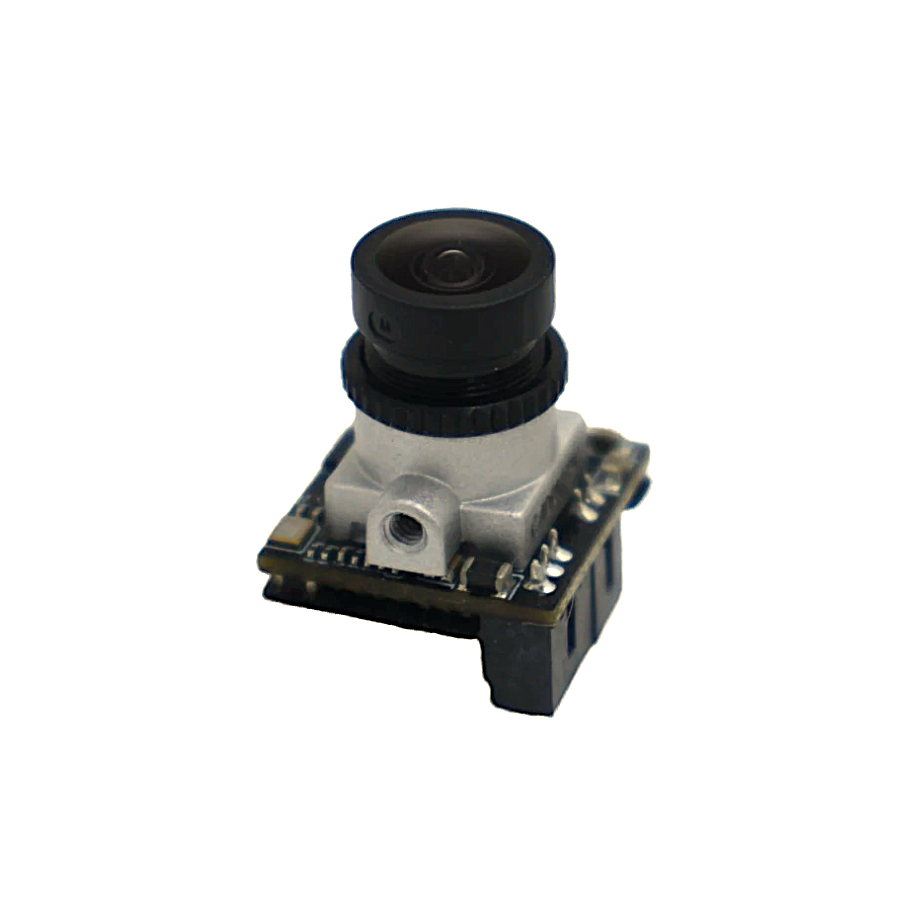

The Caddx Ant is a full-featured 1200TVL nano analog FPV camera designed for pilots who need maximum image quality in minimum weight and size. At just 2 grams and 14x14mm, it’s one of the lightest and most compact analog cameras available — ideal for 3.5-inch cinewhoops, toothpick builds, and ultralight freestyle quads where every gram counts.
Why choose the Caddx Ant?
Most nano cameras at this size sacrifice image quality for weight savings. The Caddx Ant doesn’t — it packs a 1/3″ CMOS sensor, Global WDR for handling high-contrast lighting, 3D DNR for clean noise-free image output, and a 165° FOV wide-angle lens into a body smaller than a fingernail. Pair it with components from our AIO flight controller range for a complete lightweight build.
Key features
Ultra-lightweight — just 2g
At 2 grams, the Caddx Ant is one of the lightest analog FPV cameras available. For 3.5-inch cinewhoops and ultralight builds, this weight saving directly translates to longer flight times and better agility.
1200TVL with 1/3″ CMOS sensor
1200TVL horizontal resolution and a 1/3″ CMOS sensor deliver sharp, detailed analog video output — better clarity and colour accuracy than older 600-800TVL budget cameras.
Global WDR + 3D DNR
Global Wide Dynamic Range handles scenes with strong contrast between bright and dark areas — flying from indoors to outdoors, tree lines against bright sky, and similar transitions that typically blow out or block other cameras. 3D Digital Noise Reduction keeps the image clean and grain-free in low light.
165° FOV wide-angle lens
The 1.8mm lens delivers a 165° field of view — one of the widest available in a nano form factor, giving excellent peripheral awareness during freestyle and proximity flying.
5D-OSD menu board
The included 5D-OSD menu board allows in-flight camera parameter adjustment — brightness, contrast, WDR settings, and more — without needing to connect to a computer.
Wide voltage input — 3.7-18V
Compatible with 1S through 4S builds with no additional regulators required, making the Ant one of the most versatile nano cameras for multi-voltage drone configurations.
Specifications
| Specification | Detail |
|---|---|
| Image sensor | 1/3″ CMOS |
| Horizontal resolution | 1200TVL |
| Lens | 1.8mm / F2.5 |
| FOV | 165° |
| TV system | PAL / NTSC switchable |
| Video output | CVBS analog |
| WDR | Global WDR |
| DNR | 3D DNR |
| OSD | 5D-OSD menu board (included) |
| Min. illumination | 0.001 Lux @ F1.2 |
| S/N ratio | >52dB (AGC OFF) |
| Electronic shutter | PAL: 1/50–100,000 / NTSC: 1/60–100,000 |
| Input voltage | 3.7–18V |
| Dimensions | 14 x 14mm (19 x 19mm with bracket) |
| Weight | ~2g |
| Working temperature | -20°C to +60°C |
| Aspect ratio options | 4:3 or 16:9 |
| Colour options | Black / Silver |
What’s in the box
- 1x Caddx Ant 1200TVL analog camera
- 1x 3-pin FPV silicone cable
- 1x 5D-OSD menu board
- 1x 19x19mm mounting bracket
- 4x mounting screws
- 1x warranty card
Recommended for
- 3.5-inch and smaller cinewhoop builds
- Toothpick and ultralight freestyle quads
- Tinywhoop builds (1S-2S)
- Any build where minimum camera weight is a priority
Build compatibility
The Caddx Ant fits nano 14x14mm camera mounts and is compatible with larger 19x19mm mounts using the included bracket. Works with any analog VTX — browse our FPV VTX collection for compatible video transmitters.
