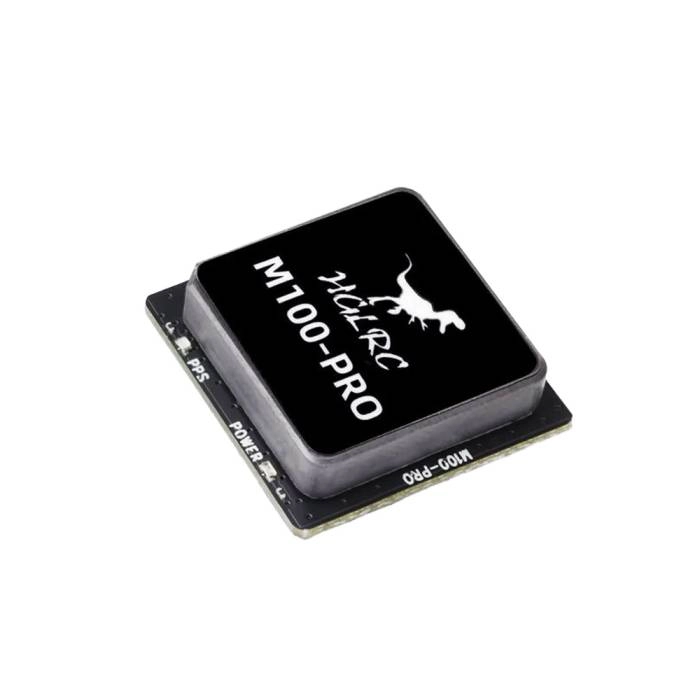

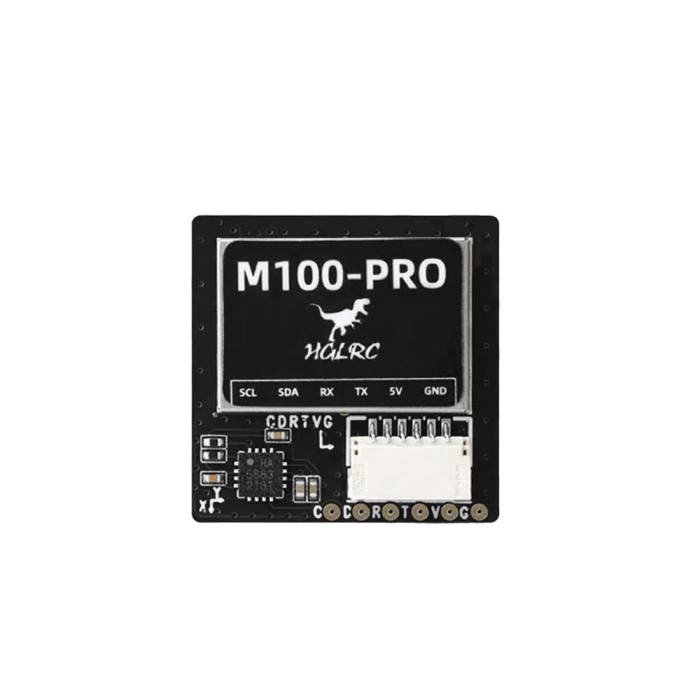

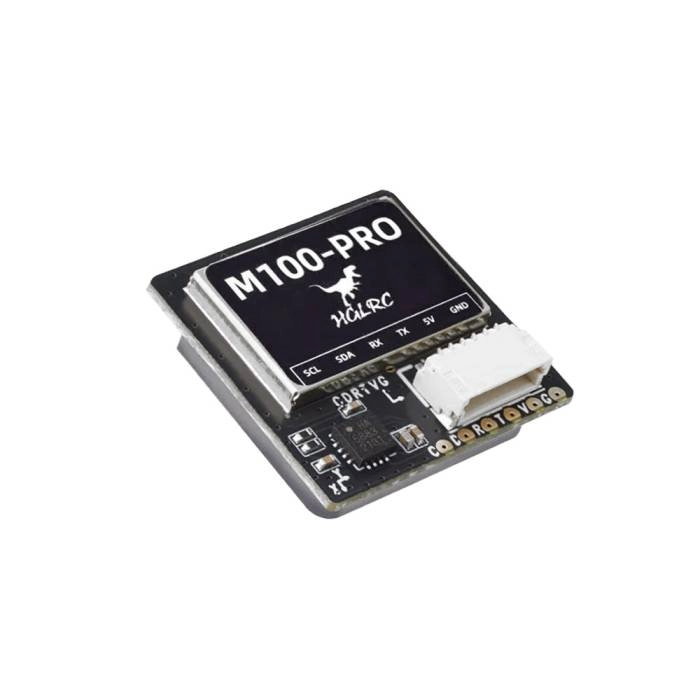

HGLRC M100 Pro GPS – High Precision M10 GPS Module with Compass for FPV Drones

The HGLRC M100 Pro GPS is one of the most advanced compact GPS modules available for modern FPV drones, long-range UAVs, cinematic quads, and Mission Planner based autonomous systems. Built around a latest-generation M10 GNSS platform with integrated QMC5883L compass, the M100 Pro delivers faster satellite acquisition, stronger signal retention, and significantly improved positioning stability compared to older M8-based GPS modules.

Designed for pilots who demand reliable GPS Rescue, Return-to-Home functionality, waypoint navigation, and stable long-range positioning, the HGLRC M100 Pro has rapidly become a preferred choice among FPV enthusiasts and professional drone builders.

HGLRC M100 Pro GPS Specifications

The module supports multiple satellite constellations simultaneously for improved positioning accuracy and stronger lock reliability.

Why the HGLRC M100 Pro GPS Stands Out

Modern FPV drones require much more than basic GPS positioning. Pilots today demand:

• Fast satellite lock
• Reliable GPS Rescue
• Accurate altitude and heading information
• Stable waypoint navigation
• Consistent home position detection
• Low signal drift

The HGLRC M100 Pro addresses all these requirements through its upgraded M10 generation GNSS architecture and integrated digital compass.

Compared to older M8 modules, the M100 Pro offers:

• Faster cold starts
• More satellites detected simultaneously
• Better urban signal retention
• Improved weak-signal sensitivity
• Enhanced low-altitude positioning

Advanced M10 GNSS Architecture

The M10 platform significantly improves positioning efficiency and signal processing capability compared to previous-generation GPS hardware.

Faster Satellite Acquisition Performance

One of the biggest advantages of the HGLRC M100 Pro GPS is its rapid satellite acquisition capability.

The upgraded chipset can search and track more than 50 satellites simultaneously while utilizing up to 120 receiving channels.

This results in:

• Faster GPS lock times
• More stable HDOP values
• Improved home position accuracy
• Reduced drift during hover
• Better GPS Rescue performance

For long-range FPV pilots, this improvement becomes highly noticeable before takeoff and during autonomous recovery functions.

Built-In QMC5883L Compass for Accurate Heading

The integrated QMC5883L compass significantly improves directional accuracy for autonomous flight systems.

This becomes especially important for:

• Mission Planner drones
• INAV systems
• ArduPilot setups
• Waypoint missions
• Return-to-Launch functionality
• Autonomous navigation

The compass continuously provides heading information to the flight controller, allowing smoother navigation and more accurate orientation correction.

Supported Satellite Systems

The HGLRC M100 Pro supports multiple global navigation satellite systems simultaneously.

This multi-band support dramatically improves positioning stability and redundancy.

Ideal Applications for HGLRC M100 Pro GPS

Long-Range FPV Drones

The M100 Pro is extremely popular in:

• 7-inch long-range quads
• 10-inch endurance drones
• Li-ion exploration builds
• Mountain surfing drones

Its strong signal acquisition allows pilots to maintain stable GPS Rescue performance even at significant distances.

Mission Planner and ArduPilot Systems

The integrated compass and UBLOX protocol compatibility make the module ideal for:

• Autonomous waypoint missions
• Survey drones
• Mapping UAVs
• Surveillance systems
• Tactical FPV builds

The compass improves directional stability during autonomous navigation.

Cinematic FPV Drones

For cinematic pilots, the M100 Pro provides:

• Stable hover positioning
• Better rescue reliability
• Smooth GPS-assisted flight
• Safer long-distance operation

The lightweight design makes it suitable even for compact cinematic builds.

HGLRC M100 Pro vs Older M8 GPS Modules

The jump from M8 to M10 architecture represents a major improvement in real-world FPV GPS performance.

Installation Guidelines

Recommended Mounting Position

For best performance:

• Mount the GPS facing upward
• Keep away from VTX antennas
• Avoid ESC power wires
• Place above carbon fiber if possible
• Use TPU GPS mounts for vibration isolation

Improper placement can reduce satellite acquisition quality and compass accuracy.

Betaflight Setup Guide

Typical Betaflight configuration includes:

1. Enable GPS under Ports
2. Select UBLOX protocol
3. Set baud rate to 115200
4. Enable GPS Rescue
5. Verify satellite lock before arming

The M100 Pro requires Betaflight 4.3 or newer for proper M10 chip recognition.

INAV and ArduPilot Compatibility

The HGLRC M100 Pro works exceptionally well with:

• INAV
• ArduPilot
• Mission Planner
• PX4 systems

Compass calibration is recommended after installation for maximum directional accuracy.

Real-World FPV Performance

Pilots using the HGLRC M100 Pro frequently report:

• Faster lock acquisition outdoors
• Stable satellite count
• Reliable GPS Rescue activation
• Strong long-range confidence
• Improved heading stability
• Better low-speed positioning

The module performs particularly well in open environments where multiple GNSS constellations can be utilized simultaneously.

Why M10 GPS Modules Are the Future of FPV Navigation

The M10 GNSS generation improves:

• Power efficiency
• Tracking sensitivity
• Signal stability
• Weak-signal acquisition
• Satellite management
• Multi-constellation precision

Modern FPV systems increasingly rely on GPS functionality not only for rescue features but also for autonomous and semi-autonomous flight operations.

Best Drone Types for the HGLRC M100 Pro

The HGLRC M100 Pro GPS is highly recommended for:

• 5-inch GPS freestyle drones
• 7-inch long-range quads
• 10-inch endurance builds
• Mapping UAVs
• Survey drones
• Tactical reconnaissance drones
• Cinematic FPV platforms
• Mission Planner autonomous systems

Its balance of lightweight construction, advanced positioning capability, and integrated compass functionality makes it one of the most versatile FPV GPS modules currently available.

Final Verdict

The HGLRC M100 Pro GPS delivers outstanding performance for modern FPV and autonomous drone applications. Its advanced M10 GNSS platform, integrated QMC5883L compass, fast satellite acquisition, and multi-constellation support make it a significant upgrade over older-generation GPS modules.

For pilots seeking reliable GPS Rescue, stronger waypoint navigation, improved heading precision, and stable long-range operation, the HGLRC M100 Pro remains one of the best compact GPS solutions available for FPV drones today.
