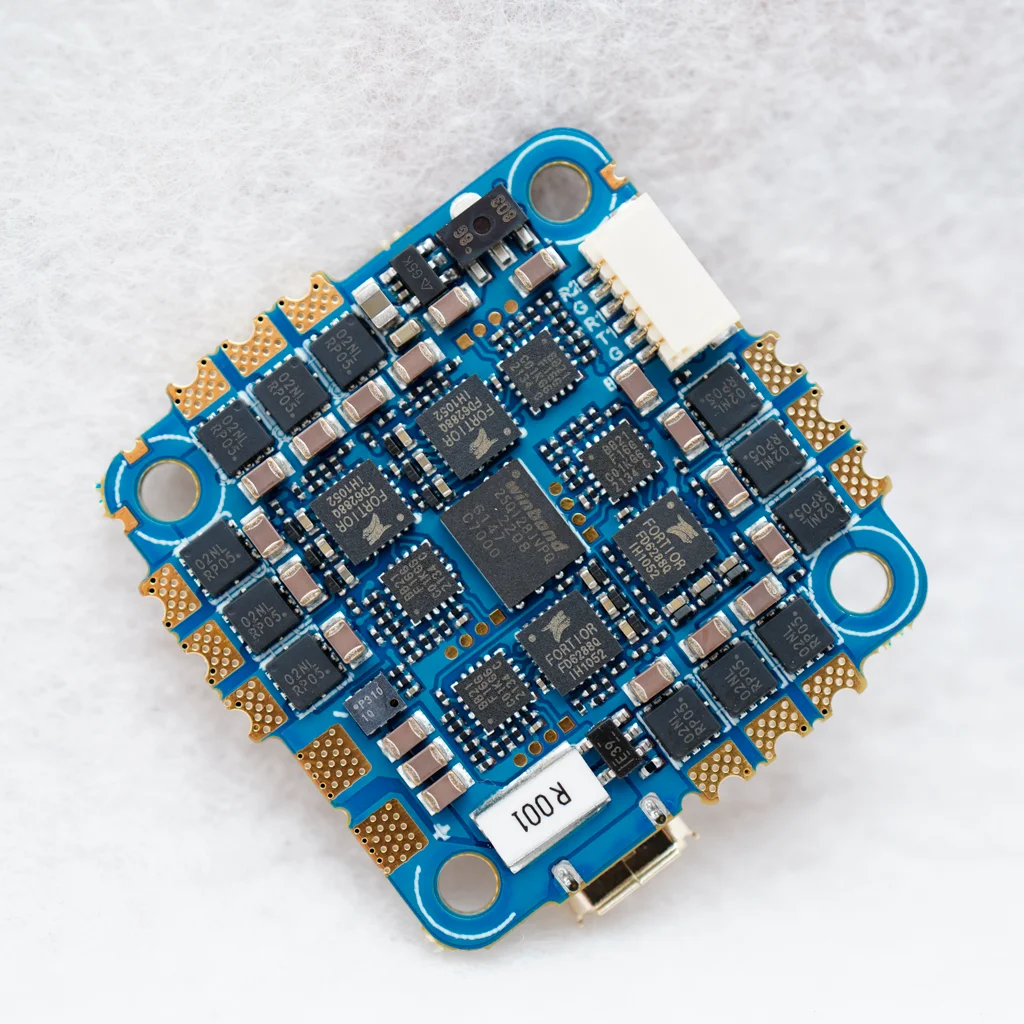

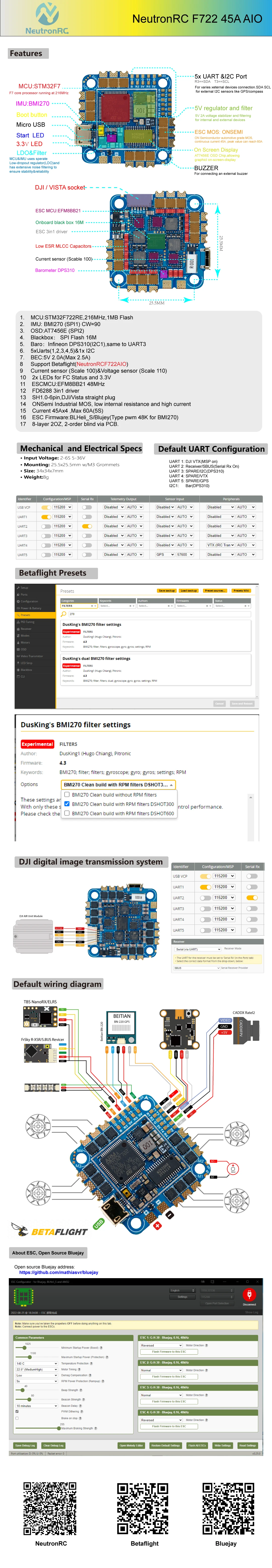

NeutronRC F722 AIO 45A 2-6S BLHeIi_S Features and Specifications:
1. MCU:STM32F722RE,216MHz,1MB Flash
2. IMU: BMI270 (SPI1) CW=90
3. OSD:AT7456E (SPI2)
4. Blackbox： SPI Flash 16M
5. Baro：Infineon DPS310(I2C1),same to UART3
6. 5xUarts(1,2,3,4,5)&1x I2C
7. BEC:5V 2.0A(Max 2.5A)
8 Support Betaflight(NeutronRCF722AIO)
9 Current sensor (Scale 100)&Voltage sensor (Scale 110)
10 2x LEDs for FC Status and 3.3V
11 ESCMCU:EFM8BB21 48MHz
12 FD6288 3in1 driver
13 SH1.0-6pin,DJI/Vista straight plug
14 ONSemi Industrial MOS, low internal resistance and high current
15 Current 45Ax4 ,Max 60A(5S)
16 ESC Firmware:BLHeli_S/Blujey(Type pwm 48K for BMI270)
17 8-layer 2OZ, 2-order blind via PCB.
· Input Voltage: 2-6S 5-36V
· Mounting: 25.5×25.5mm w/M3 Grommets
· Size: 34x34x7mm
· Weight:8g
更多飞行视频： https://youtu.be/IOGA35uiUiU
INAV Firmware and HEX down
https://drive.google.com/drive/folders/1u9gsk7UzZzxWLTcCCFyVD8DCRvfQlD_-?usp=sharing
Applied to 3-5 inch AIO, can execute 5-inch frame, 2306.5 motor, and 6S working voltage
An FPV drone frame is the backbone of your drone’s build, providing stability and structure for the rest of the components. At the FPV Project, we offer a wide range of FPV drone frames for sale that cater to both beginners and seasoned pilots, providing a foundation for building high-performance racing and freestyle drones. With our selection of FPV frames, you can customize and build your drone to your exact specifications and take your flying skills to the next level.
Learn More About Carbon Fiber!
https://en.wikipedia.org/wiki/Carbon_fiber_reinforced_polymer
- Carbon fiber is a popular material choice for FPV drone frames due to its strength, durability, and lightweight properties.
- Carbon fiber frames provide a higher strength-to-weight ratio than traditional materials, resulting in better performance and maneuverability.
- Carbon fiber composites are resistant to impacts and vibrations, which helps to protect the drone’s sensitive electronics and maintain stability during flight.
- The use of carbon fiber materials in FPV drones also enables faster acceleration, higher speeds, and longer flight times, resulting in a better overall experience for the pilot.
- Carbon fiber is also an excellent thermal conductor, helping to dissipate heat generated by high-powered motors and batteries, thus preventing damage to the drone’s components.
- FPV drone enthusiasts should consider carbon fiber frames when purchasing a new drone or upgrading their existing one to achieve optimal performance and durability.
- Carbon fiber frames are available in a range of sizes and configurations, suitable for different types of drones, including racing, freestyle, and long-range drones.
- When purchasing a carbon fiber frame, consider factors such as weight, stiffness, and compatibility with other components to ensure the best performance for your FPV drone.
- Carbon fiber frames may be more expensive than other frame materials, but their long-lasting durability and performance benefits make them a worthwhile investment for serious FPV drone pilots.
- The FPV Project offers a wide range of carbon fiber frames, suitable for all types of FPV drones, ensuring that enthusiasts have access to the latest technology and the best possible flying experience.
