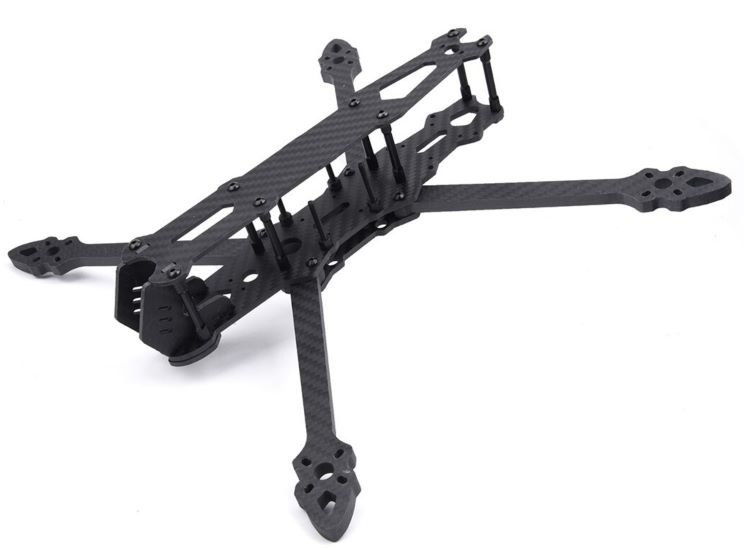

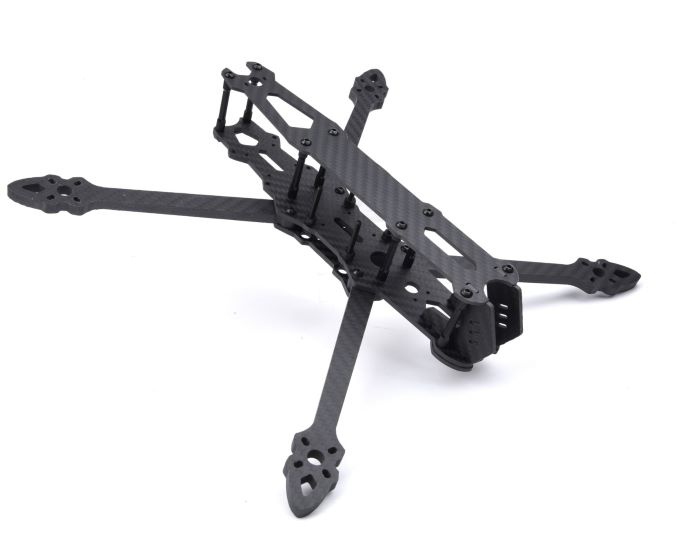

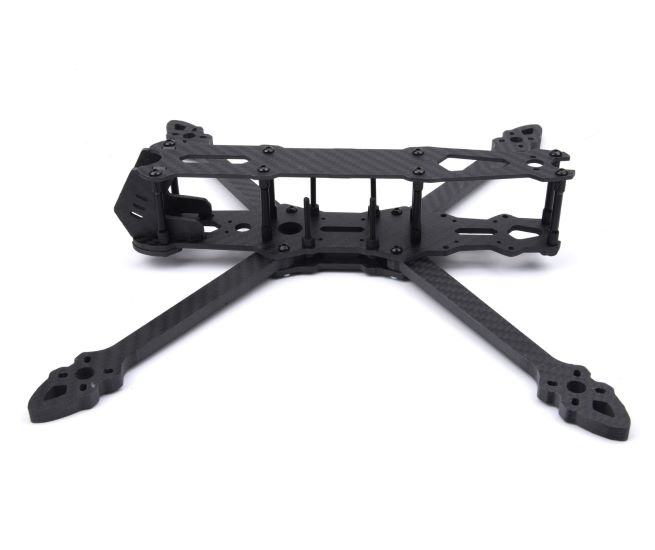

MARK7 V2 7-Inch Carbon Fiber FPV Frame: The Ultimate Choice for Long-Range Drone Builds
Precision-Engineered for Long-Range and Freestyle FPV Enthusiasts
The MARK7 V2 7-inch carbon fiber FPV frame is engineered with precision and passion, designed specifically for professional-grade long-range and freestyle drone builds. Every angle, cut, and mounting hole reflects the needs of serious FPV pilots who demand durability, modularity, and peak flight performance. Built for both cinematic exploration and high-speed action, the MARK7 V2 combines structural strength with aerodynamic agility.
✅ Key Features at a Glance
-
Wheelbase: 295mm true-X layout
-
Material: Premium 3K Carbon Fiber
-
Arm Thickness: 6mm ultra-rigid replaceable arms
-
Top Plate: 2mm
-
Bottom Plate: 2.5mm
-
Middle Plate: 2mm
-
Weight: Approx. 148g (without hardware)
-
Motor Mount Pattern: 16×16 / 19×19 M3 slots
-
Stack Mounting: 30.5×30.5mm & 20x20mm (M3)
-
Camera Mounting: Supports 19mm and 20mm FPV cameras
-
Antenna Mounts: TPU options for SMA, GPS, Crossfire, and ELRS
Why MARK7 V2 Stands Out in the 7-Inch FPV Category
1. Reinforced Carbon Fiber Architecture
Our 3K carbon fiber is CNC-cut with aerospace-grade precision, offering superior vibration dampening and impact resistance. With 6mm arms, the MARK7 V2 provides unmatched rigidity during high-speed maneuvers and harsh landings. Unlike conventional frames, ours resists delamination and structural fatigue even after hundreds of flight hours.
2. Dual Stack Support for Advanced Electronics
The MARK7 V2 features dual stack mount positions—30.5×30.5mm and 20x20mm—allowing users to easily integrate flight controllers, ESCs, HD video transmitters, and onboard computing units (like Raspberry Pi or Companion Boards). This ensures future-proof modularity and supports custom wiring and stack layering.
3. Optimized Airflow and Electronics Cooling
Air channeling cutouts beneath the main stack allow efficient airflow during flight, keeping ESCs and VTX modules cooler. These thermally optimized cavities reduce risk of overheating during long-range sessions, especially when using high-output VTX or onboard telemetry.
4. Universal Camera Mounting Options
Compatible with all standard mini and micro FPV cameras (19-20mm), the MARK7 V2 includes a protective carbon fiber camera plate paired with TPU shock-absorbing mounts. Enjoy jello-free footage, zero lens movement during crashes, and maximum flexibility with DJI O3, Caddx Vista, or analog systems.
5. Custom-Tuned for Long-Range and Cinematic Flight
The 295mm wheelbase balances stability and agility. Whether you’re running low throttle for cinematic shots or blazing through mountain ridgelines at 130 km/h, the MARK7 V2 delivers ultra-smooth, locked-in control with reduced yaw wobble and no mid-throttle oscillations.
🔧 Build Recommendations
| Component | Recommended Specification |
|---|---|
| Motors | 2806.5 – 1300KV for 6S Li-ion or LiPo |
| ESC | 55A-65A 4-in-1 |
| FC | F4 or F7 or H743 with ICM gyro |
| VTX | Up to 4W Analog or more / DJI O3 / Walksnail HD |
| Camera | 20mm HD / 19mm analog mini |
| Battery | 6S 4200-8400mAh Li-ion or 6S 4500mAh+ LiPo |
| GPS | M10Q series or BN-220 |
| Receiver | ELRS 2.4GHz / Crossfire Nano / Ghost |
Discover the Best Selection of FPV Frames – Shop Now
An FPV drone frame is the backbone of your drone’s build, providing stability and structure for the rest of the components. At the FPV Project, we offer a wide range of FPV drone frames for sale that cater to both beginners and seasoned pilots, providing a foundation for building high-performance drones. With our selection of FPV frames, you can customize and build your drone to your exact specifications and take your flying skills to the next level.
Learn More About Carbon Fiber!
https://en.wikipedia.org/wiki/Carbon_fiber_reinforced_polymer
- Carbon fiber is a popular material choice for FPV drone frames due to its strength, durability, and lightweight properties.
- Carbon fiber frames provide a higher strength-to-weight ratio than traditional materials, resulting in better performance and maneuverability.
- Carbon fiber composites are resistant to impacts and vibrations, which helps to protect the drone’s sensitive electronics and maintain stability during flight.
- The use of carbon fiber materials in FPV drones also enables faster acceleration, higher speeds, and longer flight times, resulting in a better overall experience for the pilot.
- Carbon fiber is also an excellent thermal conductor, helping to dissipate heat generated by high-powered motors and batteries, thus preventing damage to the drone’s components.
- FPV drone enthusiasts should consider carbon fiber frames when purchasing a new drone or upgrading their existing one to achieve optimal performance and durability.
- Carbon fiber frames are available in a range of sizes and configurations, suitable for different types of drones, including racing, freestyle, and long-range drones.
- When purchasing a carbon fiber frame, consider factors such as weight, stiffness, and compatibility with other components to ensure the best performance for your FPV drone.
- Carbon fiber frames may be more expensive than other frame materials, but their long-lasting durability and performance benefits make them a worthwhile investment for serious FPV drone pilots.
- The FPV Project offers a wide range of carbon fiber frames, suitable for all types of FPV drones, ensuring that enthusiasts have access to the latest technology and the best possible flying experience.
