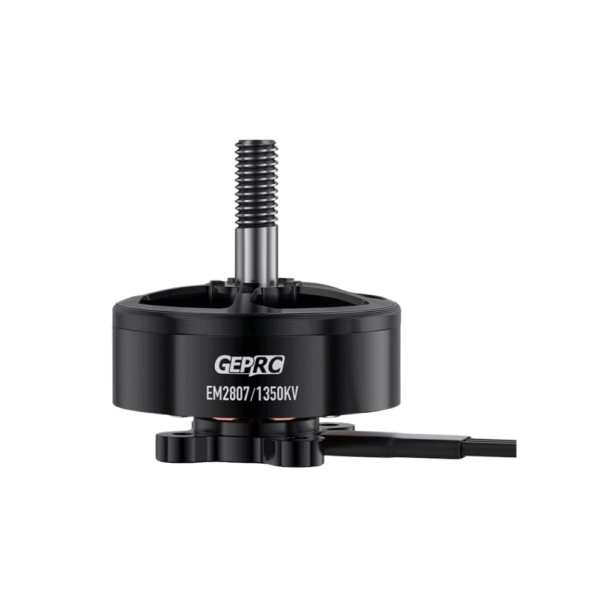

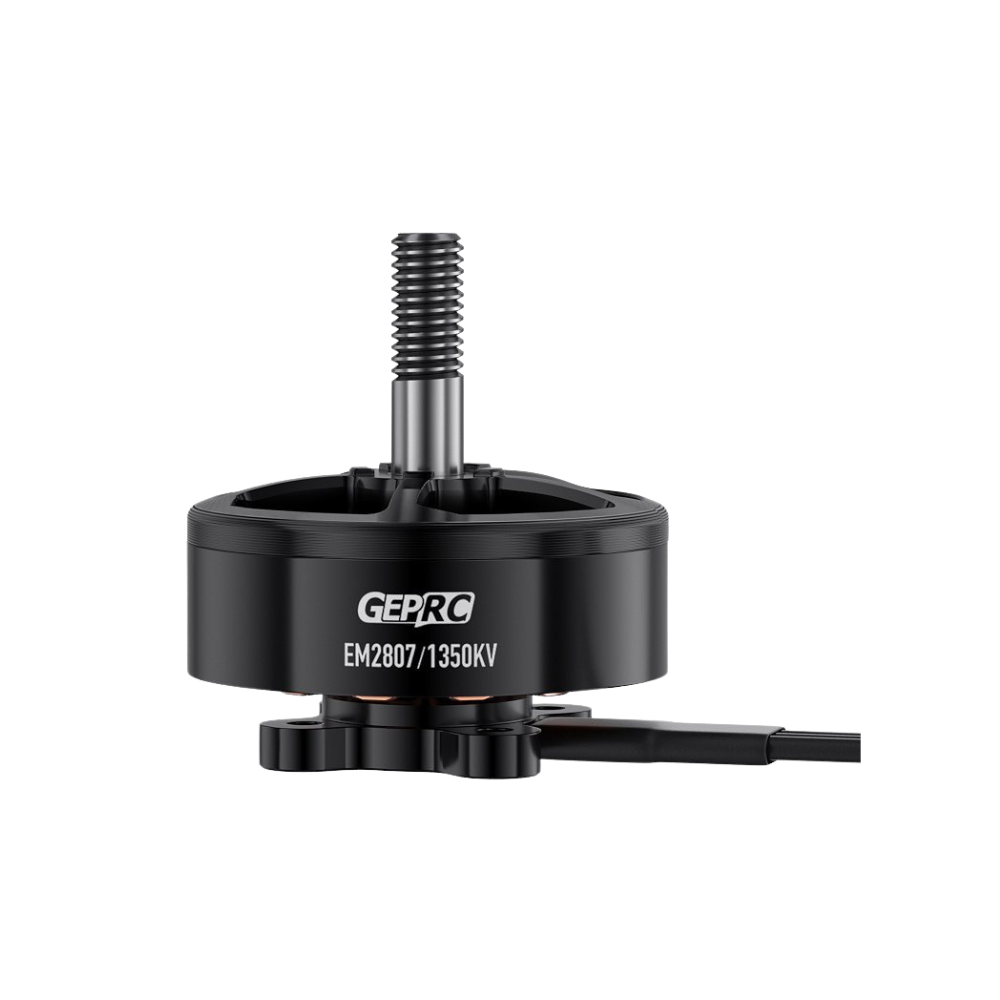

GEPRC EM2807 1350KV Brushless Motor – The Ultimate Powerhouse for Long-Range FPV Drones
Introduction to GEPRC EM2807 1350KV Motor
The GEPRC EM2807 1350KV motor is purpose-built for high-performance, long-range FPV drones, offering unmatched thrust, stability, and flight time efficiency. Designed for 7-inch to 10-inch quadcopters, it strikes the perfect balance between torque and RPM, ensuring smooth cruising and reliable performance across demanding terrains.
Key Features of the GEPRC EM2807 1350KV Motor
1. Precision Engineering and Durable Build
The EM2807 motor boasts a CNC-machined unibell structure, made from 6061-T6 aviation-grade aluminum alloy, offering maximum strength while maintaining a lightweight profile. With high-temperature-resistant N52H magnets and Japanese NSK bearings, this motor is designed to withstand long flights and aggressive maneuvers without compromising smoothness or lifespan.
2. Optimized for 7-10 Inch Propellers
With a 1350KV rating, the EM2807 performs best with 7-inch to 10-inch tri-blade or bi-blade propellers, delivering efficient mid-throttle cruising and high-end torque for climbing and wind resistance. It offers ideal thrust characteristics for cinematic, endurance, and mountain-range explorations.
3. Wide Voltage Compatibility
Capable of running on 6S LiPo batteries, this motor provides exceptional flight time and stability, even under variable load. This makes it ideal for long-range exploration or heavy payload setups like action cameras and GPS modules.
4. High-Quality Components for Peak Efficiency
-
Stator Dimensions: 28mm x 7mm
-
Rotor Design: Open-bottom for improved heat dissipation
-
Windings: High-temperature copper with multi-strand winding for reduced resistance
-
Bearings: Japanese NSK for ultra-smooth rotation
-
Shaft Diameter: 4mm hardened steel for impact resistance

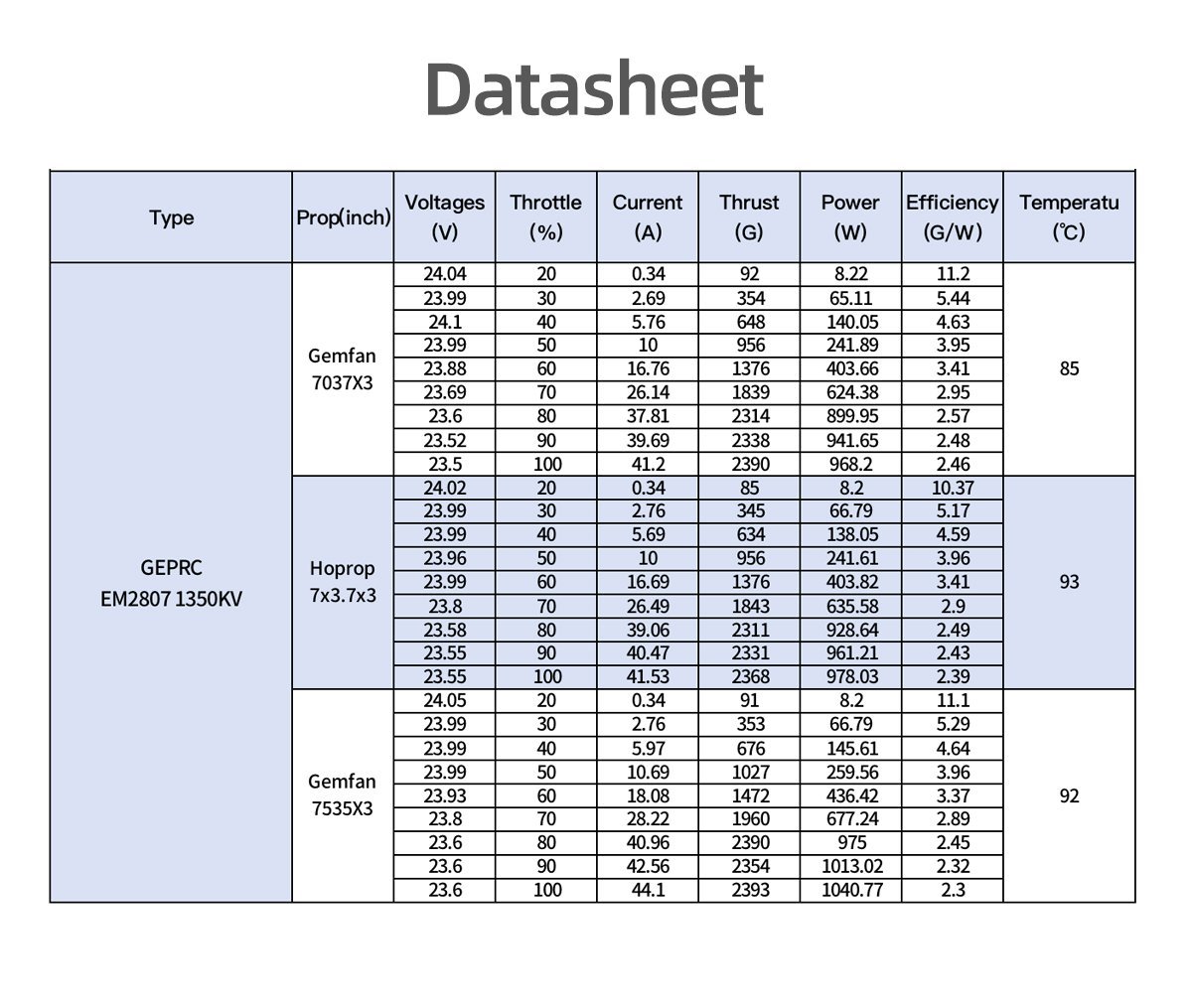

Performance Benchmarks
Note: These figures are based on lab tests and may vary with environmental conditions, ESC tuning, and propeller choice.
Applications and Use Cases
Long-Range FPV Builds
The EM2807 motor is tailor-made for long-range FPV drones requiring extended flight times without sacrificing agility. Whether you’re flying over valleys or dense forests, its efficient torque curve ensures steady flight and low noise, essential for gathering cinematic footage.
Heavy Payload Drones
Thanks to its 4mm shaft and powerful stator size, it easily supports additional gear like:
-
HD action cameras (e.g., GoPro Hero 10)
-
GPS modules
-
Long-range VTX and antennas
-
LED beacons or signal boosters
Cinematic and Freestyle Cruisers
Pair the EM2807 with a soft-tuned flight controller and high-resolution camera for buttery-smooth footage. Even with gentle throttle inputs, the motor responds linearly, delivering professional-grade cinematic motion.
