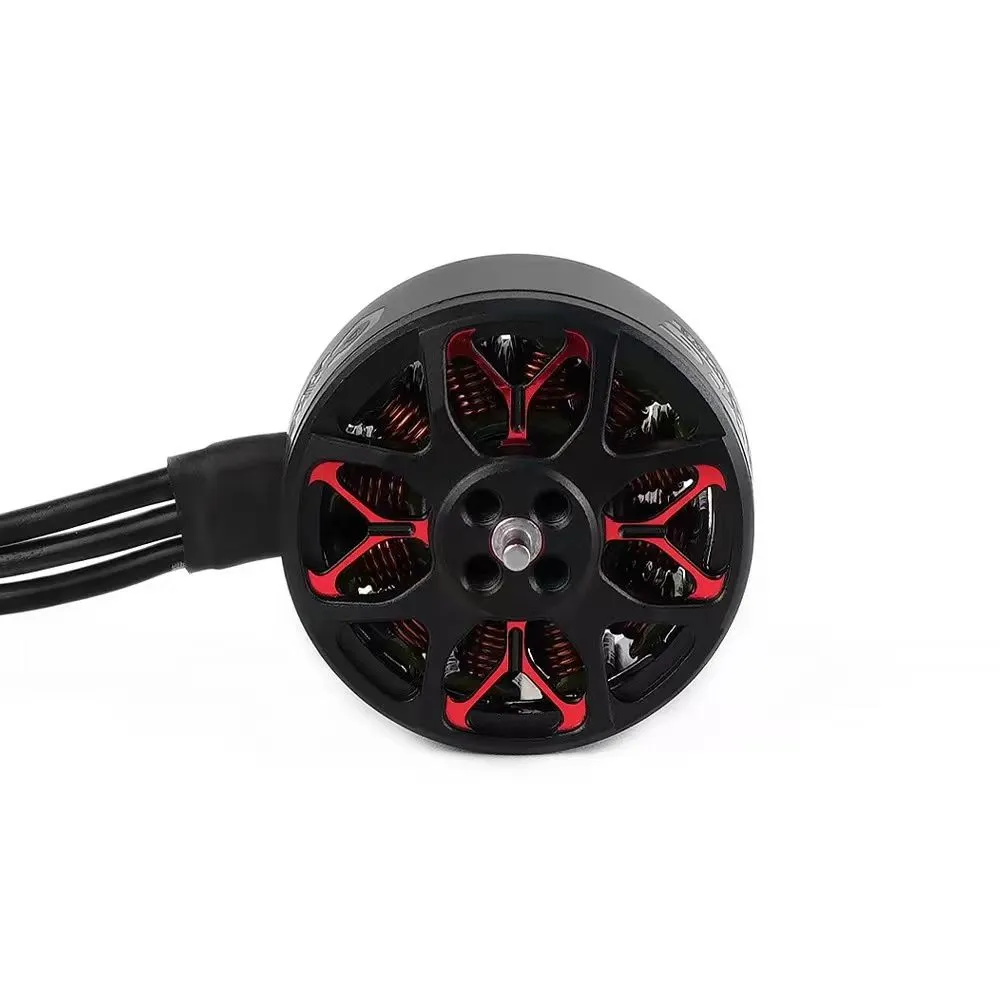

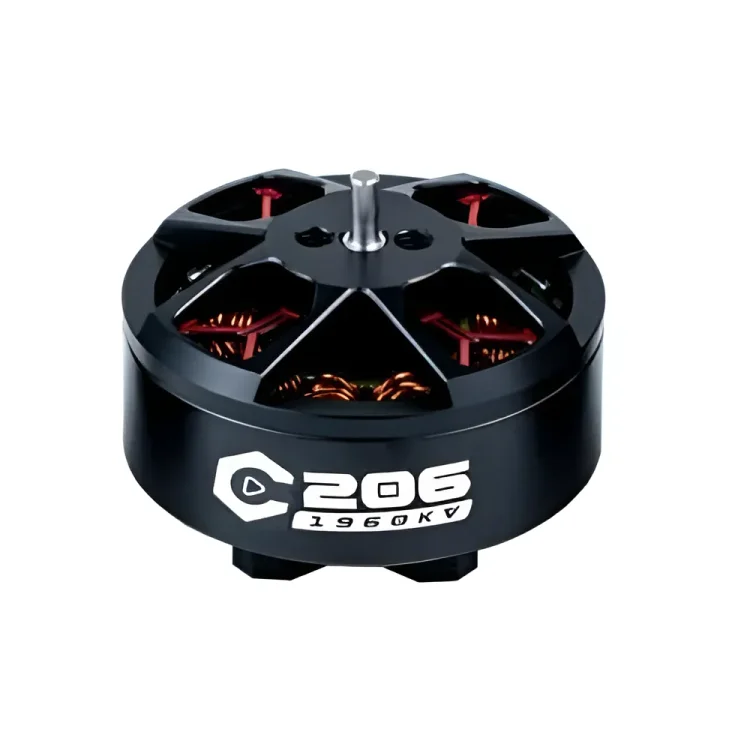

The Axisflying C206 1960KV is a cinematic-grade brushless motor purpose-built for 3.5-inch cinewhoops and C35 frames. Part of Axisflying’s C series, it’s engineered for pilots who fly to create — smooth, reactive, and torquey enough for delicate control during cinematic shots, while staying efficient enough to maximise flight time.
Why choose the C206 1960KV?
Cinematic pilots often get one chance to capture the shot, so smoothness and predictable throttle response matter more than raw speed. The C206’s 12N14P stator structure delivers strong torque with a delicate, linear power curve — giving you the fine control needed for stable, professional-looking footage. Pair it with our AIO flight controllers for a complete cinewhoop build.
This listing is for the 1960KV variant — matched to 3.5-inch cine propellers on 6S power for the best balance of thrust and smoothness.
Key features

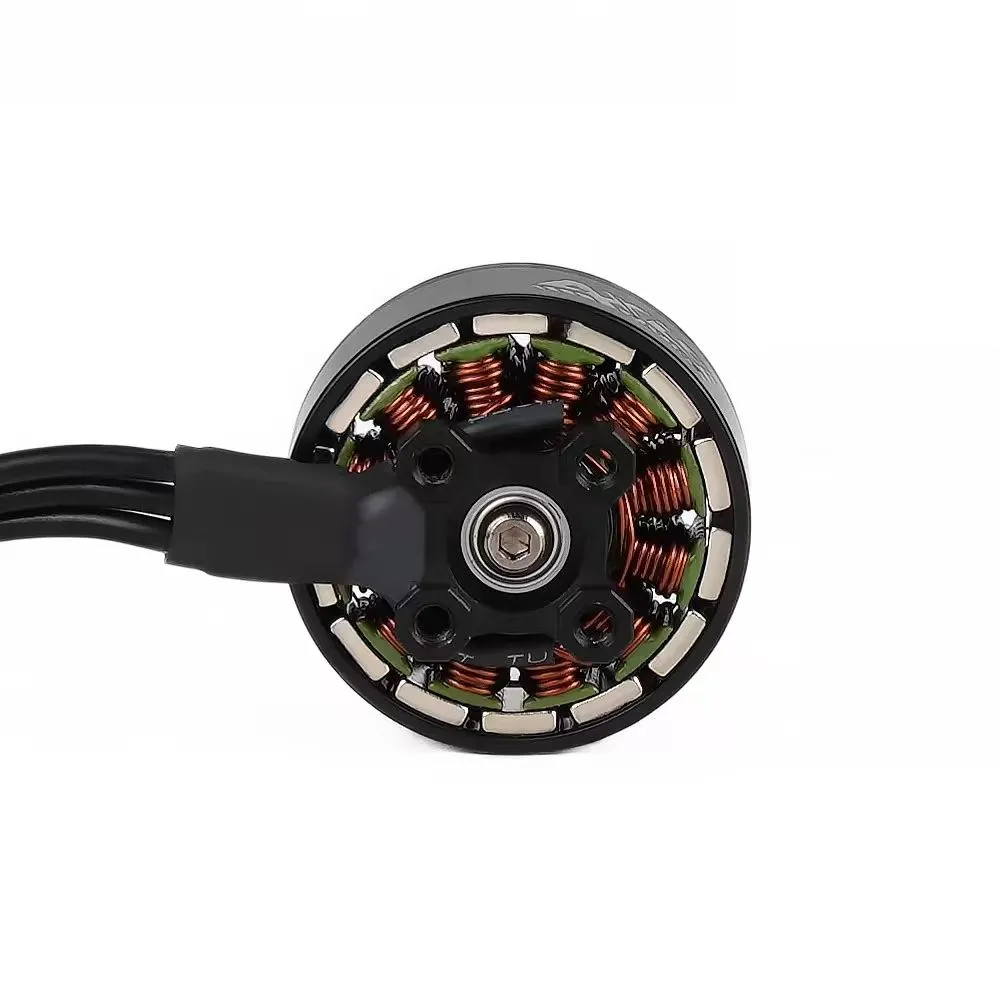

12N14P torque-optimised structure
The 12N14P winding configuration provides strong, controllable torque ideal for cinematic flying — smooth power delivery without the twitchiness of racing-focused motors.

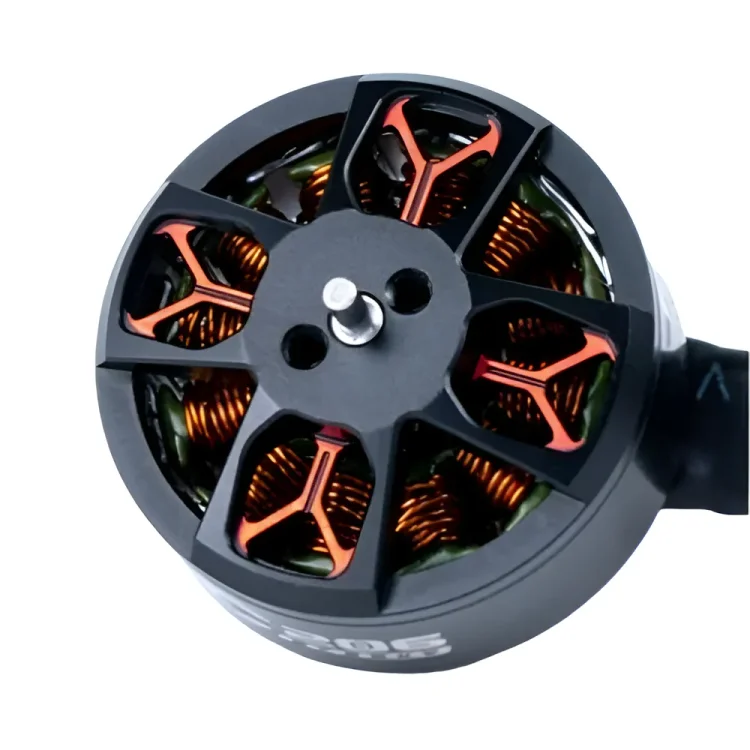

IP53 bearing shield protection
A protective bearing shield rated IP53 improves resistance to dust and light moisture, while also adding crash durability — useful for cinewhoop flying in tight indoor and proximity environments.
Lightweight, GoPro-ready design
At approximately 22g per motor, the C206 keeps total build weight low, leaving more payload capacity for action cameras and FPV camera setups on cinematic builds.
Smooth, linear power output
Designed for stable, professional-grade footage, the C206 delivers consistent thrust through the throttle range — minimising jitter and unwanted motor noise during slow, deliberate cinematic manoeuvres.

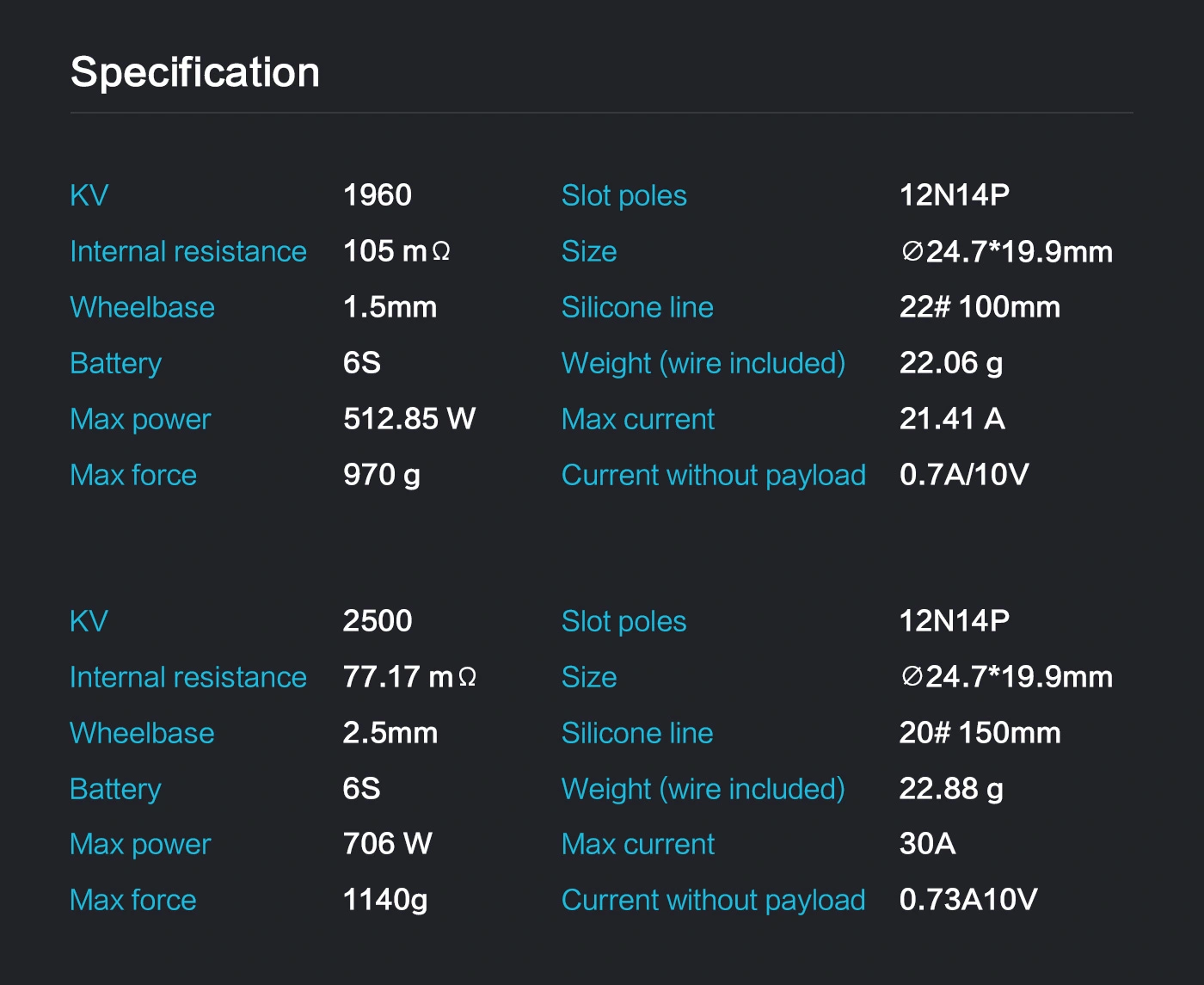

Specifications — 1960KV
| Specification | Detail |
|---|---|
| KV rating | 1960KV |
| Stator | 2006 |
| Configuration | 12N14P |
| Internal resistance | 105mΩ |
| Shaft diameter | 1.5mm |
| Silicone wire | 22AWG, 100mm |

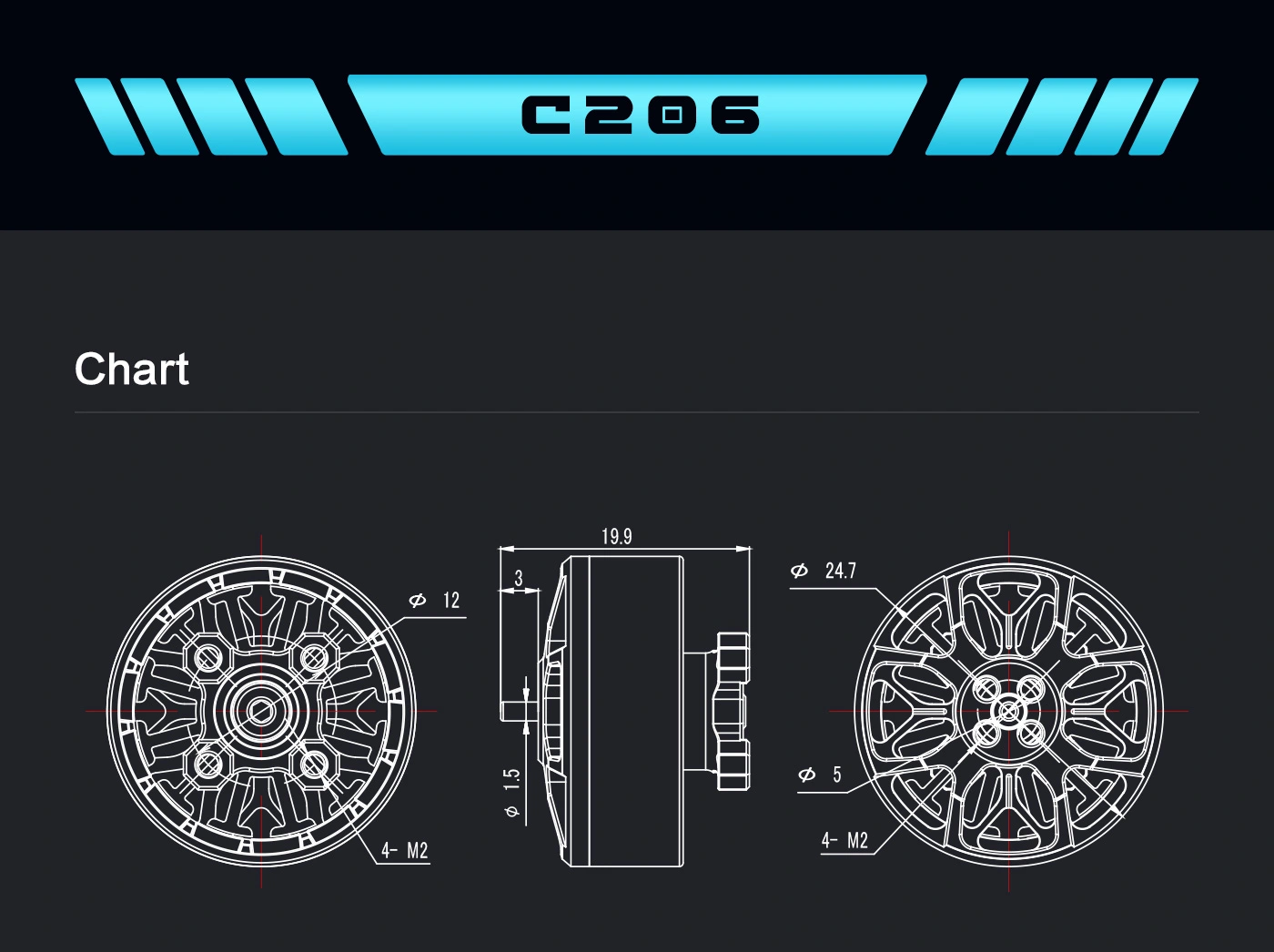

| Size | Φ24.7 x 19.9mm |
| Mounting | 4xM2 |
| Weight (with wire) | ~22.06g |
| Max power | 512.85W |
| Max current | 21.41A |
| Max thrust | ~970g |
| No-load current | 0.7A / 10V |
| Recommended voltage | 6S LiPo |
| Recommended props | GF D90-3P / HQ T90-4P / HQ D90mm x3 |
| Best suited for | 3.5-inch cinewhoop, C35 frame builds |

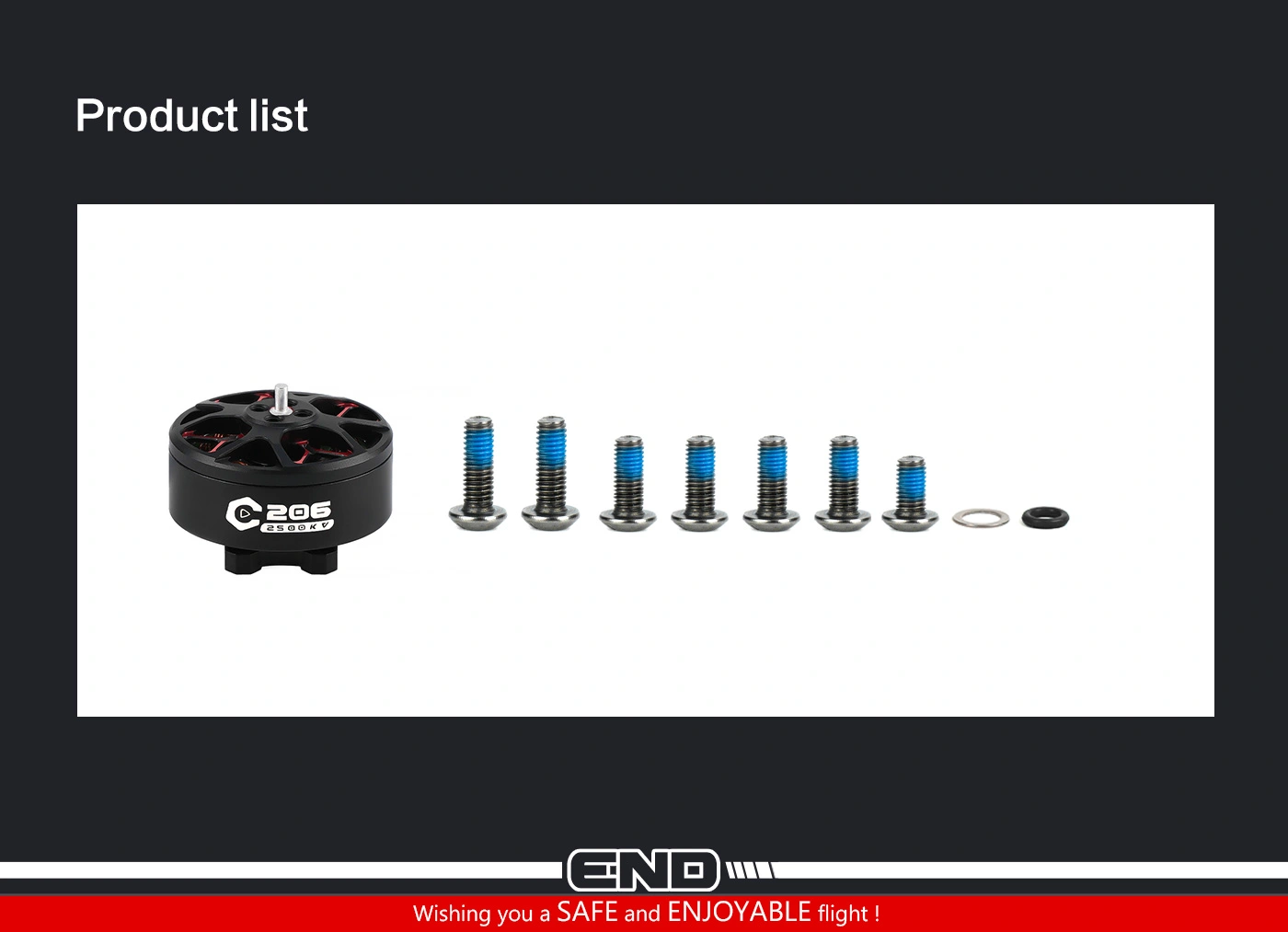

What’s in the box
- 1x Axisflying C206 1960KV brushless motor
- 4x M2x5 mounting screws
- 1x Shaft lock screw
- 1x Washer and lock nut set
Recommended for
- 3.5-inch cinewhoop builds
- C35 frame cinematic drones
- GoPro / action camera FPV rigs
- 6S LiPo power systems
Build compatibility
The C206 1960KV is matched for 3.5-inch cine propellers on 6S LiPo. Pair it with components from our FPV VTX collection for a complete cinewhoop build.
