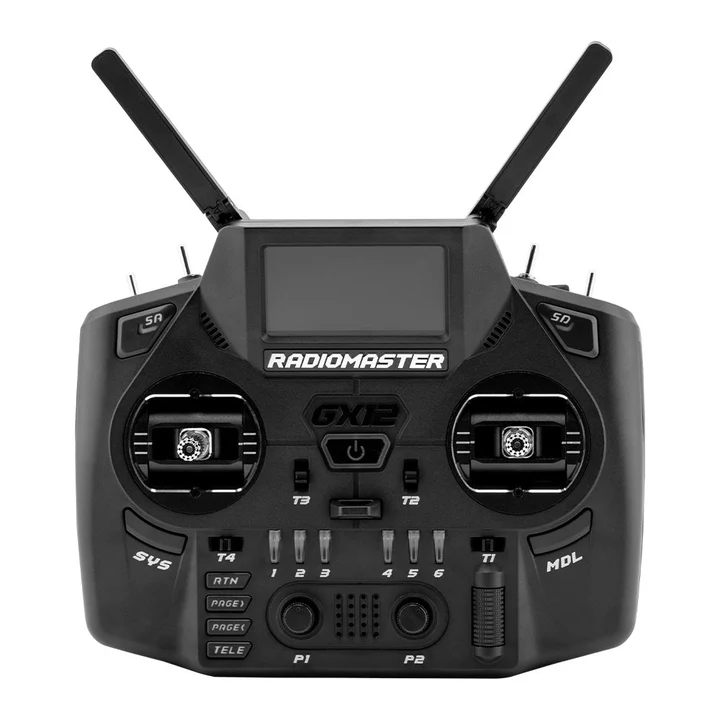

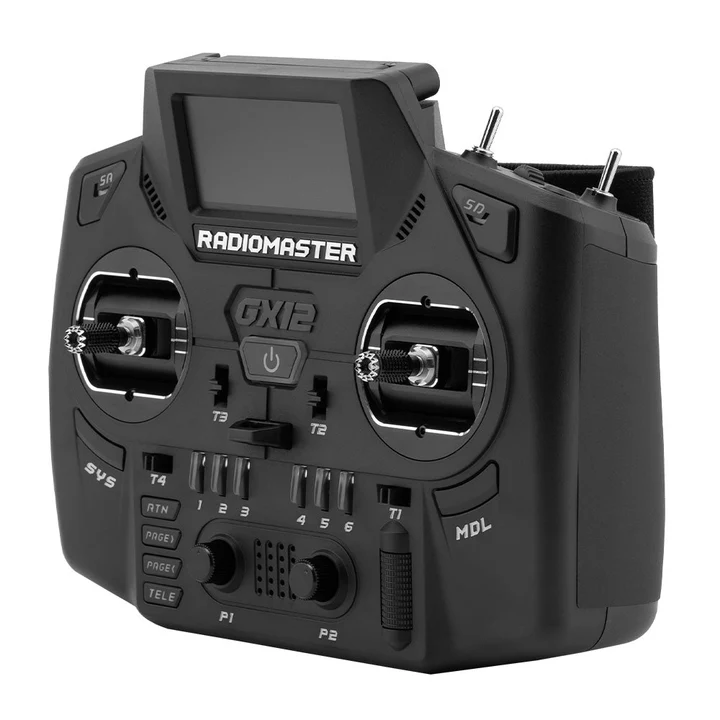

RadioMaster GX12 Dual-Band Gemini-X Radio Controller (M2)

In our continuous commitment to delivering top-tier RC equipment insights, we present an in-depth, authoritative overview of the RadioMaster GX12. This transmitter is engineered to meet—and often exceed—the demands of advanced drone pilots, FPV racers, and serious model aircraft enthusiasts. Below, we dissect its features, performance, use-cases, and how it compares with other options on the market.

Launch Video

Features

• Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters: Experience unmatched range and reliability with ExpressLRS Gemini Xrossband (Gem-X) dual-band transmission capabilities.
• Integrated Folding Dual-Band Antennas: Sleek design with foldable antennas for easy transport and storage; Compatible with both 2.4GHz and Sub-G 900MHz frequencies.
• GX01 Gimbals -Fully CNC Aluminum 3D Digital Hall Sensor Gimbals: Precision-engineered aluminum gimbals with 3D Hall sensors for superior control and durability.
• 1000Hz Digital Gimbals with EdgeTX Sync: Achieve exceptional precision and responsiveness with high-frequency digital gimbals featuring EdgeTX sync.
• Folding Gimbal Sticks: Foldable gimbal sticks for convenient storage and transport.
• Removable Switch Panels: Customize your setup with our modular switch panels, allowing for easy switch changes to suit your preferences.
• DIY SMA Ports: Enjoy flexibility in antenna installation with SMA port integration.
• OLED Display: Crisp and clear OLED with high contrast display.
• Internal Storage: 512MB of integrated high-speed flash storage—no need for TF cards!
• USB-C Connectivity: The GX12 features a single USB-C port that manages smart balance charging, SIM connectivity,  firmware updates and direct access to the integrated high speed flash memory.
• Integration of programmable 6-Position Switch : Individually programmable 6-position switches offer versatile control options tailored to your unique setup.
• Programmable RGB Indicators on 6-Position and SA/SD Switches: Customizable RGB lights provide visual feedback on switch status.
• Powerful Efficient Cooling System: With dual 1-watt transmitters, the GX12 boasts serious power, featuring an advanced cooling system to keep your radio cool even on the hottest days.
• PCB Nano coating: Engineered for the Extremes! The GX12 is built to thrive in demanding environments. With thicker plastics and a hydrophobic PCB coating, this controller is designed to withstand hot, cold, dry, and humid conditions. Count on the GX12 to deliver, no matter where your adventures take you!

Specifications

• Item: GX12 Radio
• Color: Black
• Size: 183*148*78mm
• Weight: 573g
• Frequency: 2.400GHz and Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Antenna: Dual folding 2.4GHz/ Sub-G 900MHz Omni directional
• RF:  (Dual 1,000mW | Dual band XROSSBAND ELRS)
• Voltage Range: 6.6 – 8.4V DC
• Current: 390mA – 1000mA (Depending on Rf output)
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
• Charging: 2S Smart Balance Charging
• Connectivity: USB-C
• Display: 128*64 Monochrome OLED display
• Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
• Gimbal Sticks: 3mm
• External Module: Nano / Crossfire compatible
• Upgrade Method: USB / EdgeTX Companion PC software
• Memory: 512Mb Integrated Flash

Introducing the GX12 Radio Controller, a groundbreaking fusion of cutting-edge technology from ExpressLRS and EdgeTX. The GX12 is the first radio to feature ExpressLRS Gemini-XROSSBAND (GEM-X), allowing for simultaneous transmission on both 2.4GHz and 915MHz, ensuring unmatched interference rejection.

Designed with integrated folding dual-band antennas, the GX12 supports all current 2.4GHz and 900MHz ExpressLRS receivers, as well as the new generation of Gemini Xrossband (Gem-X) receivers, providing extended range and exceptional performance. Elevate your flying experience with the ultimate in radio control innovation!

Folding gimbal sticks ensure compact storage and easy transport. With all-new 1000Hz digital aluminum gimbals, the GX12 delivers unparalleled resolution, precision, and responsiveness in an EdgeTX radio.

*Please note that the GX12 ships with the low tension gimbal spring installed.

The GX12 redefines your RC experience with remarkable flexibility and cutting-edge features. Removable switch panels allow for personalized setups using the included modular panel system, while DIY SMA ports let you choose the perfect antennas for your needs. Featuring 512MB of internal flash storage, the need for TF cards is eliminated, and a single USB-C port simplifies both charging and data/simulator connectivity. The GX12 also includes individually programmable 6-position buttons and SA/SD switches, along with customizable RGB indicators to enhance both functionality and style.

The controller is designed with both a standard, accommodating your power requirements to maximize flight time. Whether you’re a hobbyist or a professional, the GX12 Radio Controller is your gateway to the future of RC. Embrace true innovation and elevate your flying experience with the GX12!

Gimbal Adjustment

Dimensions

Table of Contents

1. Overview & Key Innovations

2. Design & Build Quality

3. RF System: Dual-Band ExpressLRS Gemini-X

4. Controls, Gimbals & Ergonomics

5. Firmware & Ecosystem: EdgeTX + Expandability

6. Compatibility, Battery & Connectivity

7. Use-Case Scenarios: FPV, Fixed-Wing, Long-Range

8. Strengths vs. Limitations

9. Why You Should Consider the GX12

10. Quick Setup & Best Practices

11. Conclusion

1. Overview & Key Innovations {#overview}

The RadioMaster GX12 stands out in the transmitter market for delivering advanced features once reserved for top-tier models—at a more accessible price point. Notably:

• Internal dual-band Gemini XrossBand (Gem-X) RF module supporting both 2.4 GHz and Sub-G 900 MHz frequencies. RadioMaster RC+2Oscar Liang+2

• CNC aluminium 3D Hall sensor gimbals (GX01) with 1000 Hz update rate and foldable sticks for compact transport. Oscar Liang+1

• 512 MB internal high-speed flash storage replacing traditional micro-SD need. RadioMaster RC+1

• USB-C port that handles charging, data connection, firmware updates—all from one interface. RadioMaster RC+1

• Integrated cooling system, hydrophobic PCB coating, modular switch panels—all signifying robust design for demanding use. RadioMaster RC+1

These features position the GX12 as a serious tool for pilots who demand reliability, flexibility and performance.

2. Design & Build Quality {#design}

Dimensions & Weight

• 183 × 148 × 78 mm footprint. RadioMaster RC

• Official weight: ~573 g (without batteries) as per spec sheets. RadioMaster RC+1

• In real-world testing, with typical two 18650 cells installed, weight came around ~670 g. Oscar Liang

Materials & Construction

The moulded plastic shell offers durability, and the inclusion of thicker plastics plus hydrophobic nano‐coating on PCB protect against harsh environments. RadioMaster RC
CNC-machined gimbals also help elevate build quality.

Transport & Portability Features

• Foldable gimbal sticks reduce size for transport. Oscar Liang+1

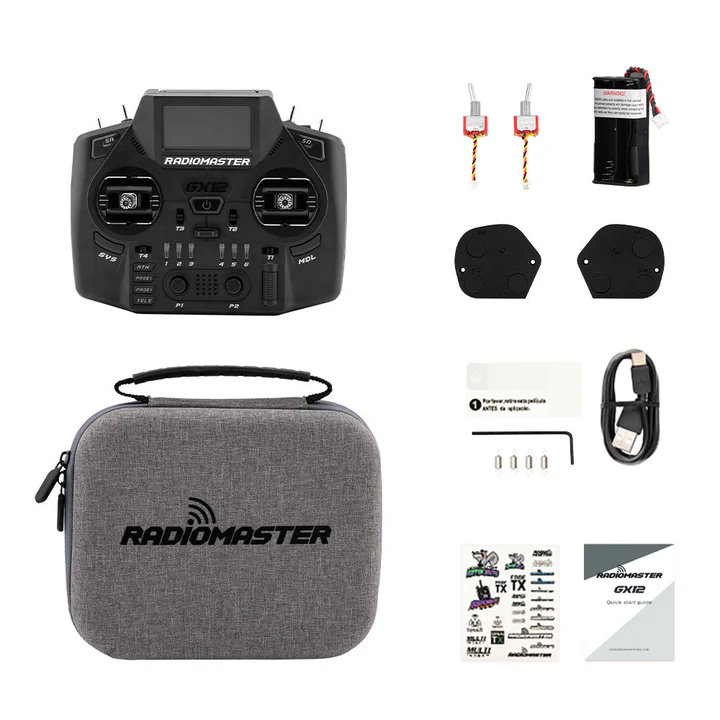

• Integrated carrying case in the box. getfpv.com

• Modular shoulder panels let you tailor switch layout to your preference. Pyrodrone

Ergonomics

The design considers both “thumber” and “pincher” styles of control. The textured grip and balanced weight help, though some reviewers note the top heaviness with strap use. Oscar Liang
Switch placement is compact; while excellent for minimizing size, some pilots feel a slight trade-off in reach during intense moments. Oscar Liang

3. RF System: Dual-Band ExpressLRS Gemini-X {#rf-system}

One of the most distinguishing features of the GX12 is its RF subsystem.

What is Dual-Band / XrossBand?

Internally the GX12 houses a Gemini XrossBand ExpressLRS (ELRS) module that can simultaneously transmit on 2.4 GHz and Sub-G 900 MHz (or 868 MHz depending on region) for redundancy and extended range. RadioMaster RC+1
According to detailed specs, the transmit module supports dual 1 W output (where region allows). Rotorama+1

Why this matters

• Improved interference rejection: If one band experiences signal degradation, the other can maintain link integrity.

• Longer effective range in challenging RF environments (dense trees, urban, metal obstacles).

• Future-proofing: As receivers evolve to dual-band, you’re already covered.

Antennas & External Module Support

• Comes with dual‐band folding antennas (2.4GHz & Sub-G 900 MHz) built in. Oscar Liang

• DIY SMA ports allow you to attach higher-gain or dedicated antennas if desired. RadioMaster RC

• External module bay supports Nano / Crossfire modules for other protocols. RadioMaster RC

Important Considerations

• Some regions (e.g., EU) may have regulatory limitations because of dual-band or 1 W output usage. rc-soar.blogspot.com

• While dual-band is a major advantage, many pilots flying line-of-sight in open fields may not need the dual-band feature. But having it gives peace of mind.

4. Controls, Gimbals & Ergonomics {#controls}

Gimbals

• GX01 aluminium “3D digital” Hall effect gimbals, with 1000 Hz update rate at the stick level. RadioMaster RC+1

• Gimbal sticks are foldable for travel convenience. Oscar Liang

• Stick ends use M3 threads (3 mm) enabling aftermarket upgrades. Oscar Liang

Switches & Layout

• Modular removable switch panels: you can replace sliders, 3-pos switches, momentary buttons to suit your preference. Oscar Liang+1

• 6-position flight-mode switch with programmable RGB backlighting. RadioMaster RC

• Additional SA/SD switches with RGB indicators. RadioMaster RC

Display & Interface

• 128×64 monochrome OLED display: high contrast, efficient battery usage. RadioMaster RC

• USB-C port, single cable for charging and data. Oscar Liang

• Interface is mature and utilises the established firmware environment (see next section).

Ergonomic Feedback

• Pilots appreciate the strong grip and comfortable layout for both thumb and pinch styles. Oscar Liang

• Some report slightly tighter switch placement (due to compact size) which may take adjustment. amainhobbies.com

5. Firmware & Ecosystem: EdgeTX + Expandability {#firmware}

EdgeTX Support

The GX12 ships with the open-source EdgeTX firmware, which gives you advanced features, customisable models, telemetry handling, Lua scripts, voice alerts and more. Oscar Liang+1

Internal Storage

A key convenience: 512 MB internal flash storage means no TF/micro SD card is required for firmware, models, logs. RadioMaster RC

External Module Support

If you prefer another RF protocol (e.g., TBS Crossfire), the GX12 supports a Nano module bay. This makes it extremely flexible and future-proof. RadioMaster RC

Simulator Support

Thanks to USB-C and firmware compatibility, the GX12 can be used with FPV simulators on PC/Mac seamlessly (often appearing as a “TX16S” style controller). Oscar Liang

Upgradability & Community

EdgeTX has an active community and frequent updates. The internal dual-band module firmware is also upgradeable. Having modular switches and a DIY-friendly design adds to longevity.

6. Compatibility, Battery & Connectivity {#compatibility}

Channel & Protocol Support

• Max 16 channels (receiver‐dependent) via internal or external modules. RadioMaster RC

• Supports ExpressLRS 2.4 GHz / Sub-G 900 MHz protocols internally. RadioMaster RC+1

Power & Battery Options

• Operating voltage: 6.6 – 8.4 V DC. RadioMaster RC

• Accepts 2S LiPo (7.4 V) or two 3.7 V 18650 Li-ion cells / 21700 cells (battery not included). RadioMaster RC+1

• USB-C charging and data. getfpv.com

Connectivity

• One USB-C port covers charging, firmware update, simulator input, data access. Oscar Liang

• Optional SMA‐port antenna access for custom installations. RadioMaster RC

Additional Notes

• Internal cooling fan for the RF module enhances reliability during high-power use. RadioMaster RC

• Real-world battery life: estimates suggest ~6 hours at low transmit power using two 18650 cells, decreasing as output power increases. Oscar Liang

7. Use-Case Scenarios: FPV, Fixed-Wing, Long-Range {#use-cases}

FPV Freestyle & Racing

For drone pilots flying acro or racing, the GX12 offers compact size (foldable sticks/antennas), fast gimbals, high update rate, and dual-band link for maximal reliability in crowded RF zones.
Its 16-channel capability supports quadgear plus camera gimbals if needed.

Fixed-Wing & Glider Pilots

Pilots of fixed wing / slope / DLG aircraft will appreciate the modular switch layout (multiple 3-pos, sliders), the long-range dual-band RF for canopy penetration and remote fields, and the ability for fine-tuned control surfaces.

Long-Range / Digital Video / Professional Use

Because of the dual-band internal module and high output potential, the GX12 becomes a viable option for professional UAV work or long-range FPV where signal reliability is vital—trees, metal structures or interference-heavy zones.

8. Strengths vs. Limitations {#strengths-weaknesses}

Strengths

• Cutting-edge internal dual-band RF module offers industry-leading performance.

• Gimbals and controls deliver high feel quality while maintaining portability.

• Rich feature set (512 MB storage, USB-C, cooling, modular panels) rare at this price.

• Firmware ecosystem is mature, flexible and community-driven.

Limitations / Considerations

• The compact size introduces trade-offs in stick travel and ergonomics for very large hands. As one review states:

  “While the GX12 excels in many areas, some design compromises might deter certain users.” rc-soar.blogspot.com

• Weight with batteries (~670 g) is heavier than some similarly-sized alternatives. Oscar Liang

• Dual-band with 1 W output may be overkill (and regulated) for pilots flying basic setups in open fields.

• In some regions (e.g., EU) the CE certification situation is flagged; users should check local compliance. TekRC EU

9. Why You Should Consider the GX12 {#why}

If you’re looking for a single transmitter that covers nearly every scenario—from casual foam flying through to long-range professional drone use—the GX12 stands alone in combining portability, power and flexibility.
Its dual-band RF ensures future-readiness. The modular nature means you can tailor it to your workflow. And for the price point, you’re getting technology many high-end models charge significantly more for.

Read More About Lipo Batteries by clicking the link below:
https://oscarliang.com/fpv-drone-guide/

Checkout our Frames Collection by clicking the link below:
https://thefpvproject.com/product-category/frames/

1S = 1 cell  = 3.7V
2S = 2 cells = 7.4V
3S = 3 cells = 11.1V
4S = 4 cells = 14.8V
5S = 5 cells = 18.5V
6S = 6 cells = 22.2V

For example, we call a 14.8V battery a “4-cell” or “4S” battery.

LiPo battery is designed to operate within a safe voltage range, from 3V to 4.2V. Discharging below 3V could cause irreversible performance loss and even damage to the battery. Overcharging above 4.2V could be dangerous and eventually cause a fire.

However, it’s advisable to stop discharging when it reaches 3.5V for battery health reasons. For example for a 3S Lipo, the max voltage is 12.6V, and you should land when the voltage reaches 10.5V (at 3.5V per cell).
