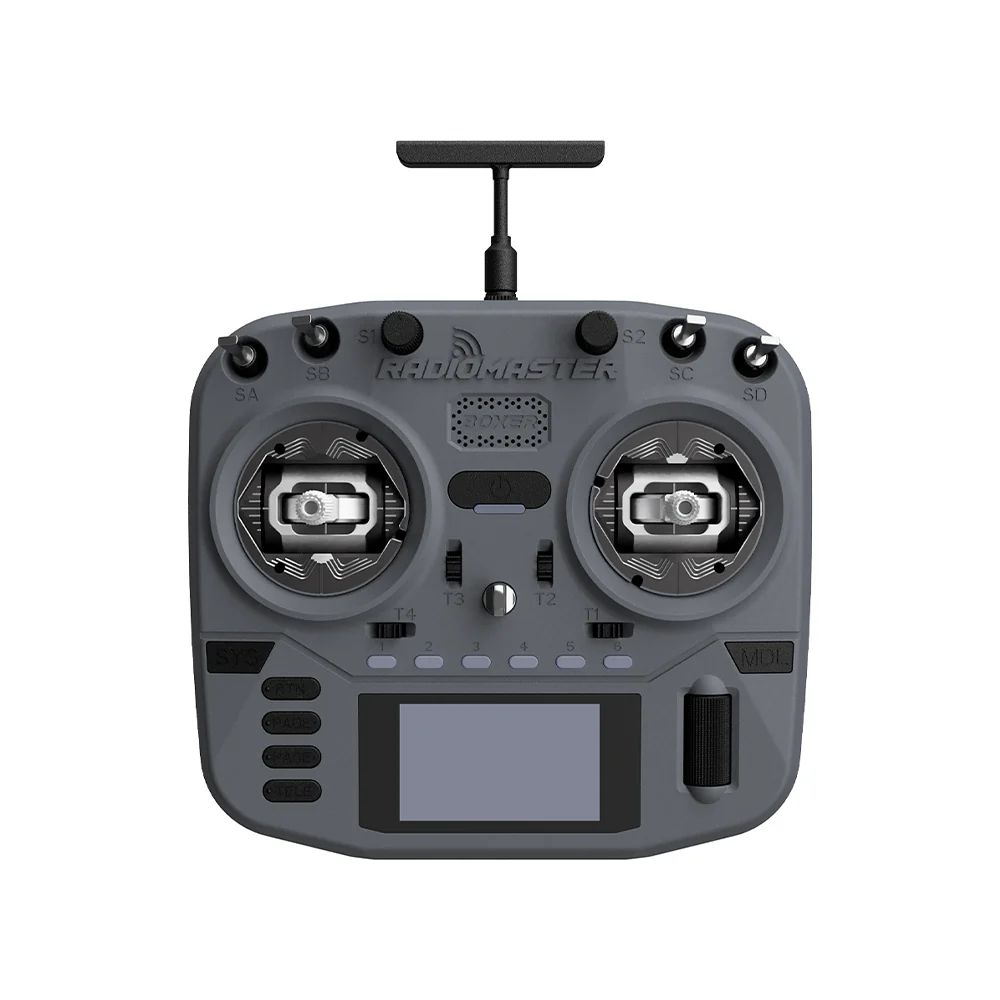

Radiomaster Boxer Crush Edition – The Compact Powerhouse for Serious FPV Pilots

In the world of FPV radio systems, few names resonate as strongly as Radiomaster. Known for innovation, quality, and pilot-centric designs, their Boxer Crush Edition brings a fresh burst of bold styling and elite functionality to the beloved Boxer lineup. Combining ergonomic brilliance with uncompromising performance, this controller is crafted for racers, freestyle fliers, and long-range enthusiasts alike.

Launch Video

Features

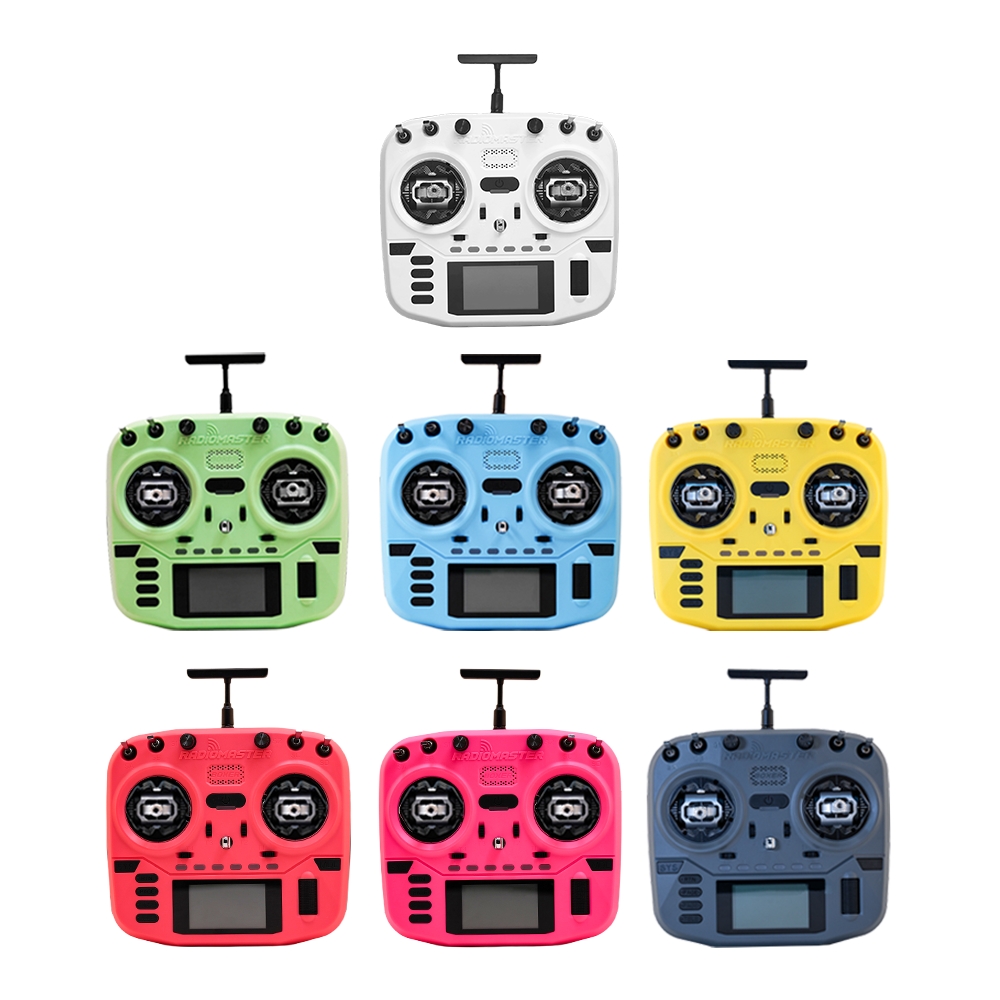

• Optional colors – Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
• CNC Aluminum AG01 Hall-effect Gimbal
• Available with built-in ExpressLRS Backpack
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ExpressLRS module capable of 1,000Hz refresh rate
• Adjustable ExpressLRS RF output
• QC3.0 fast charging support 2.0A MAX
• Compact design with excellent ergonomics
• New low-profile latching SE switch and momentary SF switch
• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Standard JR module compartment
• Internal module cooling fan built-in
• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access
• Adjustable and Removable T-shape Antenna
• Industry first fabric handle for improved portability
• Changeable, ergonomic grips
• Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
• External module power slots in battery cover
• RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications

• Item: Boxer Crush Radio
• Color:  Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
• Size: 235*178*77mm
• Weight: 617.1g
• Frequency: 2.400GHz-2.480GHz
• Internal RF: ExpressLRS 2.4GHz
• Supported protocols: Module dependent
• Cooling fan: Built-in
• Voltage Range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Display: 128*64 Monochrome LCD display
• Gimbal: AG01 CNC Hall Gimbal
• External module: JR / FrSKY / Crossfire compatible
• Upgrade Method: USB / SD card & EdgeTX Companion PC software

EdgeTX Operating System and ExpressLRS RF System Pre-installed

Preinstalled with EdgeTX and ExpressLRS, the BOXER Crush Radio has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

Associated Products

• Boxer Radio Controller
• Boxer Max Radio Controller
• Boxer Radio Transparent Version
• 2S 7.4V 6200mAh Lipo Battery
• AG01 CNC Hall Gimbal Sets New Colors

Size

Package Includes

• 1 * Boxer Crush Radio
• 1 * Signature Carry Case
• 1 * T Antenna
• 1 * USB-C Cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen Key
• 2 * M4*4 Screws
• 4 * Low Tension Springs
• 1 * 18650 Battery Tray
• 1 * Stickers
• 1 * Manual

Read More About Lipo Batteries by clicking the link below:
https://oscarliang.com/fpv-drone-guide/

Checkout our Frames Collection by clicking the link below:
https://thefpvproject.com/product-category/frames/

1S = 1 cell  = 3.7V
2S = 2 cells = 7.4V
3S = 3 cells = 11.1V
4S = 4 cells = 14.8V
5S = 5 cells = 18.5V
6S = 6 cells = 22.2V

For example, we call a 14.8V battery a “4-cell” or “4S” battery.

LiPo battery is designed to operate within a safe voltage range, from 3V to 4.2V. Discharging below 3V could cause irreversible performance loss and even damage to the battery. Overcharging above 4.2V could be dangerous and eventually cause a fire.

However, it’s advisable to stop discharging when it reaches 3.5V for battery health reasons. For example for a 3S Lipo, the max voltage is 12.6V, and you should land when the voltage reaches 10.5V (at 3.5V per cell).
