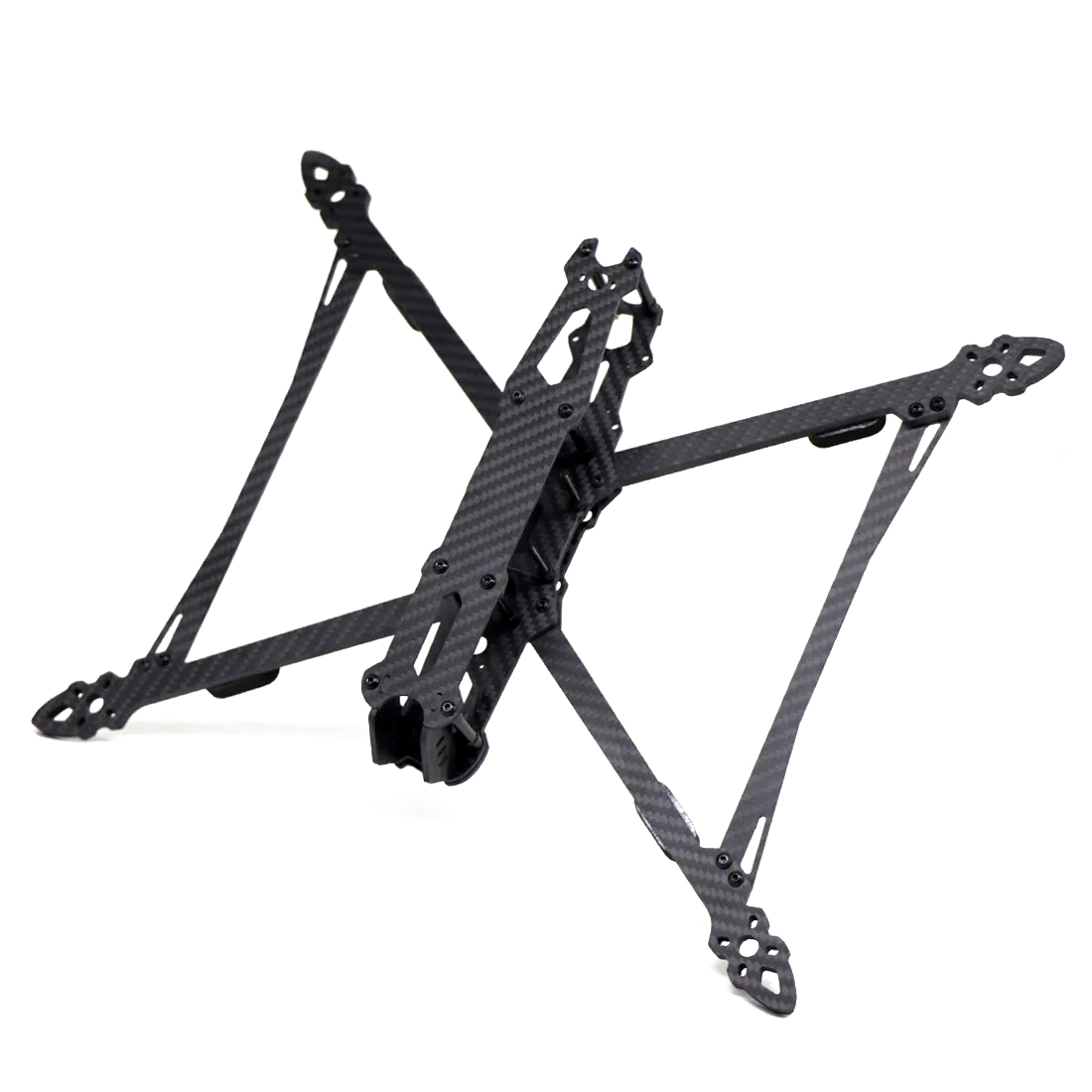

Mark4 V2 10-Inch Carbon Fiber FPV Drone Frame Kit – Ultimate Airborne Precision for Long-Range Builds
Precision-Engineered for High-Performance FPV Missions
The Mark4 V2 10-Inch Carbon Fiber Frame Kit is a next-generation upgrade engineered specifically for elite FPV pilots and long-range professionals. Every angle, hole, and contour of this frame is crafted with aerial dominance in mind. Designed for 10-inch propellers and long-range Li-ion or LiPo builds, this frame pushes the boundaries of stability, endurance, and payload capacity.
Robust Carbon Fiber Build for Tactical Strength
Constructed from premium 3K Toray carbon fiber, the Mark4 V2 10 frame provides exceptional rigidity while minimizing weight. The 5mm thick arms ensure structural integrity under high motor torque, while 2.5mm top and bottom plates guarantee resistance against crash damage and mid-air flex.

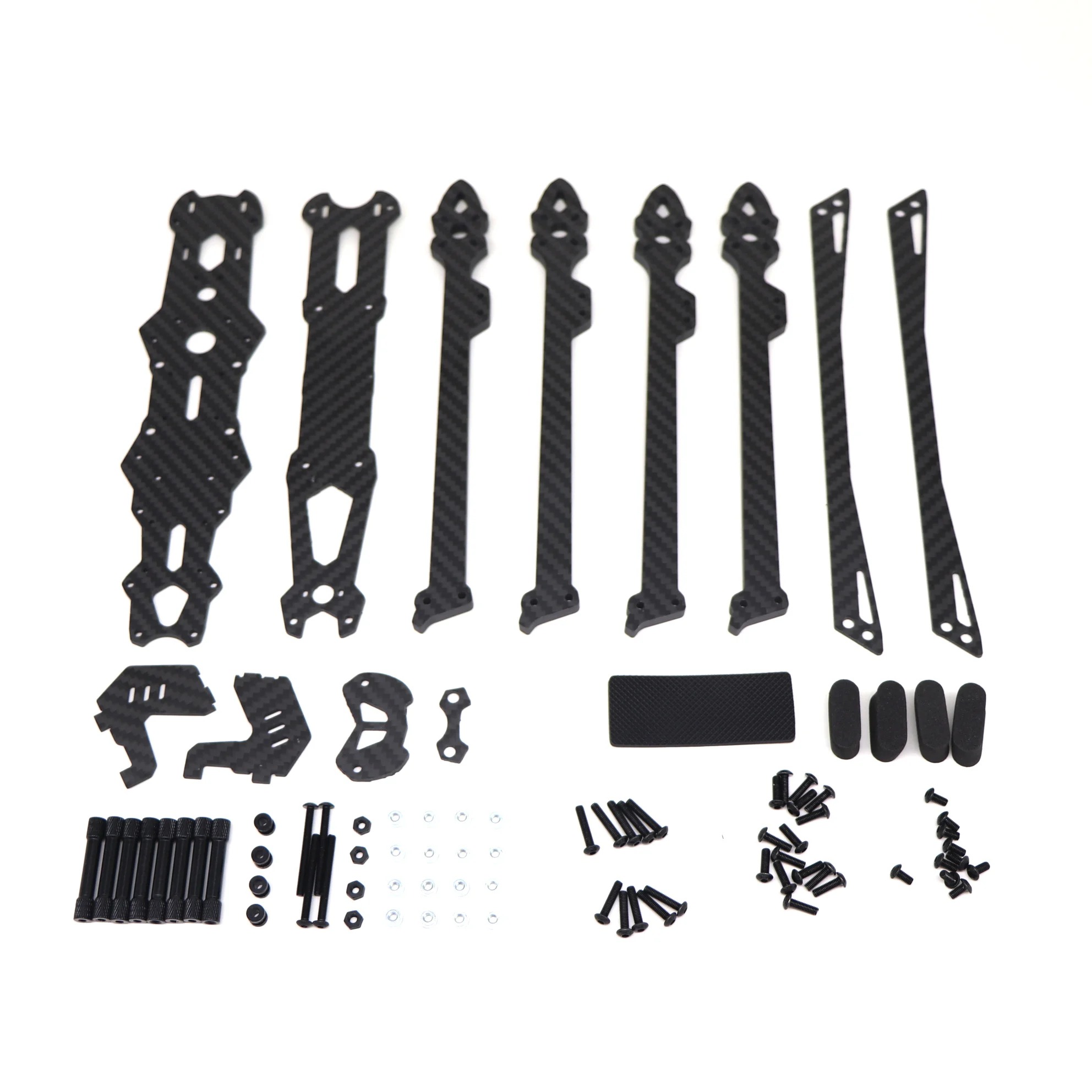

Each CNC-cut carbon fiber component is chamfered to prevent wire cuts and motor wire wear during long missions—resulting in longevity and professional finish.
Features:
- Made of Carbon Fiber, lightweight, but very strong. Designed for long-range fpv but is also great for drones.
- Easy to Assemble: Replaceable arm for easy maintenance, suitable for both beginners and senior players.
- Drone Frame has a stylish appearance and stands out from other frames on the market.
- Quad Frame is suitable for both beginners and experienced users, achieving a balance between performance and sturdiness.
- The 2.5mm frame arm thickness design, makes the more flexible and stable.
Specs at a Glance
| Feature | Specification |
|---|---|
| Frame Wheelbase | 450mm (Diagonal Motor-to-Motor Distance) |
| Arm Thickness | 5mm |
| Top Plate | 2.5mm Carbon Fiber |
| Bottom Plate | 2.5mm Carbon Fiber |
| Stack Mounting | 30.5×30.5mm (M3) Front & Rear |
| VTX Mounting | 20x20mm (M3) and 30.5×30.5mm (M3) |
| Camera Compatibility | Micro/Standard (19mm/22mm) |
| Max Propeller Size | 10-Inch |
| Weight (without hardware) | ~155g |
| Motor Mounting Pattern | 16x16mm / 19x19mm |
Long-Range Flight Ready

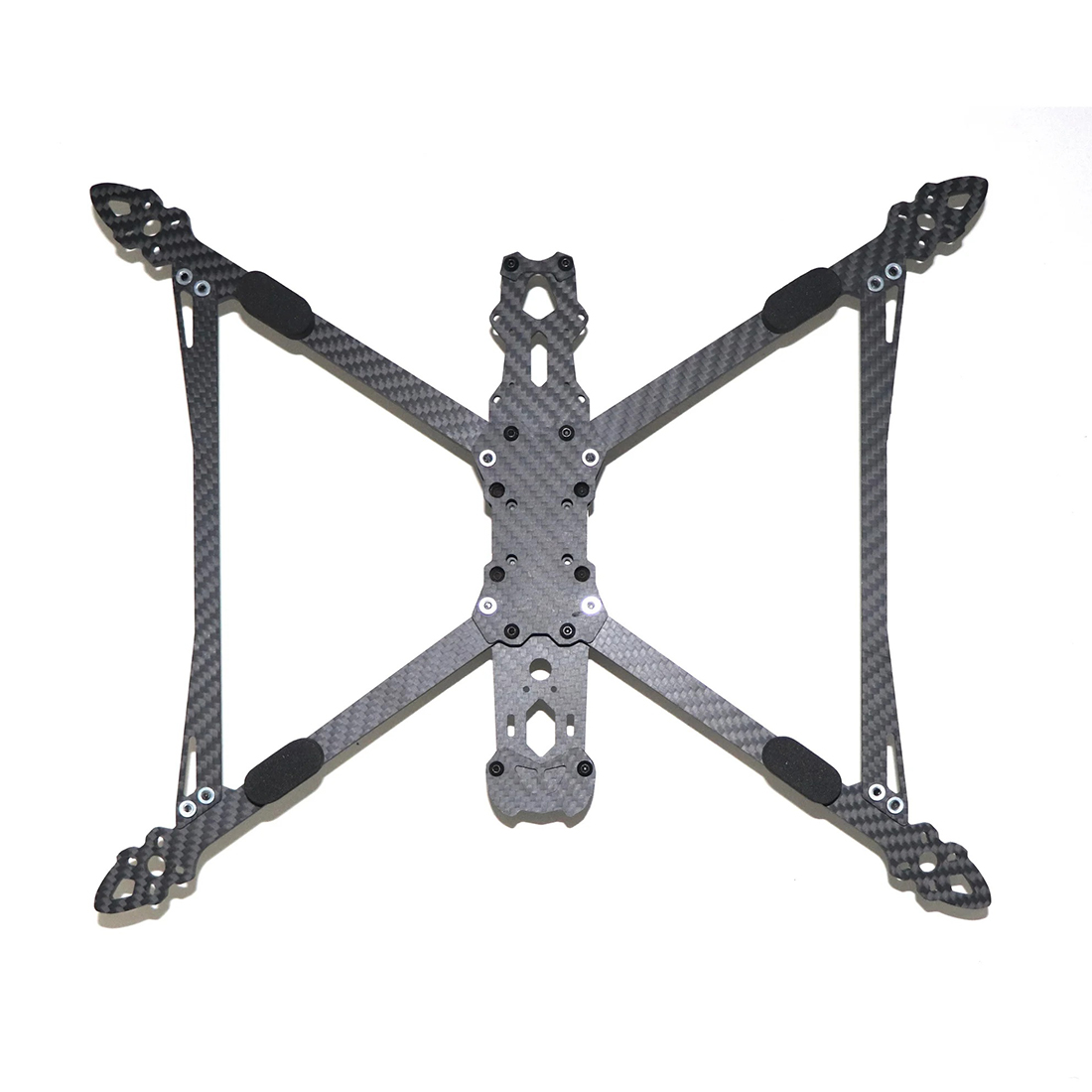

The Mark4 V2 10 is designed for extended range and high-efficiency flights. The stretched-X layout with widened arm spacing allows for optimal airflow and reduced propwash, critical for precise control at high altitudes or during low-throttle cruising. The frame’s geometry supports long-range GPS modules, INAV compatibility, and Li-Ion packs for up to 45-minute missions.
We’ve included reinforced rear rails for mounting antennas, Crossfire/ELRS modules, or digital VTX systems like the HDZero Freestyle or DJI O3 Air Unit.
Vibration-Resistant and Stack Isolation
The dual-stack design supports soft mounting with grommet-ready holes, ensuring clean gyro signals and minimizing mid-flight oscillations. Compatible with 30x30mm and 20x20mm stacks, users can run dual flight stacks—ideal for HD digital systems, GPS modules, and telemetry boards.
This vibration-free architecture makes the Mark4 V2 a preferred frame for cinematic pilots and mapping survey professionals.
Payload Optimization and Modularity
Whether you’re flying with a GoPro Hero 11, Insta360 One R, or custom 3D-printed payload, this frame offers multiple mounting configurations. Camera plates support adjustable camera tilt, while top plate slots accommodate Li-Ion packs up to 4000mAh x 2 using velcro straps or 3D-printed sleds.
Quick-swap arm design allows pilots to replace broken arms within minutes—no need to disassemble the entire stack.
Perfect for Professional Builds
This frame is ideal for:
-
Long-Range FPV Explorers
-
Cinematic Filmmakers
-
Search and Rescue Operators
-
Freestyle 10-inch Quad Enthusiasts
-
Heavy-lift Drone Builders
Discover the Best Selection of FPV Frames – Shop Now
An FPV drone frame is the backbone of your drone’s build, providing stability and structure for the rest of the components. At the FPV Project, we offer a wide range of FPV drone frames for sale that cater to both beginners and seasoned pilots, providing a foundation for building high-performance drones. With our selection of FPV frames, you can customize and build your drone to your exact specifications and take your flying skills to the next level.
Learn More About Carbon Fiber!
https://en.wikipedia.org/wiki/Carbon_fiber_reinforced_polymer
- Carbon fiber is a popular material choice for FPV drone frames due to its strength, durability, and lightweight properties.
- Carbon fiber frames provide a higher strength-to-weight ratio than traditional materials, resulting in better performance and maneuverability.
- Carbon fiber composites are resistant to impacts and vibrations, which helps to protect the drone’s sensitive electronics and maintain stability during flight.
- The use of carbon fiber materials in FPV drones also enables faster acceleration, higher speeds, and longer flight times, resulting in a better overall experience for the pilot.
- Carbon fiber is also an excellent thermal conductor, helping to dissipate heat generated by high-powered motors and batteries, thus preventing damage to the drone’s components.
- FPV drone enthusiasts should consider carbon fiber frames when purchasing a new drone or upgrading their existing one to achieve optimal performance and durability.
- Carbon fiber frames are available in a range of sizes and configurations, suitable for different types of drones, including racing, freestyle, and long-range drones.
- When purchasing a carbon fiber frame, consider factors such as weight, stiffness, and compatibility with other components to ensure the best performance for your FPV drone.
- Carbon fiber frames may be more expensive than other frame materials, but their long-lasting durability and performance benefits make them a worthwhile investment for serious FPV drone pilots.
- The FPV Project offers a wide range of carbon fiber frames, suitable for all types of FPV drones, ensuring that enthusiasts have access to the latest technology and the best possible flying experience.
