GEP-MK5D LR7 Frame Review – The Ultimate 7-Inch FPV Long-Range Platform

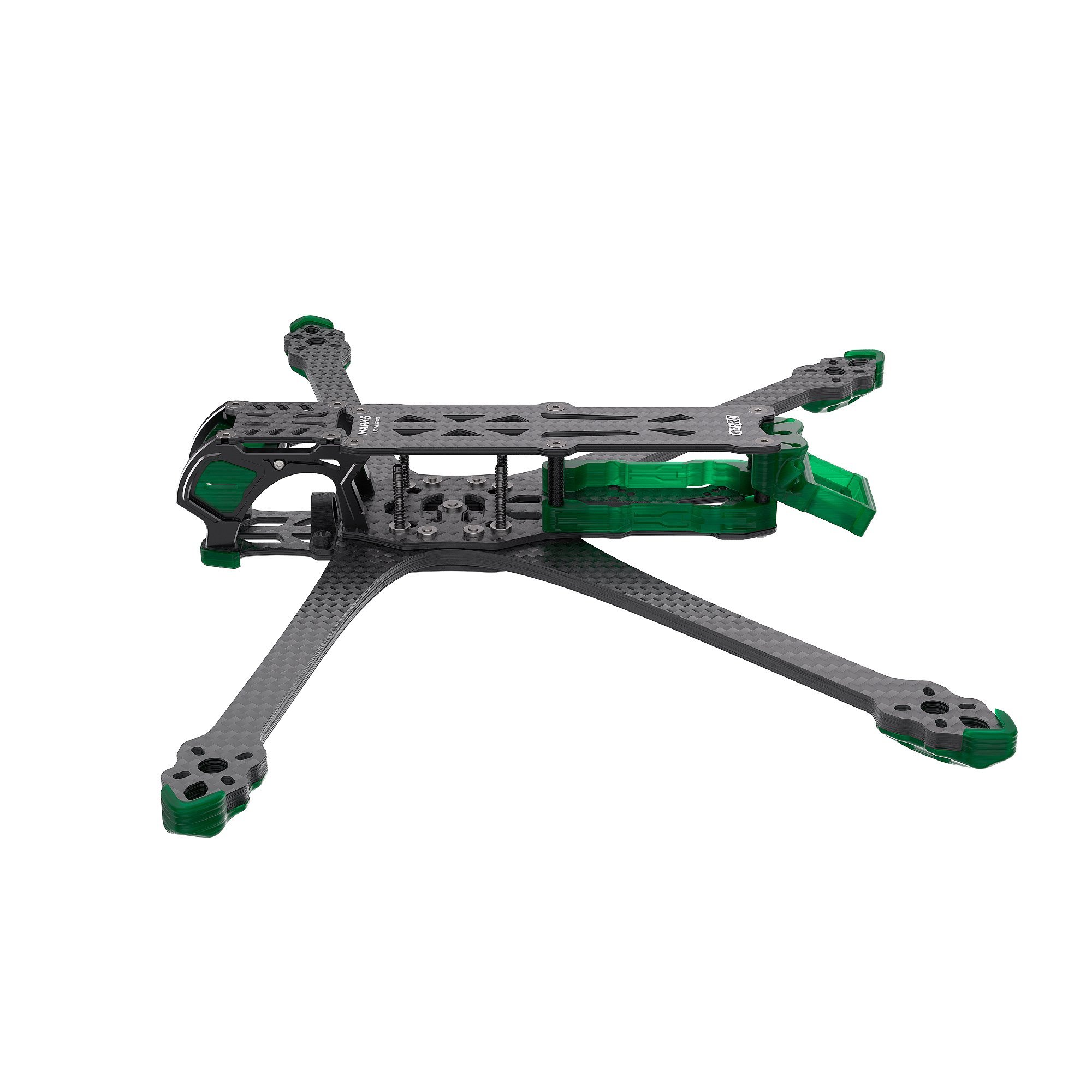

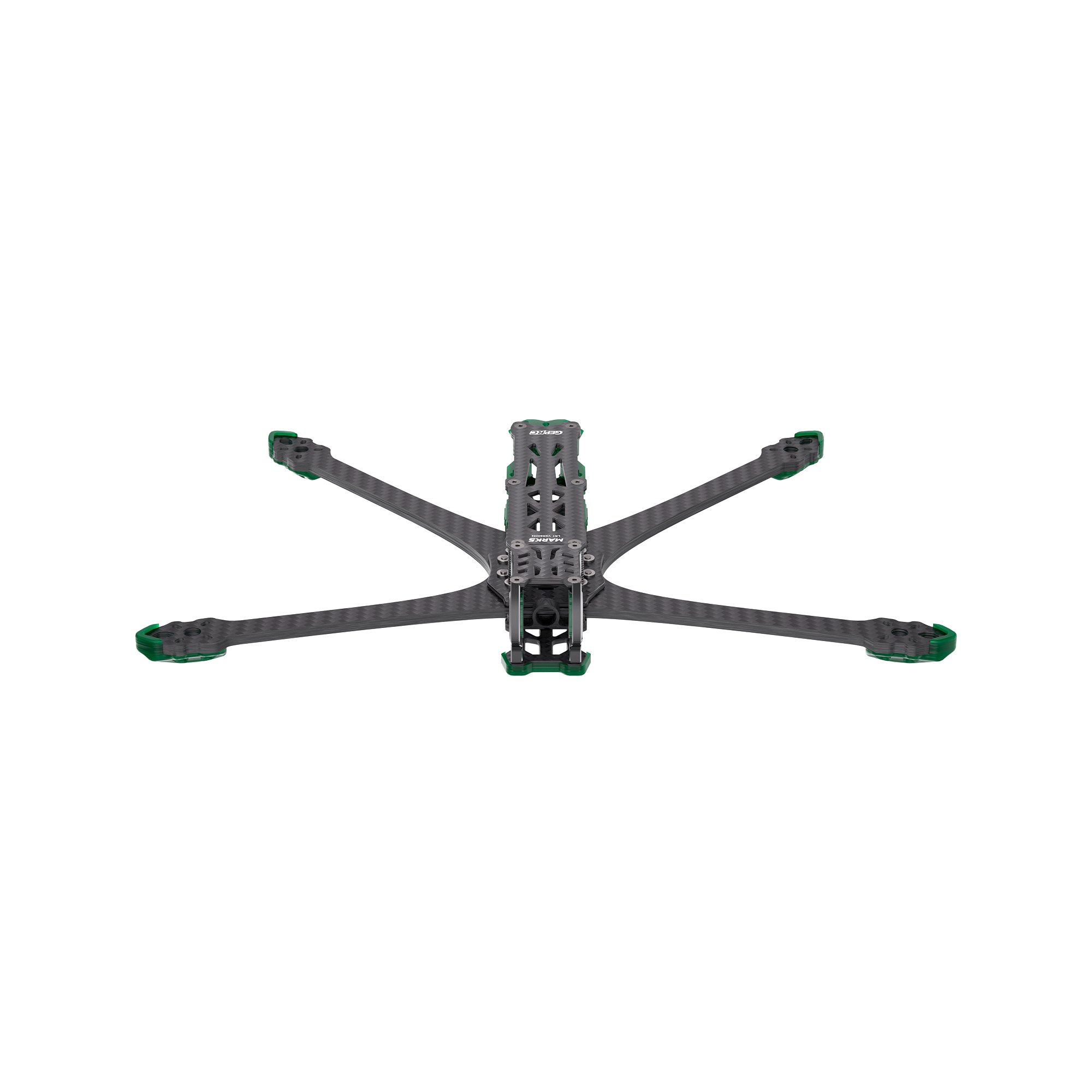

The GEP-MK5D LR7 Frame by GEPRC is a purpose-built 7-inch FPV drone frame designed for long-range explorers, digital HD pilots, and cinematic content creators. Engineered to deliver exceptional flight stability, high-speed cruising efficiency, and robust durability, the LR7 platform stands as one of the most refined options in the current FPV frame market.
🔍 What Sets the GEP-MK5D LR7 Apart?
GEPRC has re-engineered their highly praised MK5 series to bring you a longer, more aerodynamic, and component-friendly frame that directly meets the demands of long-range missions. Whether you’re pushing mountain ridgelines, forest trails, or cinematic hyperlapses, the LR7 delivers on all fronts.
⚙️ Core Specifications
| Specification | Value |
|---|---|
| Frame Type | 7-Inch Long Range Digital Frame |
| Carbon Fiber Grade | T700 High-Strength Matte Carbon |
| Arm Thickness | 6mm |
| Main Plate Thickness | 2.5mm |
| Stack Mounting Options | 30.5×30.5mm & 20×20mm (Front and Rear) |
| Camera Mount Support | 19–20mm (Mini/Micro) |
| Weight (Bare Frame) | 148g (Approx) |
| Motor Mount | 16×16mm and 19×19mm |
| GPS & Antenna Mounts | TPU-based included |
| GoPro Mount Support | Yes (Naked GoPro / Hero / Insta360) |
🚀 Key Design Advantages
1. Digital-First Architecture
Optimized for DJI O3 Air Unit, Walksnail Avatar, and HDZero Freestyle VTX, the LR7 offers multiple ventilation and routing features for HD systems. The rear-mounted stack ensures easy separation between analog noise and GPS signal, minimizing interference and latency.
2. Enhanced Flight Dynamics
The longer arm design paired with a low-slung battery tray maintains ideal center of gravity. The result: smooth yaw control, glide-like cruising, and stable 7-inch prop engagement even in windy conditions.
3. Smart Layout for Efficient Builds
-
XT60 integrated rear TPU mount
-
Rear SMA/MCX antenna mount points
-
Battery lead passthrough channel for clean routing
-
VTX & ESC cooling vents
🛠️ Assembly and Build Quality
GEPRC’s manufacturing precision shines here—tight tolerances, chamfered edges, and top-tier screws make this frame a joy to build. Each arm is individually braced with interlocking joints that minimize twist under heavy load.
Pre-installed press-fit nuts simplify field maintenance, while the modular arm design allows easy replacements without dismantling the entire stack.
🔌 Ideal Components for GEP-MK5D LR7
| Component Type | Recommended Spec |
|---|---|
| Motors | 2806.5 1300KV (6S) / 1500KV (4S) |
| ESC | 55A or 60A 4-in-1 BLHeli_32 |
| Flight Controller | F722 with Baro & Blackbox |
| GPS Module | BN-220 / M10Q or BN-880Q |
| VTX | DJI O3 / Avatar HD / HDZero Freestyle |
| Antennas | AXII 2 / VAS Minion Pro |
| Camera | Caddx Nebula Pro / Runcam Link Wasp |
| Props | 7×4.5 Bi-blade or HQProp 7×3.5×3 |
Discover the Best Selection of FPV Frames – Shop Now
An FPV drone frame is the backbone of your drone’s build, providing stability and structure for the rest of the components. At the FPV Project, we offer a wide range of FPV drone frames for sale that cater to both beginners and seasoned pilots, providing a foundation for building high-performance drones. With our selection of FPV frames, you can customize and build your drone to your exact specifications and take your flying skills to the next level.
Learn More About Carbon Fiber!
https://en.wikipedia.org/wiki/Carbon_fiber_reinforced_polymer
- Carbon fiber is a popular material choice for FPV drone frames due to its strength, durability, and lightweight properties.
- Carbon fiber frames provide a higher strength-to-weight ratio than traditional materials, resulting in better performance and maneuverability.
- Carbon fiber composites are resistant to impacts and vibrations, which helps to protect the drone’s sensitive electronics and maintain stability during flight.
- The use of carbon fiber materials in FPV drones also enables faster acceleration, higher speeds, and longer flight times, resulting in a better overall experience for the pilot.
- Carbon fiber is also an excellent thermal conductor, helping to dissipate heat generated by high-powered motors and batteries, thus preventing damage to the drone’s components.
- FPV drone enthusiasts should consider carbon fiber frames when purchasing a new drone or upgrading their existing one to achieve optimal performance and durability.
- Carbon fiber frames are available in a range of sizes and configurations, suitable for different types of drones, including racing, freestyle, and long-range drones.
- When purchasing a carbon fiber frame, consider factors such as weight, stiffness, and compatibility with other components to ensure the best performance for your FPV drone.
- Carbon fiber frames may be more expensive than other frame materials, but their long-lasting durability and performance benefits make them a worthwhile investment for serious FPV drone pilots.
- The FPV Project offers a wide range of carbon fiber frames, suitable for all types of FPV drones, ensuring that enthusiasts have access to the latest technology and the best possible flying experience.
