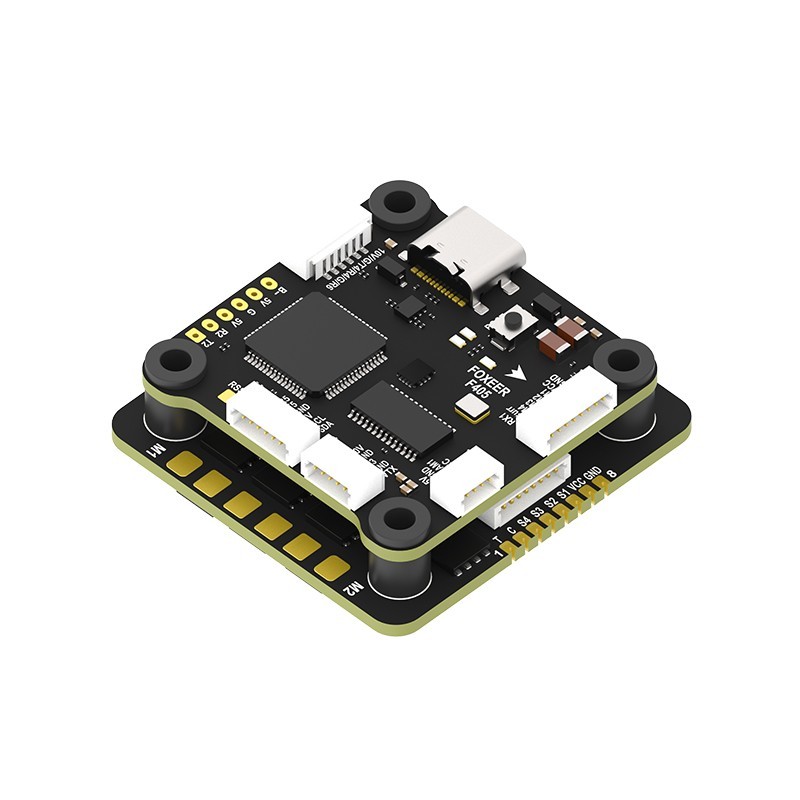

Foxeer F405 V2 Stack FC Reaper 55A ESC 30×30: The Ultimate 8S FPV Power Stack for Elite Drone Performance
Introduction: Why Choose the Foxeer F405 V2 Stack FC Reaper 55A ESC 30×30?
At The FPV Project, we proudly offer the Foxeer F405 V2 Stack FC Reaper 55A ESC 30×30, a powerhouse solution engineered for pilots who demand performance, reliability, and seamless integration. Whether you’re building a long-range cruiser or a freestyle beast, this stack delivers top-tier results with 8S voltage compatibility, integrated barometer, DJI plug-and-play support, and cutting-edge ESC firmware.

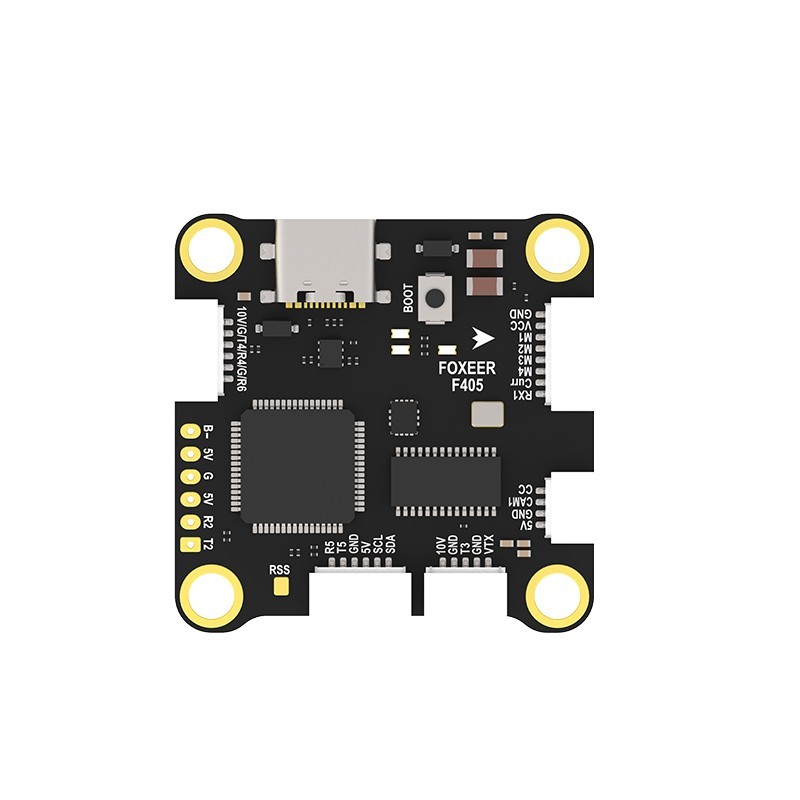

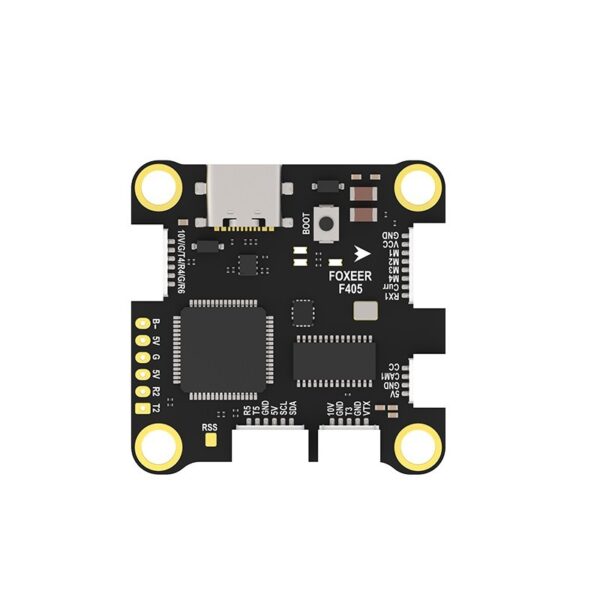

Foxeer F405 V2 Flight Controller – Precision Meets Flexibility
Powerful STM32F405 MCU
-
Processor: STM32F405RGT6 running at 168MHz ensures responsive flight logic and ultra-low latency performance.
-
Gyroscope: Built-in BMI270 gyro delivers stable IMU readings for smooth control, with low-noise filtering and high sampling rates.
Feature-Rich Configuration
-
Barometer: Integrated BMP280, ideal for altitude hold and advanced navigation tasks.
-
OSD: Supports Betaflight OSD with voltage, current, flight time, GPS data, and more.
-
Blackbox: 16MB onboard flash memory for in-depth PID tuning and flight log analysis.
-
BEC: 5V @ 3A + 10V @ 2A outputs with reliable filtering for analog, HD, and peripheral power.
Connectivity
-
UARTs: 6 full UARTs for GPS, receiver, telemetry, VTX, ESC telemetry, and additional peripherals.
-
USB: Type-C port for quick configuration via Betaflight.
-
Receiver Support: Compatible with SBUS, CRSF, ELRS, DSMX, iBus.
-
DJI Plug-and-Play: Native connector for DJI Air Unit and O3 with 10V dedicated power rail.

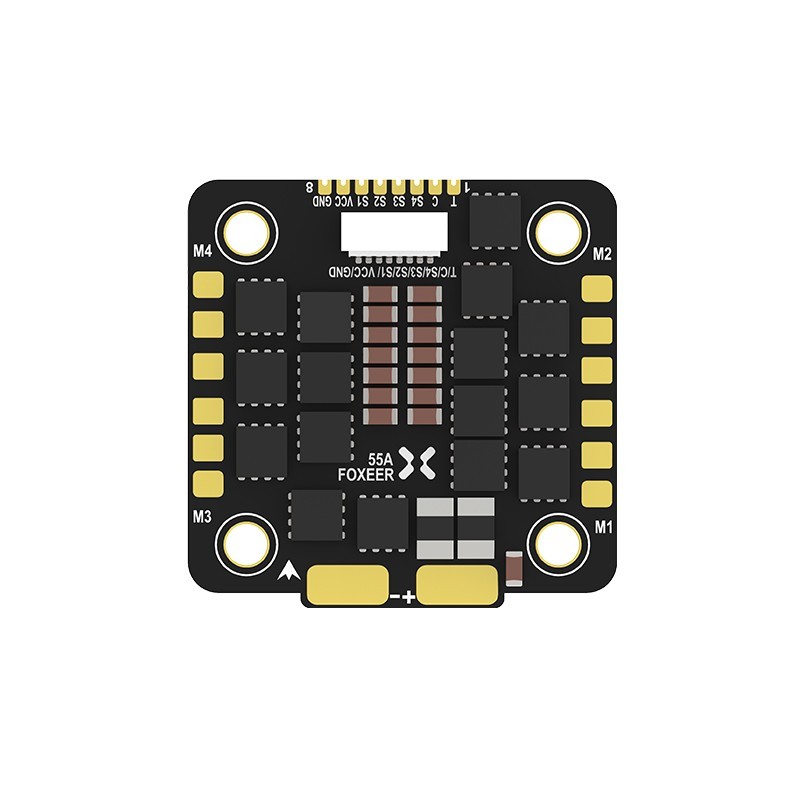

Reaper 4-in-1 55A BLHeli_32 ESC – Pure 8S Brutality
Heavy Duty MOSFET Architecture
-
Current Rating: 55A continuous, 65A burst
-
Voltage Input: 3-8S LiPo
-
Firmware: Pre-flashed with BLHeli_32, offering advanced features like PWM frequency control, telemetry, current limiting, and temperature protection.
Advanced Features
-
Current Sensor: High-precision 200A current sensing with real-time telemetry feedback
-
Heat Dissipation: Thick copper layers and large surface area for superior thermal handling
-
Signal Input: RPM filter compatible, ensuring smooth motor performance and accurate filtering.
Applications: Built for Hardcore FPV
| Use Case | Benefit |
|---|---|
| Freestyle | Butter-smooth response and OSD clarity |
| Racing | Ultra-fast processing, zero delay motor response |
| Long Range | 8S support ensures higher efficiency, reduced current draw |
| Cinematic | Barometer, GPS, and advanced filtering enable ultra-smooth footage |
| Heavylift | Handles 2807 to 3110 motors and beyond with ease |
Stack Dimensions and Mounting
-
Mounting Pattern: 30.5×30.5mm standard
-
Form Factor: Low-profile design
-
Weight: FC: 8g | ESC: 15.6g (without wires)
-
Connectors: Pre-soldered XT60 pads and plug-ready headers reduce build time.
Alright, let’s dive into the world of PID loop frequencies!
So, imagine you’re playing a really immersive video game.
You press a button on your controller, and your character responds instantly on the screen, right? Now imagine if there was a delay between your button press and the character’s action. That would be a bummer, wouldn’t it?
Well, in the world of drones, we have a similar situation. The drone’s flight controller is constantly making adjustments to keep the drone flying smoothly. This happens through something called the PID loop, which stands for the Proportional, Integral, and Derivative loop.
The PID loop is like the brain of the drone. It takes information from the sensors, decides how the drone should respond, and then sends commands to the motors. This entire process happens repeatedly and at a very fast pace. The frequency at which this process repeats is known as the PID loop frequency. It’s like the frame rate in a video game – the higher the frame rate, the smoother the game looks.
Now, when we talk about 2K, 4K, and 8K PID loop frequencies, we’re talking about how many times per second this process happens. So, 2K means the PID loop runs 2000 times per second, 4K means it runs 4000 times per second, and 8K means it runs 8000 times per second. It’s like choosing between running, cycling, or driving – each one is faster than the last!
So, you might be thinking, “Well, obviously 8K is the best because it’s the fastest, right?” Not necessarily! Just like driving a car super fast isn’t always the best option (you could get a ticket or crash
), running your PID loop at super high frequencies isn’t always the best choice.
For one, it can make your flight controller work harder, which can lead to overheating. It can also make your ESC protocol more prone to errors, kind of like how a fast internet connection can sometimes be unstable.
So, it’s all about finding the right balance. Just like how you wouldn’t use a race car to go to the grocery store, you wouldn’t necessarily use an 8K PID loop frequency for a casual drone flight. It all depends on what you’re using your drone for.
I hope this helps to understand what PID loop frequencies are all about! If you have any more questions, feel free to ask. Happy droning!
