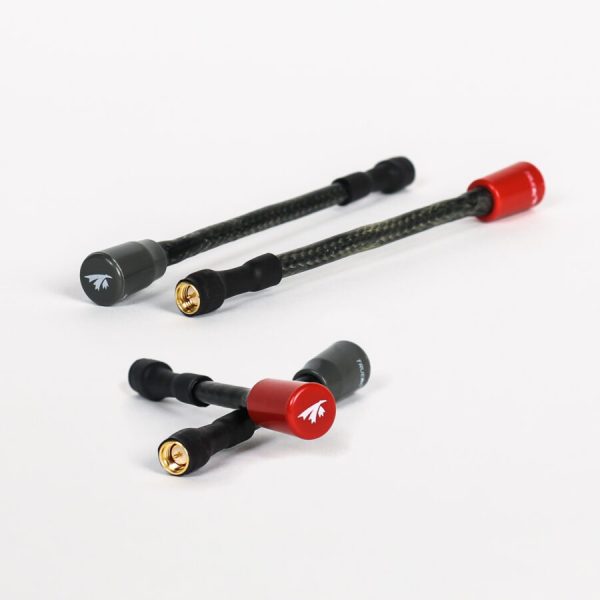

TrueRC Matchstick 5.8 SMA – Carbon Antenna (LHCP-Long & Medium) (RHCP- Medium) Description:
Introducing… the new TrueRC Matchstick Antenna – Carbon Edition! The Matchstick was designed to take a beating. Made with a hardened stubby case connected to a carbon fiber reinforced coax cable, the Matchstick gives you grade-A performance that will survive the worst. Choose between SMA and U.Fl connectors with multiple cable lengths available.
Note: This is one single antenna. Multiple options are sold separately.
- SMA Cables (Long, Regular)
- Carbon Fiber Reinforced Cables
- LCHP or RHCP
- Cross-Polar Rejection: -15 to -30dB (1.9%)
- Size (Regular): 12.7mm x 70mm
- Cable: Carbon Fiber reinforced
- Size (Long): 12.7mm x 125mm
- Polarization: LHCP or RCHP
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 99%
- Connector: SMA or U.Fl
- Weight (Regular): 6.2 g
- Size: 12.7mm x 70mm
- Weight (Long): 7.8 g
- US. Pat. 10,804,618
- Can. Pat. 2968566
- SWR: <=1.5:1
- Weight: 5.9 g
- 1x TrueRC Matchstick 5.8GHz Antenna – Carbon Edition (Choose TYPE and Length)
- Note: This is one single antenna. Multiple options are sold separately.
