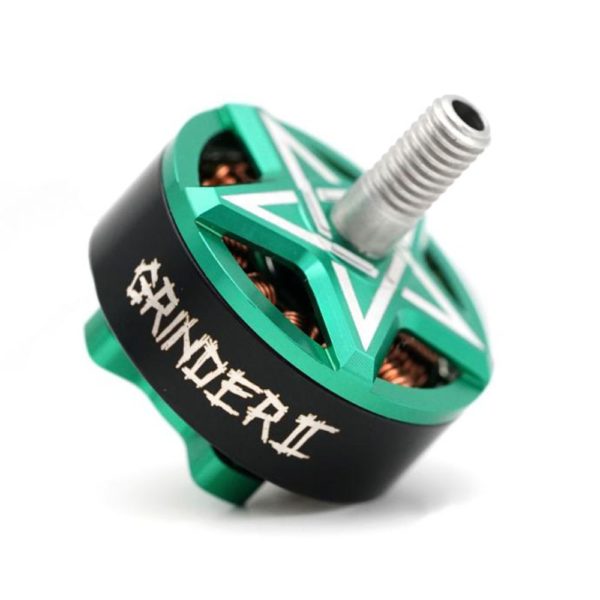

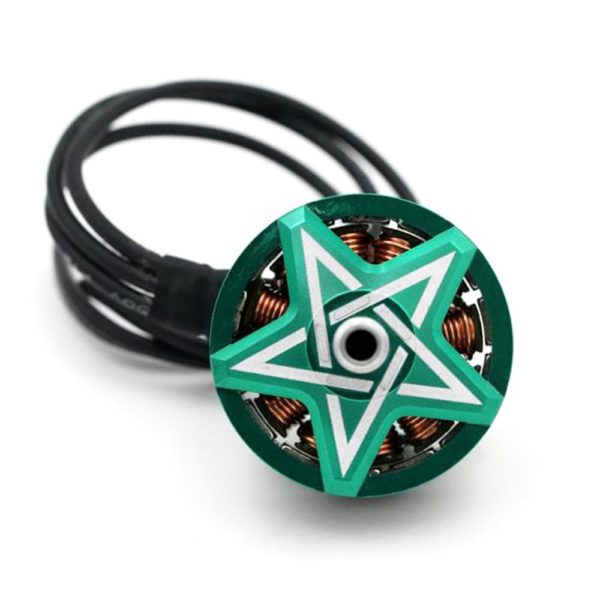

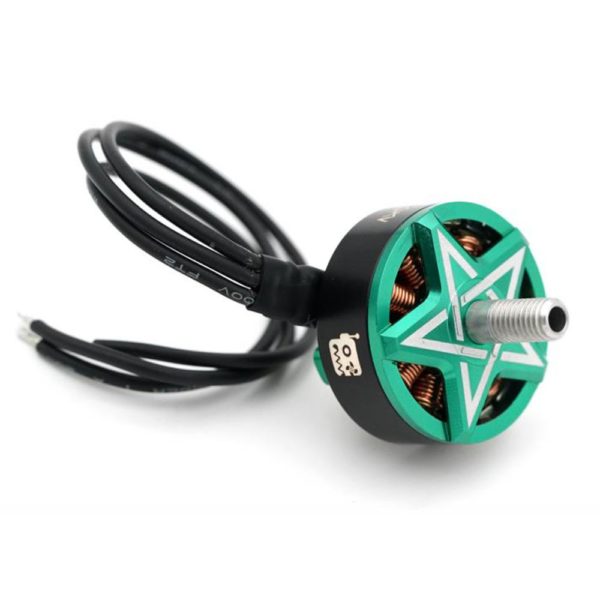

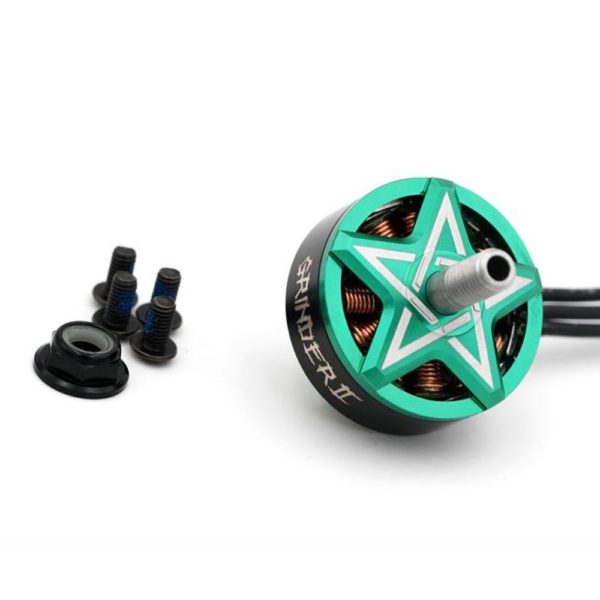

TBS GRINDER 2207 KV2500 (Set of 4) Motor Description:
Do you fly hardcore fpv? Do you need a motor that will keep up with your misjudged power loops and won’t stress your wallet? Introducing the grinder v2 freestyle motor.
This 2207 2500 motor has the torque to get you out of those “oh sh*t” moments but is smooth enough for mid throttle cruising, rated up to 5s and sporting a protective magik symbol on top blessed by the high shaman at tbs this motor is all you are going to need to shred some sky and crush some bandos.
- Stator Size (Diameter): 22mm
- Kv: 2500kv
- Magnets N52SH: Curved
- Windings: 8 turns DLRK
- Shaft Length (mm): 11.5mm
- Shaft Diameter (mm): 3mm
- Shaft material: Steel
- Bearing: NSK639
- Weight (With Wires) (g): 33g
- Cells (Lipo): 4-5S
- Max Current (A): 45A
- Max Burst Current (A): 50A
- Internal Resistance (Rm): 47Ω
- Wire Spec (AWG): 20#
- Base Mounting Pattern: 16x16mm
- Base Mounting Thread: M3 Thread
- Motor Overall Dimensions: φ27.5mm*17.7mm
