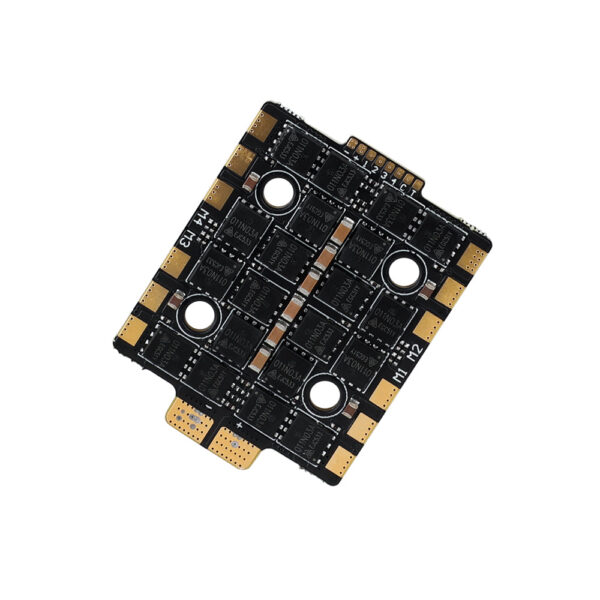

T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC – 20×20

7,699.00

 Overview:

  • Take your drone to new heights with the T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20, the ultimate powerhouse for your aerial adventures.
  • Ready to experience unparalleled drone performance? Look no further than the T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20.
  • Elevate your drone’s capabilities with the advanced features and superior performance of the T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20.

Availability: In stock (can be backordered)

1 user is viewing this product
SKU: SKU8235463542 Category:
Spread the love

T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC – 20×20 Features and Specifications:



T-Motor Mini F60A Introduction

In the world of drones, having the right Electronic Speed Controller (ESC) can make all the difference. That’s why we’re excited to introduce the T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20. This ESC is designed to provide unparalleled performance and power, making it the ultimate powerhouse for your drone.

T-Motor Mini F60A Specifications

The TMotor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20 is loaded with advanced features that make it stand out from other ESCs on the market. Here are some of the specifications that make this ESC unique:

  • Supports 3-8S LiPo batteries, making it compatible with a wide range of drones
  • BLHeli_32 firmware, providing fast and smooth throttle response
  • High-quality components for reliable performance and durability
  • Supports DShot 1200 and ProShot for fast communication with flight controllers
  • Small and lightweight design for easy installation and minimal impact on your drone’s weight and balance

T-Motor Mini F60A Performance

The TMotor F60A 3-8S BLHeli_32 4in1 ESC 20×20 is designed for maximum performance. With its advanced firmware and high-quality components, this ESC can handle high loads and provide smooth and consistent power to your drone’s motors. Whether you’re racing or freestyling, the T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20 is up to the challenge.

T-Motor Mini F60A Installation

Installing the TMotor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20 is a breeze thanks to its small and lightweight design. The ESC is designed to fit on a 20x20mm mounting pattern, making it compatible with a wide range of frames. The package comes with everything you need to get started, including mounting hardware and a capacitor.

Conclusion

The T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20 is the ultimate ESC for any drone enthusiast. With its advanced features, high-quality components, and unparalleled performance, this ESC is sure to take your drone to the next level. If you’re looking for an ESC that can handle anything you throw at it, the T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC 20×20 is the perfect choice.



T-Motor Mini F60A

Specifications

  • Input Signal: DShot 150/300/600/1200/MultiShot/OneShot
  • Mounting Pattern: 20x20mm M3
  • Max. Continuous Current: 60A
  • PWM Frequency: 16-96KHz
  • Input Voltage: 3-8S LiPo
  • Max Burst Current: 70A
  • Dimensions: 36x47mm
  • Firmware: BLHeli_32
  • Telemetry: Yes
  • Weight: 14g

Includes

  • 1x TMotor Mini F60A 3-8S BLHeli_32 4in1 ESC – 20×20
  • 1x Amass XT60H-M Cable
  • 1x FC Connector
  • 10x Grommets
  • 1x Capacitor

Read More About Lipo Batteries by clicking the link below:
https://oscarliang.com/fpv-drone-guide/

Checkout our Frames Collection by clicking the link below:
https://thefpvproject.com/product-category/frames/

1S = 1 cell  = 3.7V
2S = 2 cells = 7.4V
3S = 3 cells = 11.1V
4S = 4 cells = 14.8V
5S = 5 cells = 18.5V
6S = 6 cells = 22.2V

For example, we call a 14.8V battery a “4-cell” or “4S” battery.

LiPo battery is designed to operate within a safe voltage range, from 3V to 4.2V. Discharging below 3V could cause irreversible performance loss and even damage to the battery. Overcharging above 4.2V could be dangerous and eventually cause a fire.

However, it’s advisable to stop discharging when it reaches 3.5V for battery health reasons. For example for a 3S Lipo, the max voltage is 12.6V, and you should land when the voltage reaches 10.5V (at 3.5V per cell).

Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
