Sale!
T-Motor F2203.5
T-Motor F2203.5
T-Motor F2203.5

T-Motor F2203.5 1500KV/2850KV

₹6,599.00

Overview:

  • The T-Motor F2203.5 1500KV/2850KV Motor is the perfect solution for those looking to enhance their multirotor’s visibility and speed.
  • With an upgraded design and high-quality components, these motors offer better thrust and cooling for optimal performance.



Availability: In stock (can be backordered)

1 user is viewing this product
SKU: SKU762320 Categories: ,
Spread the love

T-Motor F2203.5 1500KV/2850KV (Set of 4 Motors) Description:

The T-Motor F2203.5 1500KV/2850KV Motor is the perfect solution for those looking to enhance their multirotor’s visibility and speed. With an upgraded design and high-quality components, these motors offer better thrust and cooling for optimal performance.

Whether you’re into freestyle or racing, these motors are ideal for 3″ cine-whoops and 4″-5″ toothpick builds. Not only are they sleek and stylish, but they also deliver exceptional power and stability. Upgrade your FPV drone today with the T-Motor F2203.5 motors for an unparalleled flying experience!

T-Motor F2203.5 Specifications

KV: 1500KV

  • Motor Dimensions: Φ26.8*26.45mm
  • Lead: 24#AWG 130mm
  • Shaft Diameter: 3mm
  • Idle Current (10): 0.3A
  • Max. Power (the 60s): 462W
  • Weight (Incl. Cable): 17.7g
  • Internal Resistance: 235mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 6S
  • Peak Current (60s): 19.5A

KV: 2850KV

  • Motor Dimensions: Φ26.8*26.45mm
  • Lead: 24#AWG 130mm
  • Shaft Diameter: 3mm
  • Idle Current (10): 0.3A
  • Max. Power (the 60s): 734W
  • Weight (Incl. Cable): 19.7g
  • Internal Resistance: 90mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 4-6S
  • Peak Current (60s): 31.4A

Includes

  • 1 x T-Motor F2203.5 1500KV/2850KV/3550KV Motor

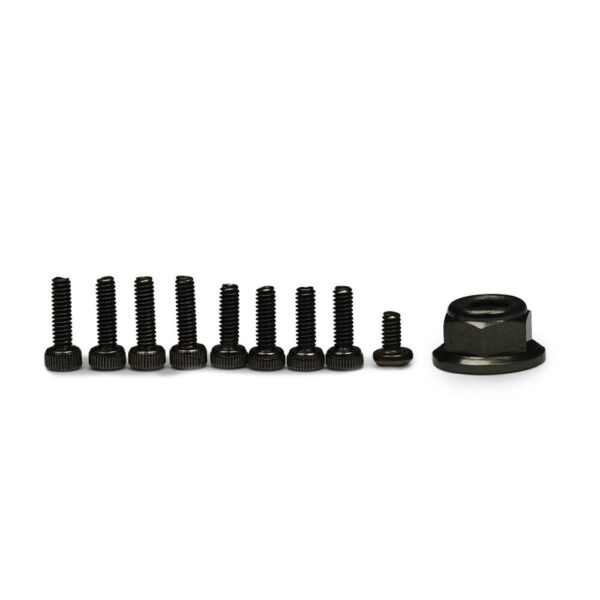

  • 1 set of screws

Read More About Lipo Batteries by clicking the link below:
https://oscarliang.com/fpv-drone-guide/

Checkout our Frames Collection by clicking the link below:
https://thefpvproject.com/product-category/frames/

1S = 1 cell  = 3.7V
2S = 2 cells = 7.4V
3S = 3 cells = 11.1V
4S = 4 cells = 14.8V
5S = 5 cells = 18.5V
6S = 6 cells = 22.2V

For example, we call a 14.8V battery a “4-cell” or “4S” battery.

LiPo battery is designed to operate within a safe voltage range, from 3V to 4.2V. Discharging below 3V could cause irreversible performance loss and even damage to the battery. Overcharging above 4.2V could be dangerous and eventually cause a fire.

However, it’s advisable to stop discharging when it reaches 3.5V for battery health reasons. For example for a 3S Lipo, the max voltage is 12.6V, and you should land when the voltage reaches 10.5V (at 3.5V per cell).

Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
