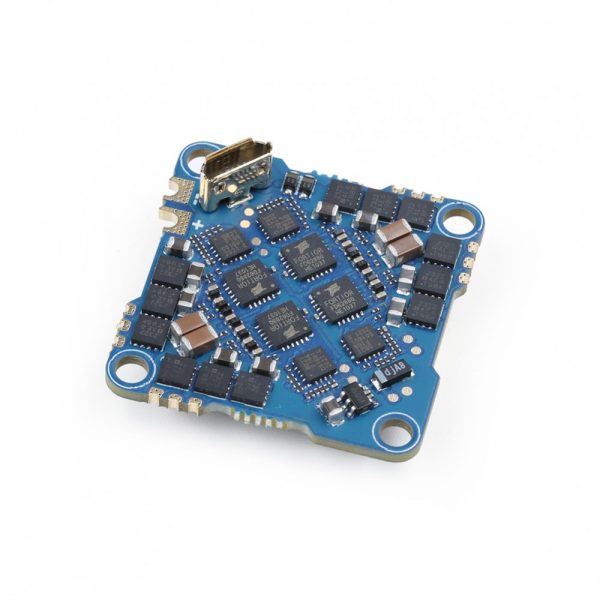

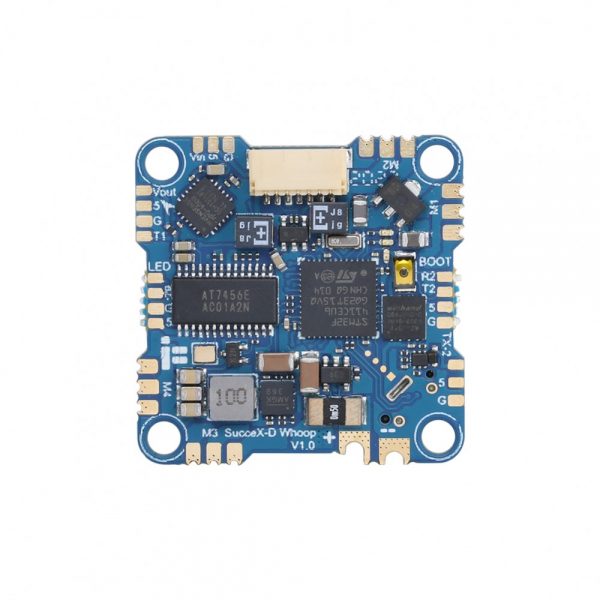

SucceX-D 20A V1 Whoop F4 AIO Board (MPU6000)

5,999.00

 Overview:

  • This 20A F4 AIO whoop style board from iFlight is plug n’ play with the DJI Air Unit and Caddx Vista HD system.
  • This all-in-one board is perfect for ultra-light and micro HD builds that use whoop-style mounting. (25.5×25.5mm)

Out of stock

SKU: SKU8849833390 Category:
Spread the love

SucceX-D 20A V1 Whoop F4 AIO Board (MPU6000) Specification:

  • This 20A F4 AIO whoop style board from iFlight is plug n’ play with the DJI Air Unit and Caddx Vista HD system.
  • This all-in-one board is perfect for ultra-light and micro HD builds that use whoop-style mounting. (25.5×25.5mm)

Features:

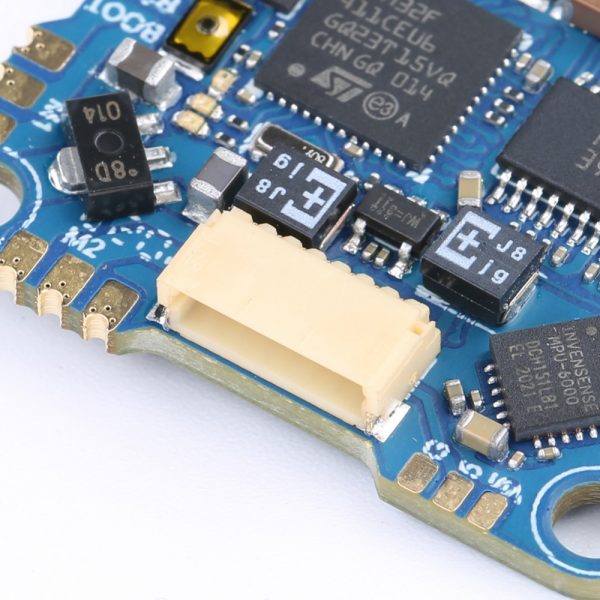

  • DJI Plug-and-Play – No need to solder tiny wires!
  • BEC output: 5V 2A/10V 2A

Specifications:

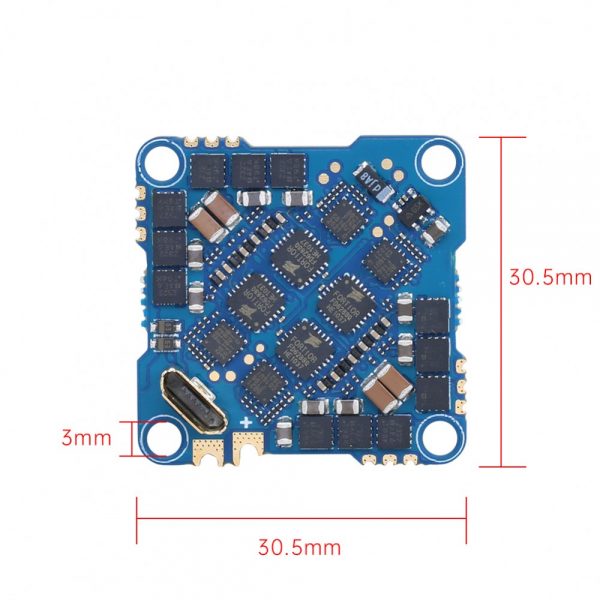

  • Size: 30.5×30.5mm
  • Mounting pattern: 25.5mmx25.5mm

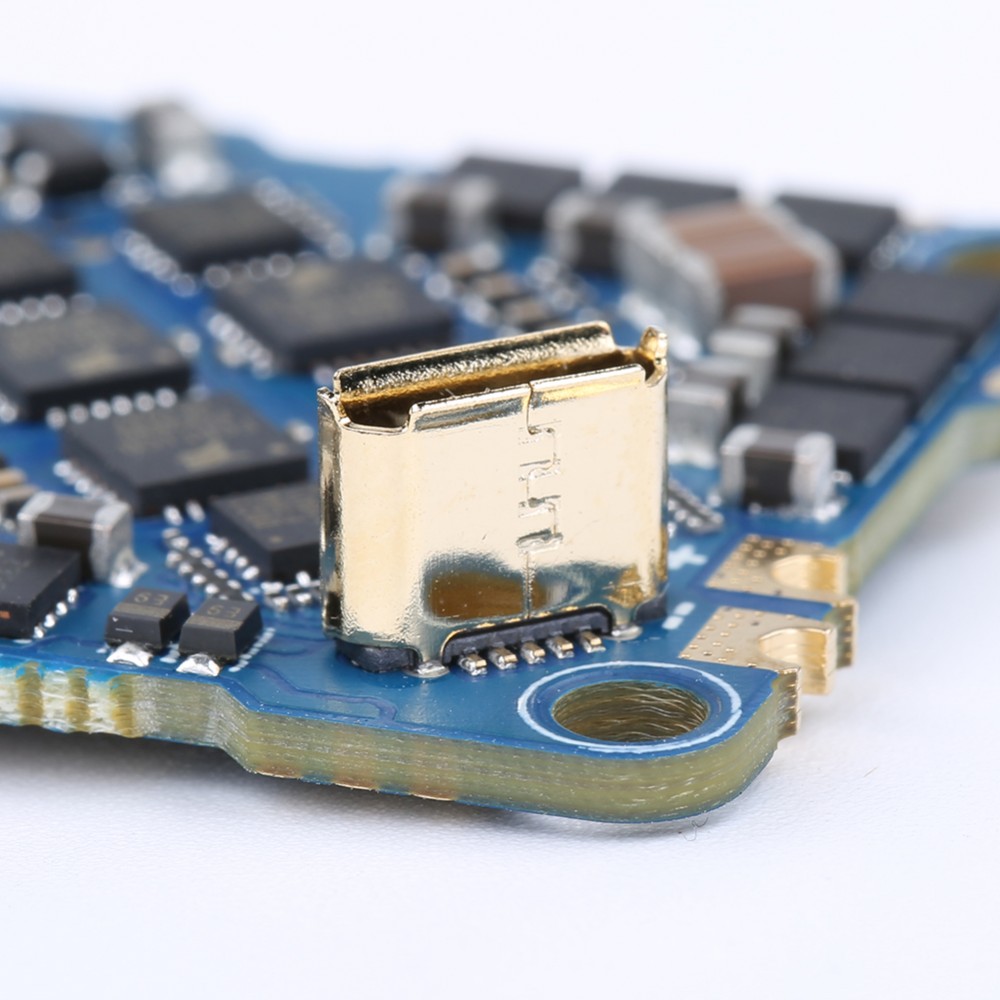

  • Connector: Micro-USB

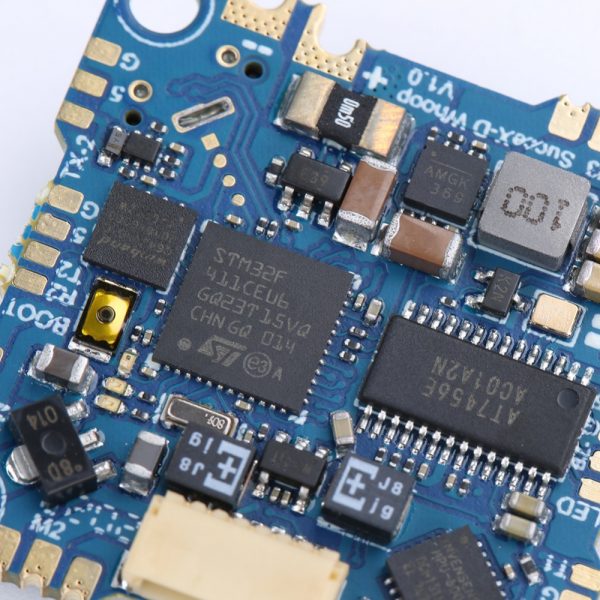

  • MCU: STM32F411
  • Gyro: MPU6000
  • Blackbox: 8MB
  • BEC: 5V 2A
  • INA pad: nR2
  • Barometer: no
  • Constant current: 20A, 25A
  • Input: 2-4S
  • Current sensor: yes
  • BLHeli: BLHeli-S
  • ESC Telemetry: no
  • Firmware Target: IFLIGHT_F411_PRO
  • ESC Firmware: G-H-30 BLS

succex-d

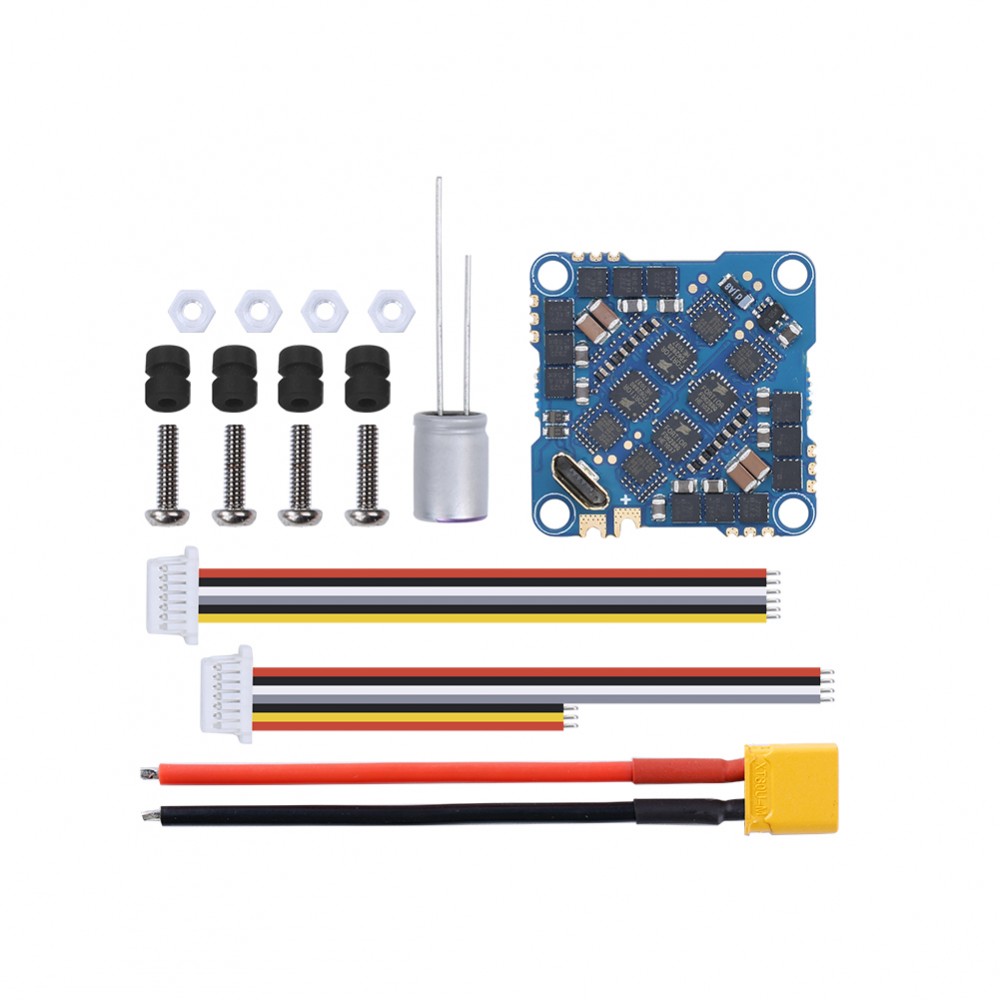

Includes:

  • 1 x SucceX-D Whoop 20A F4 AIO Board
  • 1 x Capacitor 470uF/16V
  • 1 x XT30 18awg cable
  • 1 x Wire harness (plug&play) for DJI Air Unit
  • 4 x M2 silicon grommets
  • 4 x M2 damping balls
  • 4 x M2*8mm Screws



Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
