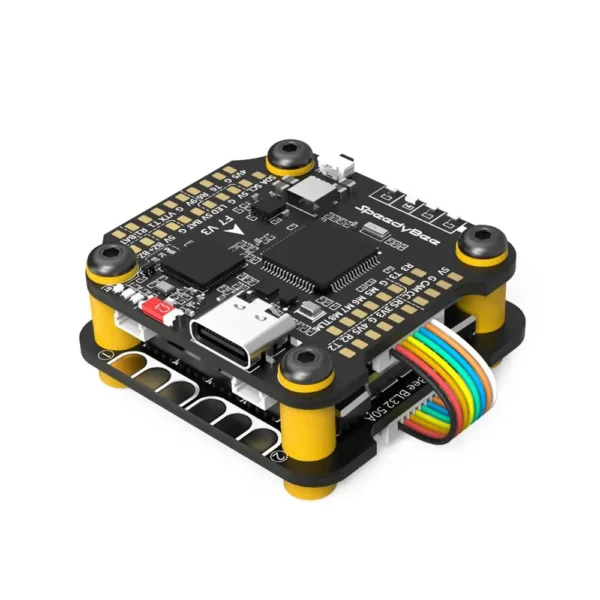

SpeedyBee F7 V3 BL32 50A 30×30 Stack Features and Specifications:
Boost Your Drone Performance with SpeedyBee F7 V3 Stack
SpeedyBee F7 V3 BL32 Introduction
Welcome to our comprehensive guide on optimizing your drone’s performance with the SpeedyBee F7 V3 BL32 Stack. If you’re looking to take your drone flying experience to new heights, this is the article for you. We’ll delve into the features, benefits, and installation process of this exceptional flight controller and ESC combo. With our expert insights and recommendations, you’ll be able to unlock the full potential of your drone and soar past the competition.
SpeedyBee F7 V3 BL32 Unleash the Power
BL32 Superior Flight Controller
At the heart of the SpeedyBee F7 V3 Stack lies a state-of-the-art flight controller. Powered by the advanced F722 microcontroller, this flight controller offers unparalleled processing power and responsiveness. With its 32-bit architecture and faster loop times, you can expect smoother flight performance and precise control over your drone’s maneuvers.
High-Speed BLHeli_32 ESC
Complementing the exceptional flight controller is the SpeedyBee F7 V3 Stack’s BLHeli_32 Electronic Speed Controller (ESC). Engineered for efficiency and reliability, this ESC supports high-current outputs of up to 50A, allowing your drone to handle demanding maneuvers and power-hungry components effortlessly. With its 128KB onboard flash memory, you can store crucial data and enjoy optimal performance without compromising on speed.
Seamless Integration
The SpeedyBee F7 V3 Stack is designed to provide a hassle-free installation process, ensuring that you spend more time in the air and less time on the ground. With its compact 30x30mm size, this stack fits seamlessly into most drone frames, offering a clean and streamlined setup. The neatly organized solder pads and clearly labeled pins make wiring a breeze, even for beginners. Whether you’re building a new drone or upgrading an existing one, the SpeedyBee F7 V3 Stack simplifies the process and saves you valuable time.
Advanced Firmware and Configuration Options
The SpeedyBee F7 V3 Stack comes pre-loaded with Betaflight firmware, a leading flight control software renowned for its versatility and customization options. This allows you to fine-tune your drone’s performance to suit your flying style and preferences. Additionally, the stack supports convenient firmware updates, ensuring you always have access to the latest features and improvements.
The SpeedyBee F7 V3 Stack includes an F722 flight controller and a 50A 128K ESC. Featuring a BMP280 barometer, OSD, 500MB Memory Blackbox, a built-in FC LiPo monitoring system, and many more features, this stack is the perfect addition to your FPV build.
VIDEO: SpeedyBee F7 V3 Flight Stack – Everything But The Kitchen Sink
Features
- 1500uF Low ESR Capacitor with TVS Protective Diode
- 500MB Onboard Blackbox Flash memory
- 8 Motor output perfect for X8 Cinelifters
- 30.5 x 30.5mm Mounting Pattern
- FC LiPo Monitoring System
- SpeedyBee 50A 128K ESC
- CNC Heatsink Shield
- Built-in Barometer
- 128KHz PWM
- 4 LED Plugs
- F722 FC
- Buzzer

SpeedyBee F7 V3 BL32 Specifications
SPEEDYBEE F7 V3 FLIGHT CONTROLLER
- Power Output:
- 1) 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on the front side, and 6 +5V output included in the connectors on the bottom side. The total current load is 2A.
- 2) 2 groups of 9V output, one +9V pad on the front side and the other included in a connector on the bottom side. The total current load is 4A.
- 3) Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
- WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
- I2C: Supported. SDA & SCL pads on the front side. Used for magnetometer, sonar, etc.
- Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
- ESC signal M1 – M4 on the bottom side and M5-M8 on the front side.
- LED: Used for WS2812 LED controlled by Betaflight firmware.
- UART: 5 sets (UART1, UART2, UART3, UART4, UART6)
- DJI Air Unit plug: A full DJI Air Unit JST slot onboard
- BLE Support, used for Flight Controller configuration
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- Mounting: 30.5×30.5mm, 4mm hole size
- Dimensions: 41(L) x 38(W) x 8.1(H)mm
- OSD: BetaFlight OSD w/ AT7456E chip
- BlackBox: 500MB onboard data flash
- BetaFlight Camera Control Pad: Yes
- ESC Telemetry: UART UART4 RX
- Power input: 3S – 6S Lipo
- Target: SPEEDYBEEF7V3
- SmartPort: Supported
- Baro: BMP280 (I2C)
- MCU: STM32F722
- Boot button: Yes
- RSSI input: Yes
- IMU: BMI270
- USB: Type-C
- Weight: 9G
SPEEDYBEE 50A BLHELI_32 128K ESC
- Current Sensor: Supported (Scale=490 Offset=0)
- Mounting: 30.5×0.5mm, 4mm hole size
- Dimension: 45.6(L)x40(W)x8.8mm(H)
- Firmware: SpeedyBee BL32 50A
- Weight: 19.2g with heat sink
- Continuous Current: 50Ax4
- Power input: 3S – 6S LiPo
- Burst Current: 55A(5S)
- Power output: VBAT
SpeedyBee F7 V3 BL32 Links
Includes
- 1x SpeedyBee F7 V3 Flight Controller
- 1 4-Pin SH1.0 to SH1.0 Analog VTX Cable 60mm – Yellow and Blue
- 1x 6-Pin SH1.0 GPS module Cable without connector – 100mm
- 1 4-Pin SH1.0 to 3+ 2-Pin JST1.25 FPV Camera Cable – 30mm
- 1 4-Pin SH1.0 to 3+ 2-Pin JST1.25 FPV Camera Cable – 60mm
- 1 4-Pin SH1.0 to 4-Pin JST1.25 FPV Camera Cable – 60mm
- 1x 6-Pin SH1.0 GPS module Cable with connector
- 1 4-Pin SH1.0 Radio Receiver Cable – 100mm
- 1x SH 1.0mm 8-Pin Cable -30mm
- 5x M3 8mm Silicone Grommets
- 1x DJI 6-Pin Cable – 80mm
- 1x SpeedyBee 50A BLHeli_32 128K ESC
- 1x 35V 1500uF Low ESR Capacitor
- 1x SH 1.0mm 8-Pin Cable -30mm
- 5x M3 8.1mm Silicone Grommets
- 5x M3 Silicone O-Ring
- 1x XT60 Power Cable
