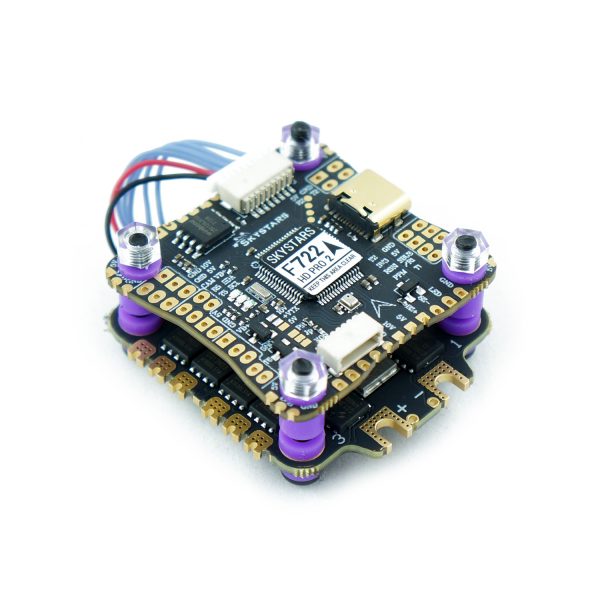

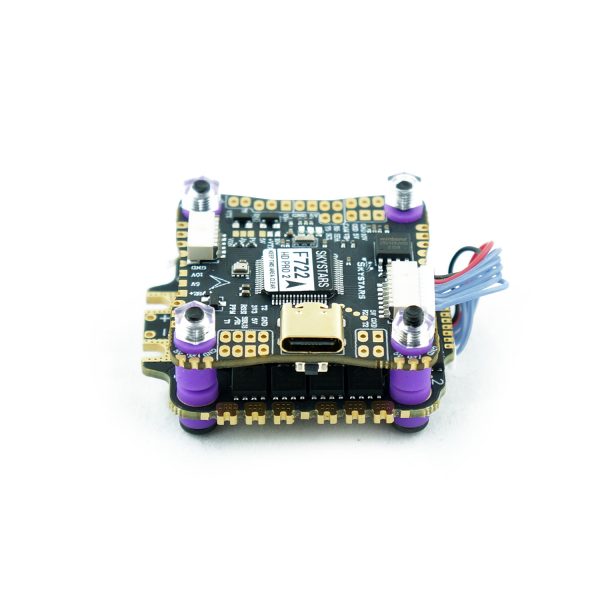

SkyStars F7 + KO55 3-6S BLHeli_S 4-In-1 ESC 30×30 Fly Tower Stack

6,299.00

 Overview:

  • The SkyStars F7+ KO55 Blheli_S Fly Tower Stack features the SkyStars F7 flight controller, as well as the KO55 55A 4-in-1 ESC to give your multirotor full power!

Out of stock

SKU: SKU8872342379 Category:
Spread the love

SkyStars F7 + KO55 3-6S BLHeli-S 4-In-1 ESC 30×30 Fly Tower Stack Features and Specifications:



The SkyStars F7+ KO55 Blheli_S Fly Tower Stack features the SkyStars F7 flight controller, as well as the KO55 55A 4-in-1 ESC to give your multirotor full power!

SkyStars F7 Flight Controller:



  • Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX. Built-in inverter, support 3.3v spectrum satellite receiver, support PPM receiver. The default receiver input is UART 1, the F7 has a built-in inverter that can be used in any free UART.
  • LED: 4 independent LED pads, support WS2812 programming
  • Mounting Holes: Standard 30.5mm square to the center of holes
  • Item name: F722HD Pro 2 Betaflight Flight Controller
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • Input Voltage: 3-6S LiPo(11.1V~22.2V)
  • 6 Hardware UARTS (UART123456)
  • MCU: STM32F722RGT6 216MHz
  • Firmware: SKYSTARS F7HD
  • Dimensions: 38.5x40x6.2mm
  • USB connection: USB-C
  • IMU: MPU6000 (SPI)
  • BEC 5V 3A & 10V 3A
  • Buzzer Pad: YES
  • Black box: 16MB
  • CURR pad: YES
  • RSSI Pad: YES
  • Weight: 6.8g
55A ESC:



  • Dimension: 41*46mm
  • Mounting Holes: 30.5*30.5mm/¦µ3mm
  • Weight: 13.3g
  • Supports 3-6S Lipo input
  • BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
  • Current sensor: YES
  • BEC: NO
  • Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
  • Target: Q-H-30 BLS 16.7

Includes

  • 1 x SkyStars F7 KO55 BLHeli_S 30by30 Fly Stack
Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
