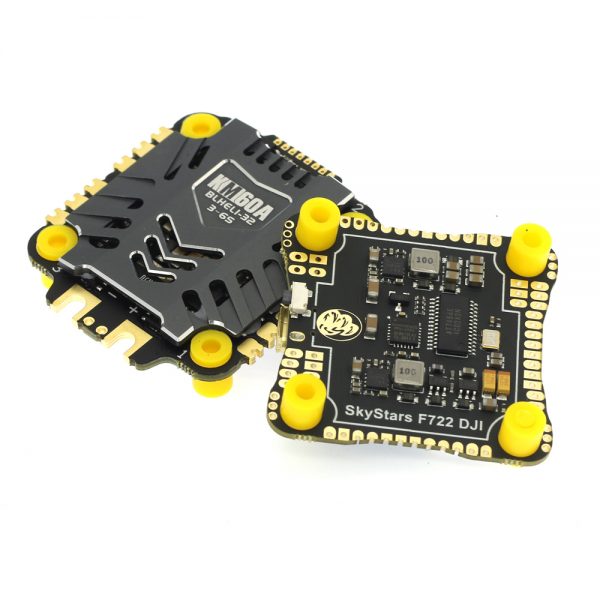

SkyStars F7 + KM60 3-6S BL32 4-In-1 ESC 30×30 Fly Tower Stack Features and Specifications:
SKYSTARS F722HD Flight Controller:
• Item name: F722HD Betaflight Flight Controller
• Input voltage: 3-6S LiPo(11.1V~22.2V)
• MCU: STM32F722RGT6 216MHz
• IMU: MPU6000 (SPI)
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• 6 hardware UARTS (UART123456)
• Receiver: TBS/PPM/SBUS/IBUS/DSM
• RSSI Pad: YES
• Buzzer Pad: YES
• CURR Pad: YES
•BEC 5V 3A & 10V 3A
• Blackbox: 8MB
• Firmware: SKYSTARS F7HD
• Dimensions: 38.5x40x6.2mm
• Mounting Holes: Standard 30.5mm square to the center of holes
• Weight: 6.2g
Kramam KM60 ESC:
• Input voltage: 3-6S LiPo(11.1V~22.2V)
• Con.Current: 60A
• Peak Current: 80A≥ 10S
• Firmware: BLHeli_32
• Support : Dshot 600/1200
• Mounting hole : 30.5mm/M3
• BEC: No
• Product size: 41*46*7.6mm
• Weight: 18g
Includes:
- 1 x SKYSTARS F722HD Flight Controller
- 1 x Kramam KM60 60A Brushless ESC
