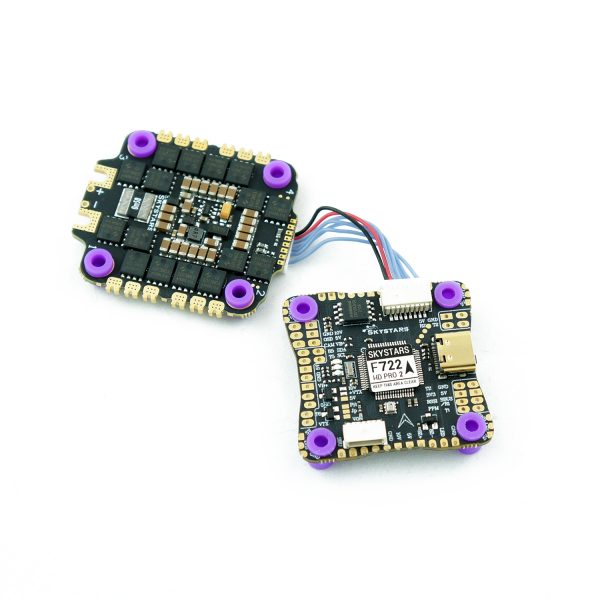

SkyStars F7 HD Pro 2 + KO60 3-6S BLHeli_32 4-In-1 ESC 30×30 Fly Tower Stack



  • The SkyStars F7+ KO60 Blheli 32 Fly Tower Stack comes with a SkyStars F7 HD flight controller and a KO60 60A 4-in-1 ESC to offer your multirotor maximum power!

Out of stock

SKU: SKU887686 Category:
Spread the love

SkyStars F7 HD Pro 2 + KO60 3-6S BLHeli_32 4-In-1 ESC 30×30 Fly Tower Stack Features and Specifications:


The Skystars F7 HD Pro 2 + KO60 Blheli_32 Fly Tower Stack features the SkyStars F7 HD flight controller, as well as the KO60 60A 4-in-1 ESC to give your multirotor full power!

Note: There is no difference in appearance between the 60A and 45A ESC, which can be distinguished from the MOS tube.

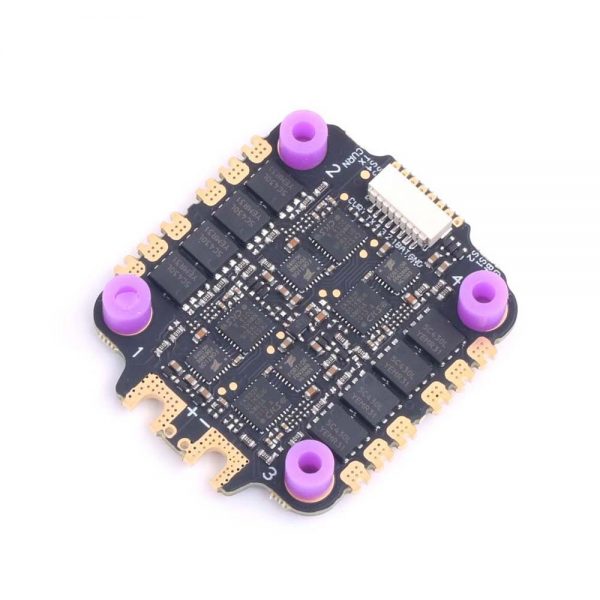

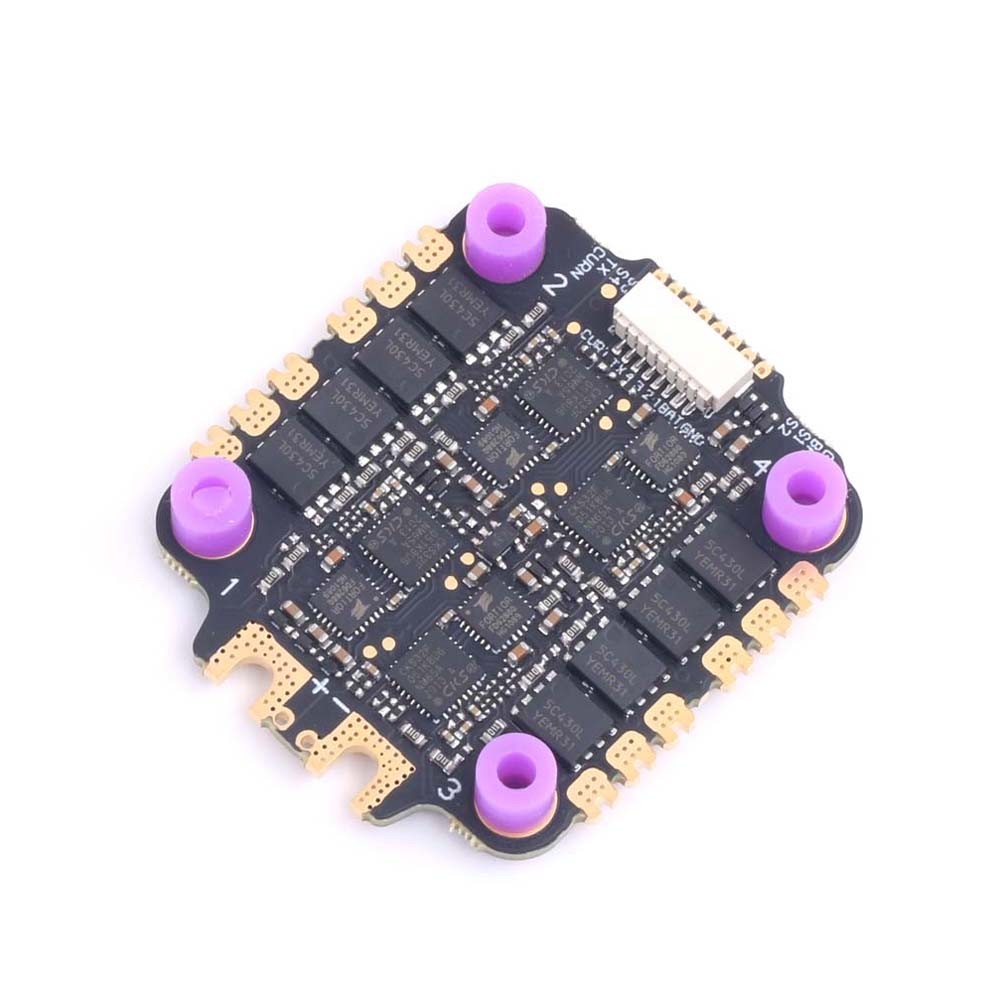

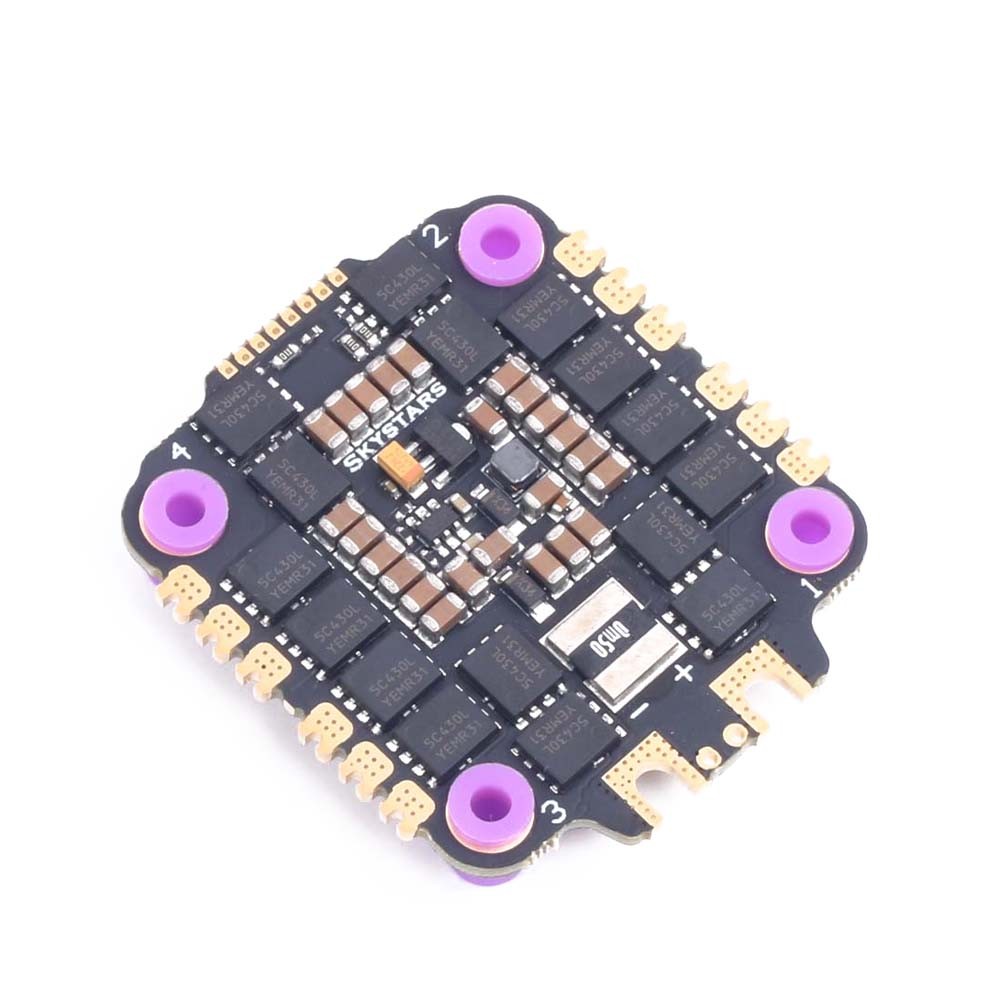

Specifications SkyStars KO60 60A BLHELI_32 4-in-1 30X30 ESC:

Excellent over-current capability

By adopting the best PCB material and PCB production process. Such as the application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with a 6-layer layout design of the board, compared with others that commonly use 4 layers, allowing it to withstand higher current.

Extreme stability and support of 6S LiPo battery

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & electronics imported from USA and Japan.  Plus advanced lead-free SMT Processing technology. It makes ESC fully support the 6s battery and get better performance.

Better Control Performance

Flashed with the latest BLHeli_32 firmware in the factory, support telemetry functions (including voltage, RPMS, & current )


  • Mount: 30.5mm x 30.5mm
  • Supports 3-6S
  • ESC weight: 12g
  • ESC onboard current sensor.
  • Continuous current: 60A
  • Peak current [5 seconds]: 65A
  • Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
  • MCU: STM32F051 Operation frequency: 48MHz
  • Firmware: BLHeli_32
  • BEC: No


  • Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX. Built-in inverter, support 3.3v spectrum satellite receiver, support PPM receiver. The default receiver input is UART 1, the F7 has a built-in inverter that can be used in any free UART.
  • LED: 4 independent LED pads, support WS2812 programming
  • Mounting Holes: Standard 30.5mm square to the center of holes

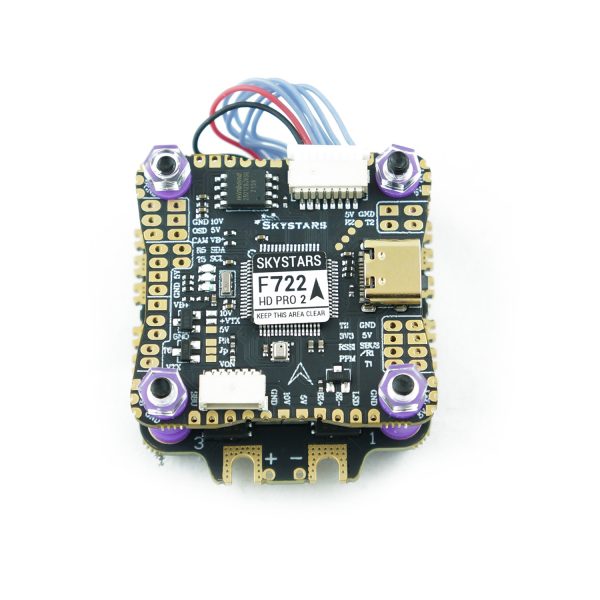

  • Item name: F722HD Pro 2 Betaflight Flight Controller
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • Input Voltage: 3-6S LiPo(11.1V~22.2V)
  • 6 Hardware UARTS (UART123456)
  • MCU: STM32F722RGT6 216MHz
  • Firmware: SKYSTARS F7HD
  • Dimensions: 38.5x40x6.2mm
  • USB connection: USB-C
  • IMU: MPU6000 (SPI)
  • BEC 5V 3A & 10V 3A
  • Buzzer Pad: YES
  • Black box: 16MB
  • CURR pad: YES
  • RSSI Pad: YES
  • Weight: 6.8g

Wiring Diagram


  • 1 x SkyStars F7 F722 HD Pro 2 Flight Controller
  • 1 x SkyStars RC KO60 60A BLHELI_32 4-in-1 30X30 ESC
Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
