SkyStars F7 HD Pro 2 + KO45 3-6S BLHeli_32 4-In-1 ESC 30×30 Fly Tower Stack

The Skystars F7+ KO45 Blheli_32 Fly Tower Stack features the SkyStars F7 HD flight controller, as well as the KO45 45A 4-in-1 ESC to give your multirotor full power!

Note: There is no difference in appearance between the 60A and 45A ESC, which can be distinguished from the MOS tube.

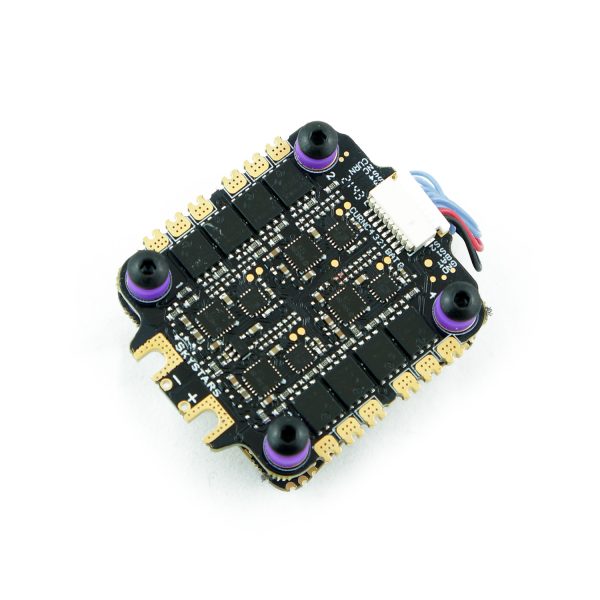

SkyStars KO45 45A BLHELI_32 4-in-1 30X30 ESC:

Excellent over-current capability

By adopting the best PCB material and PCB production process. Such as the application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with a 6-layer layout design of the board, compared with others that commonly use 4 layers, allowing it to withstand higher current.

Extreme stability and support of 6S LiPo battery

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & electronics imported from USA and Japan.  Plus advanced lead-free SMT Processing technology. It makes ESC fully support the 6s battery and get better performance.

Better Control Performance

Flashed with the latest BLHeli_32 firmware in the factory, support telemetry functions (including voltage, RPMS, & current )

Specifications

F722 HD PRO2 FC

• Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX. Built-in inverter, support 3.3v spectrum satellite receiver, support PPM receiver. The default receiver input is UART 1, the F7 has a built-in inverter that can be used in any free UART.
• LED: 4 independent LED pads, support WS2812 programming
• Mounting Holes: Standard 30.5mm square to the center of holes
• Item name: F722HD Pro 2 Betaflight Flight Controller
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• Input Voltage: 3-6S LiPo(11.1V~22.2V)
• 6 Hardware UARTS (UART123456)
• MCU: STM32F722RGT6 216MHz
• Firmware: SKYSTARS F7HD
• Dimensions: 38.5x40x6.2mm
• USB connection: USB-C
• IMU: MPU6000 (SPI)
• BEC 5V 3A & 10V 3A
• Buzzer Pad: YES
• Black box: 16MB
• CURR pad: YES
• RSSI Pad: YES
• Weight: 6.8g

Wiring Diagram

Includes

• 1 x SkyStars F7 F722 Flight Controller
• 1 x SkyStars RC KO60 60A BLHELI_32 4-in-1 30X30 ESC
• 1x Connecting Cable
• 1x XT60 Connector
• 1x Capacitor
