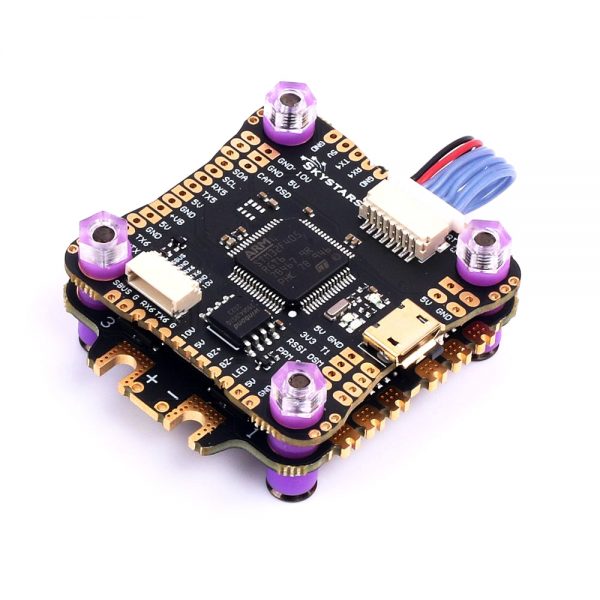

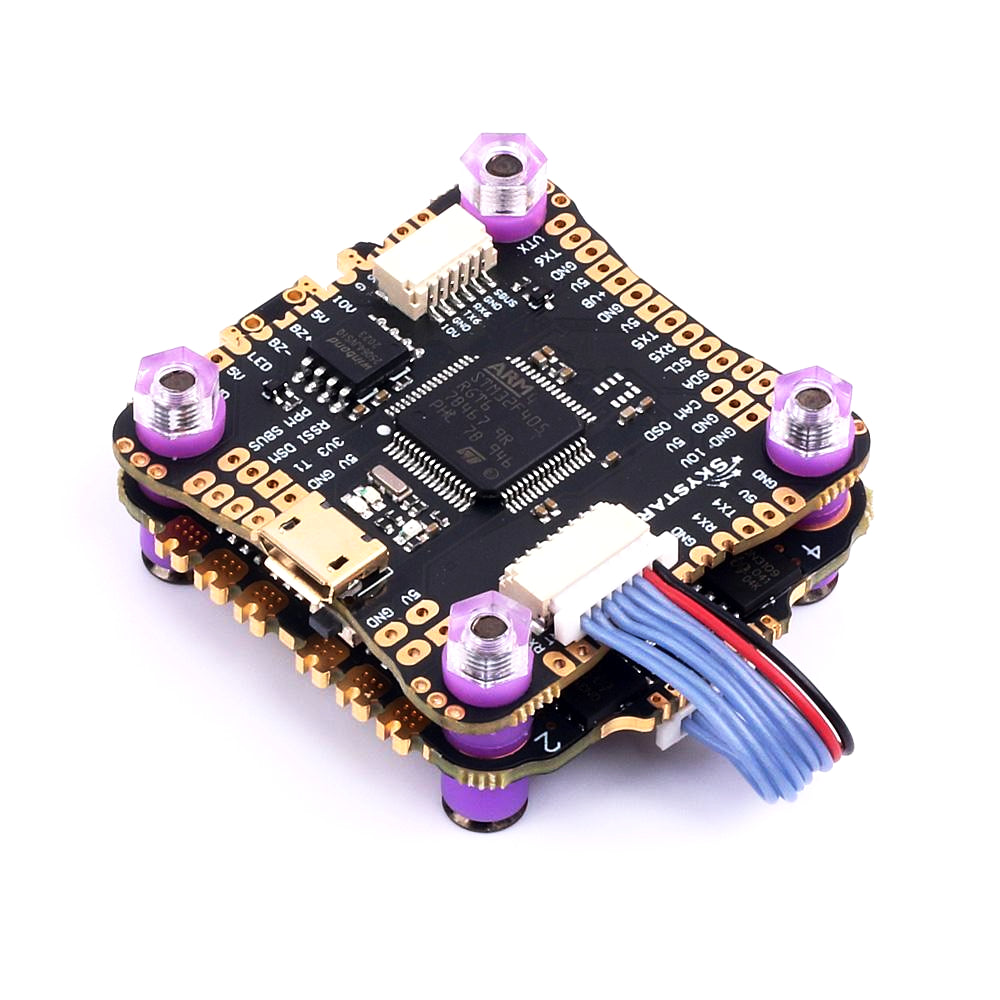

SkyStars F4 + KO45 3-6S BLHeli_S 4-In-1 ESC 30×30 Fly Tower Stack Features and Specifications:
The SkyStars F4+ KO45 Blheli_S Fly Tower Stack features the SkyStars F4 flight controller, as well as the KO45 45A 4-in-1 ESC to give your multirotor full power!
Specifications:
SkyStars F4 Flight Controller
- MCU: STM32F405
- IMU: MPU6000
- OSD: AT7456E
- Blackbox: 8MB
- 6X UARTS(1 2 3 4 5 6)
- WS2812 led Strip: YES
- Baro: No
- Beeper: YES
- BEC: 5V/3A cont
- FC Firmware: Betaflight
- FC Target: SKYSTARSF4 HD
- Physical Mounting: 30.5*30.5mm, 4mm with Grommets 3mm
- Dimensions: 36*36mm
-
Weight: 6g
45A ESC:
- Dimension: 41*46mm
- Mounting Holes: 30.5*30.5mm/¦µ3mm
- Weight: 13.3g
- Supports 3-6S Lipo input
- BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
- Current sensor: YES
- BEC: NO
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: Q-H-30 BLS 16.7
Includes:
- 1 x SkyStars F4 KO45 BLHeli_S Fly Stack
