Rekon7 Long Range HD O3 Frame Kit

Rekon7 Long Range HD O3 Frame Kit Specifications and Features:



Rekon7 Long Range HD O3 Introducing the ULTIMATE FPV Experience

Are you in search of the perfect long-range frame kit for your FPV racing drone? Look no further! We, at RekonFPV, are thrilled to present the Rekon7 Long Range HD O3 Framekit – a game-changer in the world of FPV racing. Our meticulously designed frame kit is engineered to enhance performance, durability, and agility, giving you an edge over the competition.

Rekon7 Long Range HD O3 Unveiling the Frame Kit

Craftsmanship and Innovation in One Package

At RekonFPV, we believe in pushing the boundaries of what’s possible in FPV racing. The REKON7 Long Range Frame Kit is a testament to our commitment to craftsmanship and innovation. Our engineers have poured their expertise into every aspect of this frame kit, ensuring it meets the highest standards of quality.

Key Features and Benefits

• Carbon Fiber Excellence: The frame kit is constructed from premium-grade carbon fiber, striking the perfect balance between lightweight design and structural integrity. This ensures your drone remains agile and durable, even during high-speed races and challenging maneuvers.
• Optimized Layout: Our engineers have meticulously designed the layout of the REKON7 frame kit, focusing on weight distribution and center of gravity. This results in improved stability and precision control, allowing you to navigate through obstacles effortlessly.
• Ample Space: We understand the importance of customization in FPV racing. The REKON7 frame kit offers ample space for mounting your preferred components, giving you the freedom to create a personalized setup that suits your racing style.
• Long-Range Performance: As the name suggests, our frame kit is optimized for long-range flights. The aerodynamic design minimizes drag, while the carefully selected materials enhance signal reception. This means you can explore new horizons without compromising on signal strength or responsiveness.

Precision Engineering for Unmatched Performance

The REKON7 Long Range Frame Kit isn’t just another frame option; it’s a precision-engineered marvel that propels your racing experience to new heights. With its sleek design and aerodynamic contours, you’ll notice a significant boost in speed and agility. Whether you’re competing professionally or taking on freestyle challenges, this frame kit empowers you to outmaneuver your rivals.

Uncompromised Durability

FPV racing can be intense, and drones often endure crashes and collisions. That’s why the REKON7 frame kit is built to withstand the rigors of competitive racing. The carbon fiber construction not only keeps the frame lightweight but also ensures it can handle the occasional impact, allowing you to get back in the race with minimal downtime.

A Glimpse into the Future: REKON7 Frame Kit

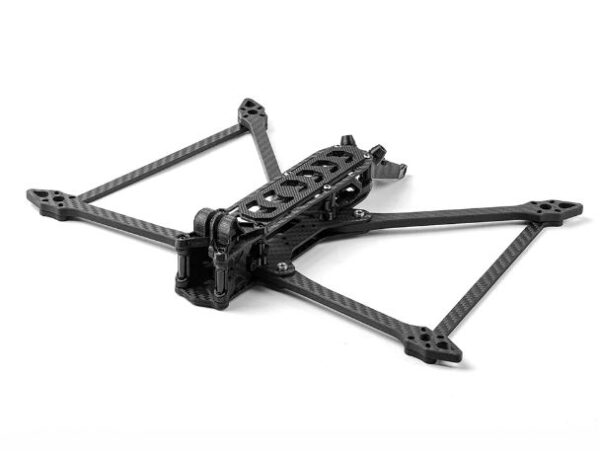

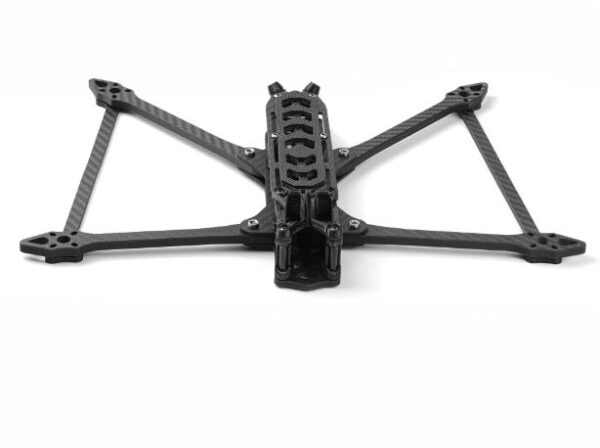

Rekon7 Long Range HD O3 Frame Kit 7 Inch for FPV Racing Drone

Product name:Rekon
Model:Rekon7 LR Frame kit
Material:3K Carbon fiber
Type:7 inch
Wheelbase:324mm
Size:337*246mm
Top plate thickness:2mm
Bottom plate thickness:2mm
Middle plate thickness:2mm
Front arm:6mm
Rear arm:6mm
Frame protection bar:2mm
Camera side plate:2mm
Top and middle plate space:20mm
Flight controller mounting hole:20x20mm
Camera mount:19*19mm/20x20mm
Motor mounting hole:16*16/19*19mm
Weight:0g

Package includes:
1x 2mm top plate
1x 2mm base plate
1x 2mm mid plate
2x 6mm front arm
2x 6mm rear arm
2x 2mm rack protection board
2x 2mm camera side panel
2x 4mm Arm Reinforcement rod
2x M3*28mm black mesh aluminum column
4x M3*20mm black mesh aluminum column
2x M3*18mm black mesh aluminum pillar
4x M4*12 Screws
4x M3*20 Screws
4x M3*16 Screws
4x M3*10 Screws
8x M3*8 Screws
4x M2*20 Screws
1x M2*16 Screws
1x M2*10 Screws
2x M2*4 Screws
1x M5 lock nut (red)
4x M3 self-locking nuts
5x M2 self-locking nuts
8x M3*8 shock-absorption balls
4x M2*4 shock-absorption balls
2x battery straps 20x250mm
1x Battery Anti-slip pad
1x TPU black GoPro holder mount
1x TPU black GPS mount
1x TPU black antenna mount
1x TPU black T-antenna mount
1x TPU black buzzer mount
1x TPU black DJI Air unit Block A
1x TPU black DJI Air unit Block B
1x TPU black DJI O3 holder mount
1x TPU black Camera converting seat

Recommended parts:(not included)
Flight control:Zeus F722
Motor:2806.5
ESC:Zeus 48-60A
Camera:19X19mm/20x20mm
Propeller:7 inches
Battery:6S 1800-4200mAh
