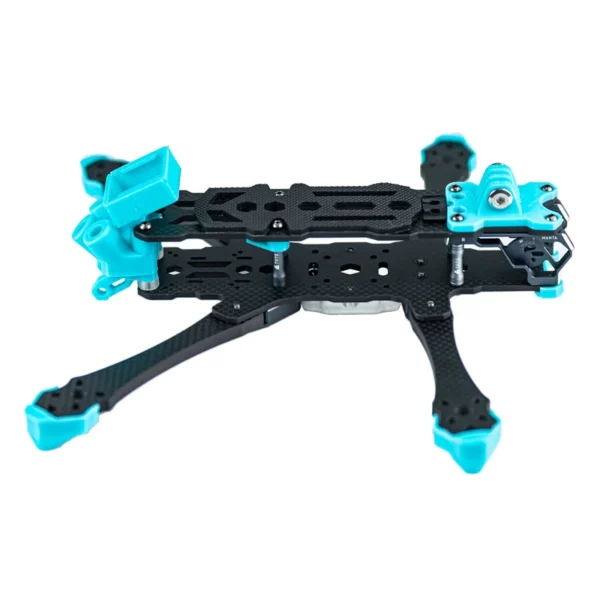

MANTA 6″ AXISFLYING Frame Kit Specifications and Features:
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high-quality carbon plates to bring the MANTA series of freestyle frames with a unique and innovative design to the industry.
- The frame is designed with a K-shaped structure, so the propellers cannot be seen in flight, which has a wider field of vision. Compared with a 5-inch, a 6-inch frame has more power, more flight time, and stronger wind resistance.
- The frame adopts an innovative CNC split aluminum structure design, with a 6MM thickness quick-release design, which is not only convenient but also ensures the strength, stability, and high security of the frame.
- Bottom LED and Beeper for night flying.
- GPS is placed above the antenna for less interference.
- Double strap ties for secure battery installation.
- No props interference, unobstructed flight field of view
The Manta 6″ is the solution for “mid-range” cinematic. This DeadCat T700 carbon frame is sold with a choice of 3D-printed parts for an analog system or an HD system.
SPECIFICATIONS:
- Geometry: Deadcat
- Wheelbase: 262mm
- Weight: 183g (without TPU)
- Bottom plate thickness: 3mm
- Top plate thickness: 3mm
- Carbon: T700
- Top/bottom distance: 25mm
- Arm width: 11.8mm-23.8mm
- Arm thickness: 6mm
- Motor c-clip hole: 7mm
- Camera space: 14-20mm
- Stack mounting : 20*20mm / 30.5*30.5mm
- VTX mounting : 20*20mm / 25.5*25.5mm / 30.5*30.5mm
- Motor mounting: 16*16mm / 19*19mm
RECOMMENDED PARTS (NOT INCLUDED):
- Props: 6/6.1″
- Motors : Axis C246 – 1650KV
- Battery: Tattu 1550mAh
- Stack: Istack Axis
INCLUDED:
- 1x Manta 6″ frame
- 2x Strap
- 1x TPU set
- 2x M2*7 screw
- 2x M3*9 screw
- 4x M3*25 standoff
- 2x M3*16 screw
- 2x M3*12 screw
- 2x M3*20 standoff
- 2x M3*16 screw
- 10x M3*8 screw
- 4x M3*10 screw
- 4x M3*12 screw
- 12x M3*9 screw
