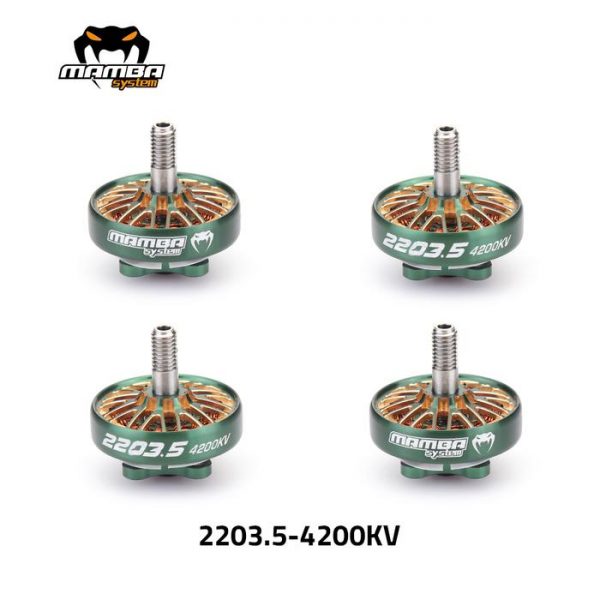

MAMBA TOKA 2203.5 4200KV Motor (Set of 4 Green Motors) (For Roma F35 Framekit)

6,299.00

Overview:

  • Amazingly New and Beautiful Motors for the Roma F35 Freestyle Framekit in an amazing shade of Green.
  • 3-4s compatible @ 4200KV
  • The Mamba Toka 2203.5 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3″-4″ builds!

Availability: Only 1 left in stock

2 people are viewing this product
SKU: SKU779909802 Categories: ,
Spread the love

MAMBA TOKA 2203.5 4200KV Motor (Set of 4 Green Motors) (For Roma F35 Framekit) Description:

KV: 4200

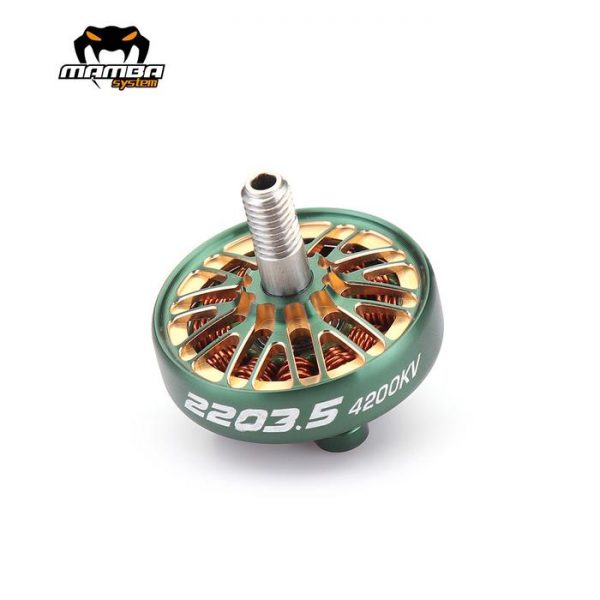

Mamba Toka 2203.5 4200KV Motor

  • Overall Dimension:Φ28.9×29.4mm
  • Prop mounting shaft diameter:5mm
  • Installation hole position:16×16mm,M3
  • Prop: 3.5inch
  • Bearing:9*4*4
  • Shaft Diameter:4.0mm
  • Lead Wire Size:24AWG×190mm
  • Slots/Poles:12N14P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:22mm
  • Stator Height:3.5mm
  • Rated Voltage:3~4S (12.6V~16.8V)
  • Peak Current: 35.21A
  • ldle Current:2.2A
  • Maximum Power: 567.23W
  • Internal Resistance:65mΩ





Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
