Sale!

MAMBA TOKA 2203.5 2200KV Motor (Set of 4 Green Motors) (For Roma F4 Framekit)

5,999.00

Overview:

  • Amazingly New and Beautiful Motors for the Roma F4 Freestyle Framekit in an amazing shade of Green.
  • 3-4s compatible @ 3300KV

Out of stock

SKU: SKU779903665745745 Categories: ,
Spread the love

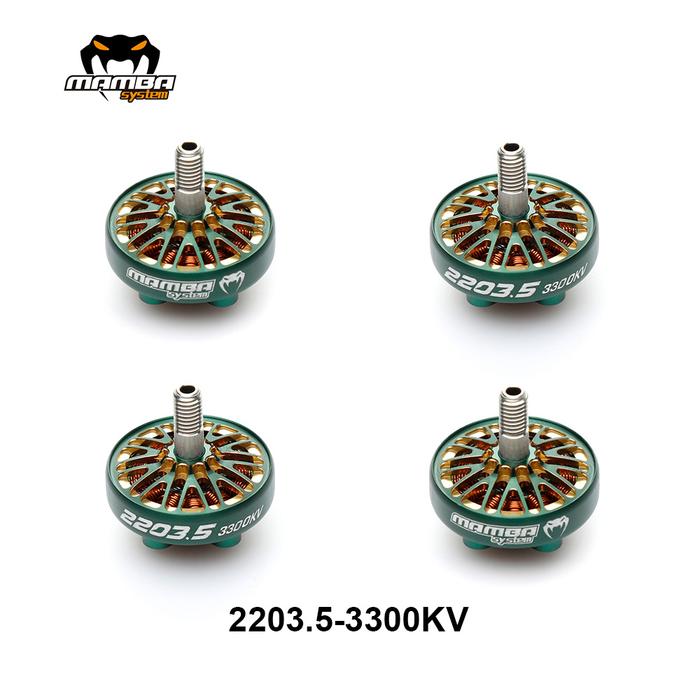

MAMBA TOKA 2203.5 3300KV Motor (Set of 4 Green Motors) (For Roma F4 Framekit) Description:

KV: 3300

  • Overall Dimension:Φ28.9×29.4mm
  • Prop mounting shaft diameter:5mm
  • Installation hole position:16×16mmM3
  • Prop:  3.5inch
  • Bearing9*4*4
  • Shaft Diameter:4.0mm
  • Lead Wire Size24AWG×190mm
  • slots/poles:12N14P
  • Magnet Wire: 240 Enameled Wire
  • Stator Diamter22mm
  • Stator Height:3.5mm
  • Rated Voltage:3~4S (12.6V~16.8V)
  • Peak Current: 29.78A
  • ldle Current:10V/1.5~2.2A
  • Maximum Power: 475.1W
  • Internal Resistance:80mΩ



Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
