MAMBA Stack Basic F405 Mini MK3.5 40A 6S 8bit

The Diatone Mamba F405 Mini MK3.5 40A Basic Stack brings BIG power all in a 20×20 mounting size! This stack can push 40A all while bringing you the latest features!

MAMBA Stack Basic F405 Mini MK3.5 40A 6S 8bit Features:

• Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference
• The standard flight controller (30.5×30.5) adds a spare pad
• Self-recovery insurance to the receiver’s 5V power supply
• LED signal selection (when Mamba Led sys avaiable）
• Increased camera VCC power supply pad
• TVS instant high voltage protection 30V
• F405 models support F.prot
• BEC short circuit protection
• Super Big Soldering Pad
• Increased pad area

Updates

• When you connect the USB, the receiver and OSD settings can be saved
• The pad area of the Mini flight controller (20×20) increased by 140%
• Upgraded anti-interference cable
• Added I2C function
• Use TypeC

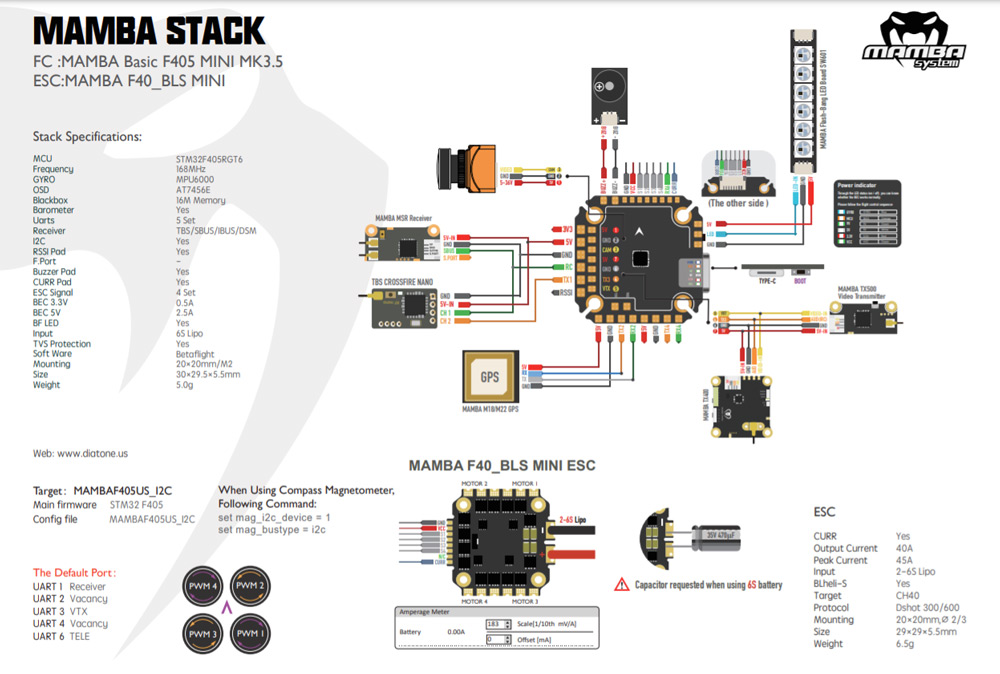

Specifications

MAMBA Basic F405 MINI MK3.5 FC

• MCU: 168MHz STM32F405RGT6
• Blackbox: 16M Flash Memory
• Input: 2~6S Lipo (8.4~25.2V)
• BEC:3.3V 0.5A& 5V 2.5A
• ESC Soft: Dshot300/600
• MOUNTING: 20mm, M2
• LED Controller: BF LED
• TVS Protection: Yes
• GYRO: MPU6000
• Power Led: Yes
• Barometer: Yes
• UARTS: 5 Set
• RSSI: Yes
• Buzz: Yes
• OSD: Yes

MAMBA F40 MINI ESC

• INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
• CONTINUE CURRENT: 40A×4
• BURST CURRENT: 45A (10S)
• MOUNTING: 20mm, M3/M2
• Target: BLHeli_S CH40
• SOFT: Dshot300/600
• TVS Protection: Yes
• BEC: No

Includes

• 1x MAMBA Basic Stack F405 Mini MK3.5 40A
• 1x AMASS Original XT60
• 2x 16AWG 60mm Cable
• 1x Mounting Adapter
• 60x Hard Dampers
• 40x Soft Dampers
• 2x 8pin sh1.0
• 1x Capacitor
• 1x DJI 8 Pin
