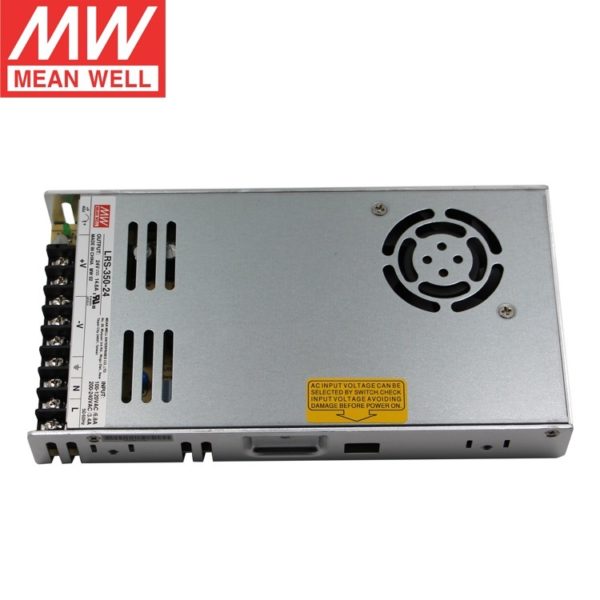

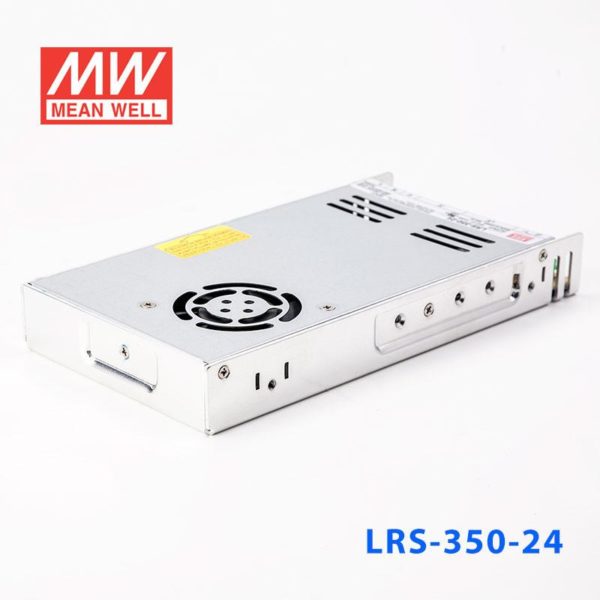

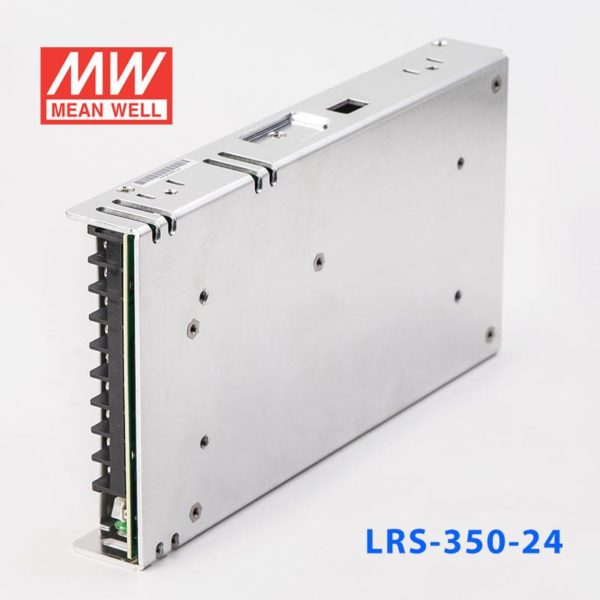

LRS-350-24 Mean Well SMPS – 24V 14.6A – 350W Metal Power Supply

2,299.00

Overview:

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 24V.

In addition to the high efficiency of up to 89%, with the built-in long-life fan, LRS-350 is indeed a workhorse of a power supply. LRS-350 series serves as a high price-to-performance power supply solution for various industrial & hobby applications.

      • Output Voltage           24V
      • Type                              Enclosed Type
      • Approx. Wattage        350W
      • Features                       Standard
      • Series                            LRS(Reliable)
      • Mechanical Form       Enclosed
      • IP Level                        Non-Waterproof
      • Input Voltage              115V/230V by switch

Out of stock

Spread the love

Features:

  • Output Voltage           24V
  • Type                             Enclosed Type
  • Approx. Wattage       350W
  • Features                      Standard
  • Series                           LRS(Reliable)
  • Mechanical Form     Enclosed
  • IP Level                      Non-Waterproof
  • Input Voltage            115V/230V by switch

Specifications:

  • No-load power consumption <0.5W for 150W;  <0.75W for 200W/350W
  • AC input selectable by switch
  • Withstand 300VAC surge input for 5 seconds
  • Ultra-compact and 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 70oC
  • Protections:  Short circuit / Overload / Over voltage / Over temp.
  • Cooling by free air convection (150W/200W);  forced air cooling by built-in DC fan (350W)
  • Compliance to IEC/EN60335-1(PD3) and  IEC/EN61558-1,-2-16 for household appliances (150W)
  • Operating altitude up to 5000 meters
  • LED indicator for power on
  • High efficiency, long life, and high reliability
AC input voltage range 115 / 230VAC by switch
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% by potentiometer
Overload protection Range 110%~140%
Overload protection Type Hiccup mode, auto-recovery
Overvoltage protection Range 115%~145% rated output voltage
Overvoltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -25~+70°C (refer to output derating curve)
Safety standards UL60950-1 approved
EMC standards Design refers to EN55022 class A

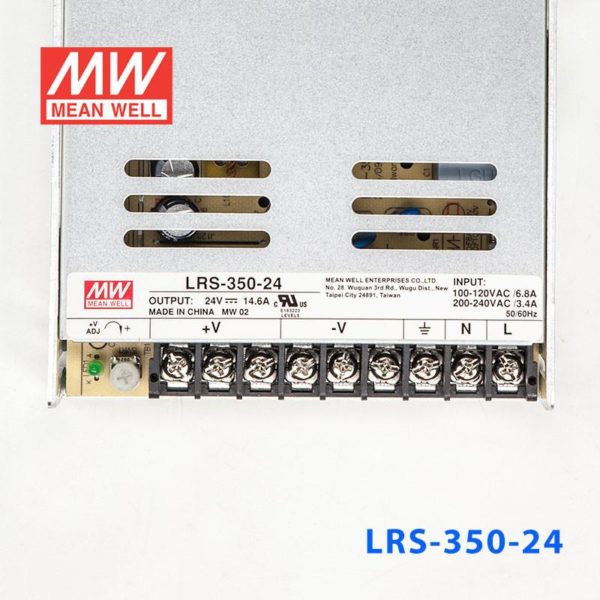

Connection 9P/9.5mm pitch terminal block
Dimension (LxWxH) 215x 115x 30



Weight 0.4 kg
Dimensions 18 × 12 × 6 cm
