iFlight XL7 V5 7 inch Long Range FPV Freestyle Frame Kit

5,999.00

 Overview:

  • iFlight is proud to announce the release of the XL series V5 Frames!

  • Specially designed to fit the Caddx Digital FPV system.

  • The main advantages of the XL series V5 are in the flight performance, with stronger and thicker arms.

Out of stock

SKU: SKU6753879458600 Categories: ,
Spread the love

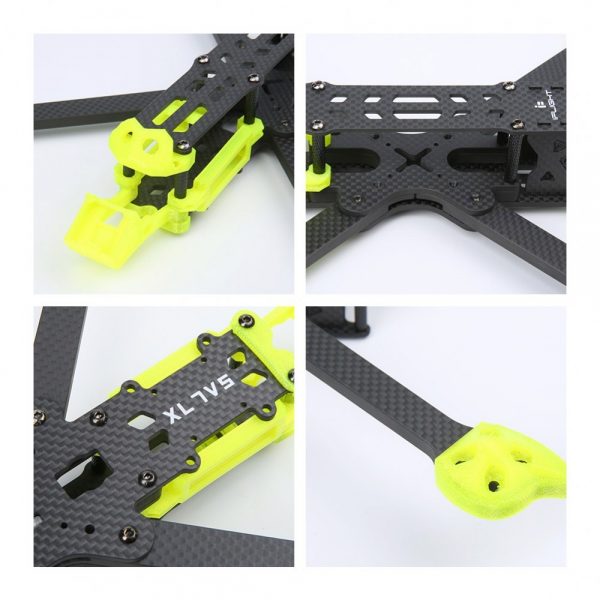

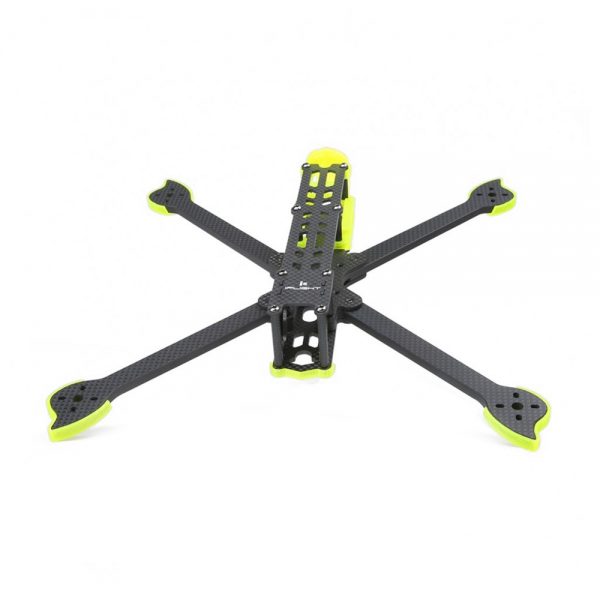

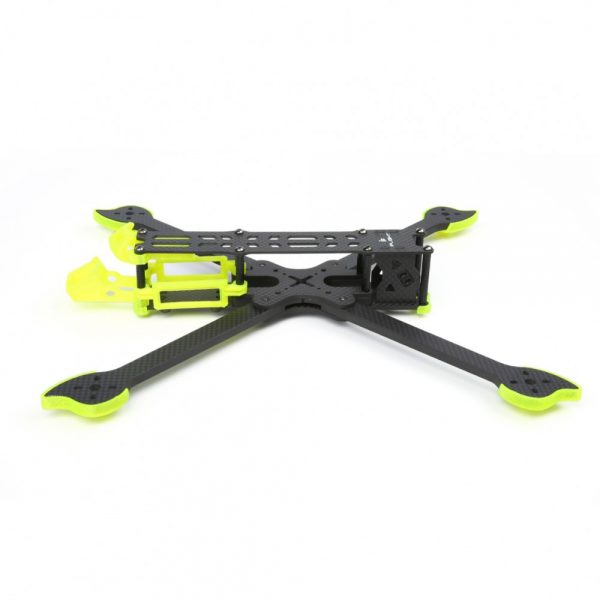

iFlight XL7 V5 7 inch Long Range FPV Freestyle Frame Kit Specifications and Features:



iFlight is proud to announce the release of the XL series V5 Frames! Specially designed to fit the Caddx Digital FPV system. The main advantages of the XL series V5 are in the flight performance, with stronger and thicker arms. The XL series V5 frames fly balanced because of the true X configuration and wide stance. These main changes provide great flight stability.

Features:

  • 360° TPU protection and Antenna mounts
  • Fits both 30.5×30.5 and 20×20 stacks
  • Perfectly compatible with DJI Air Unit
  • Full 3K Carbon Fiber airframe
  • Popular True-X configuration

Specifications:

  • Standoff Height: 23mm (4pcs), 32mm(4pcs)
  • Mounting Holes: 30.5*30.5mm, 20*20mm
  • 6mm arms, 1.5mm vertical side plates
  • Mounting Holes: 30.5*30.5mm
  • 3mm upper & bottom plate
  • 2mm top plate

XL7

  • Body Dimensions: 228x228mm

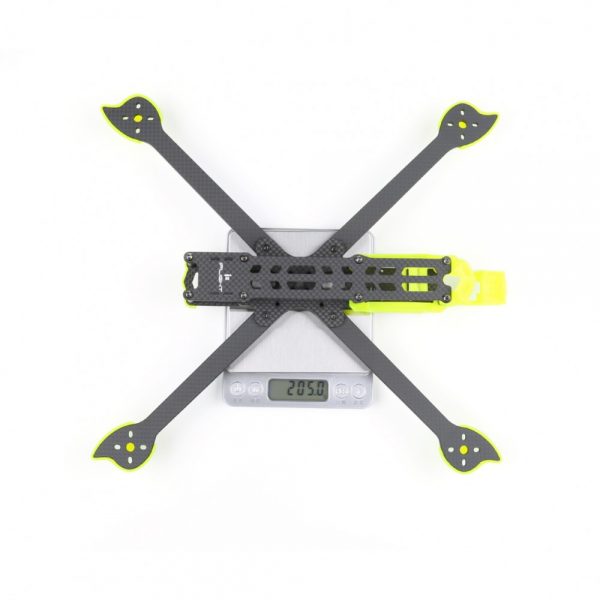

  • Frame weight: 205g
  • Wheelbase: 322mm
  • Arm Length: 7″

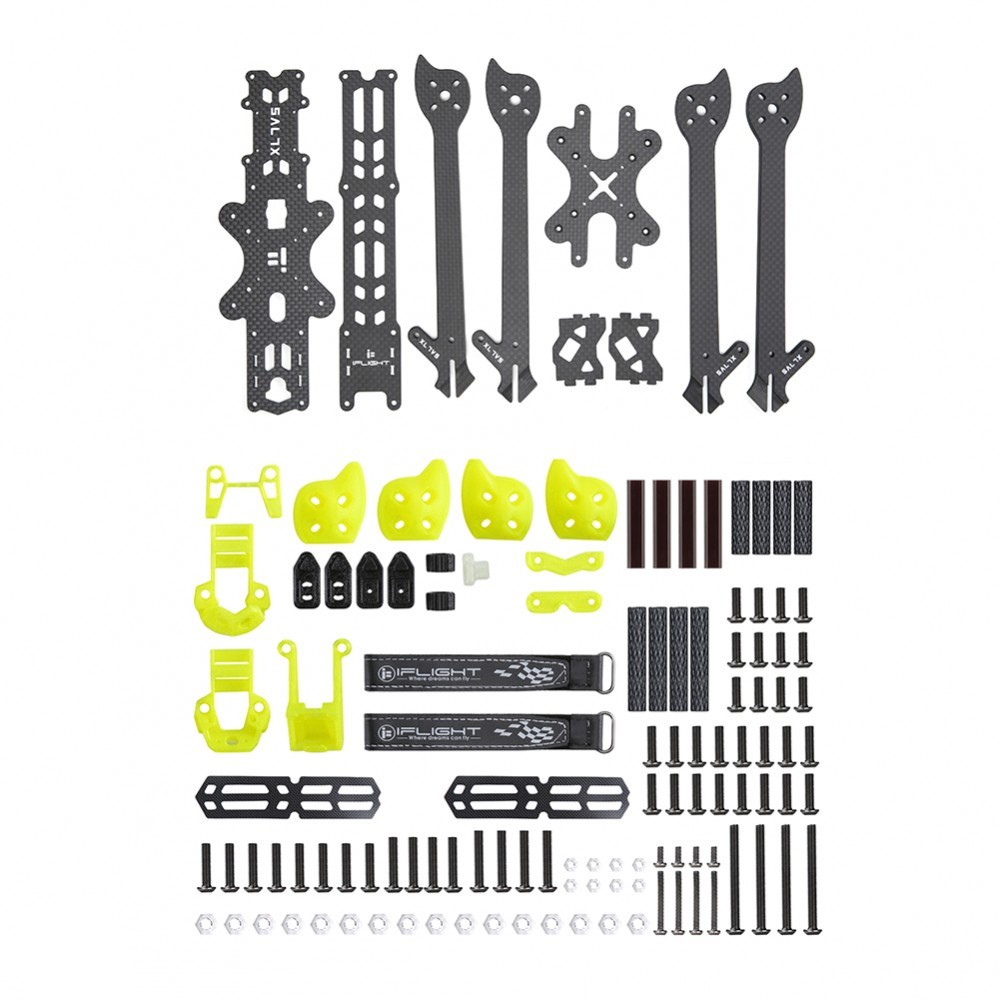

Includes:

  • 1x iFlight XL7 Series V5 Frame
  • 1x TPU Mount of the LED illuminated LoGo
  • 1x TPU bottom plate front protective mount
  • 1x TPU bottom plate rear protective mount
  • 1x TPU DJI Air Unit Antenna Mount
  • 1x TPU VTX antenna mount
  • 4x Armguard/Motor mount
  • 2x Anti-slip battery mat
  • 1x TPU GPS mount
  • 2x Battery straps
  • 1x Screw Bag



Weight 0.4 kg
Dimensions 18 × 20 × 6 cm
