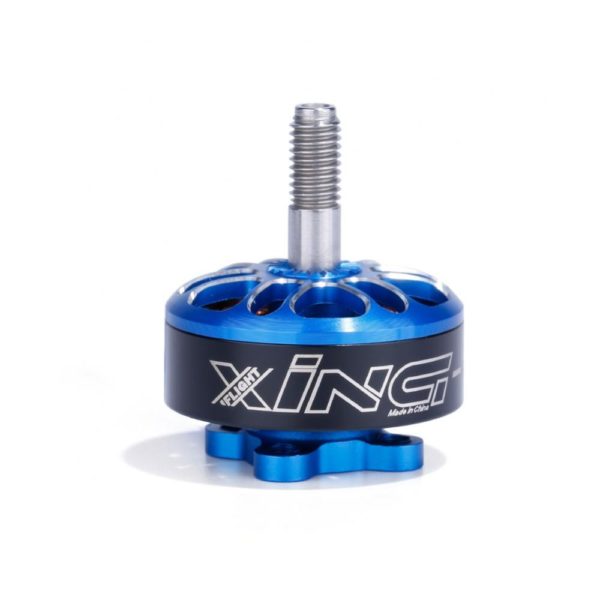

iFlight XING-E 2306 2450kv 4s FPV Motor

1,049.00

 Overview:

Out of stock

SKU: SKU8849334950-1 Category:
Spread the love

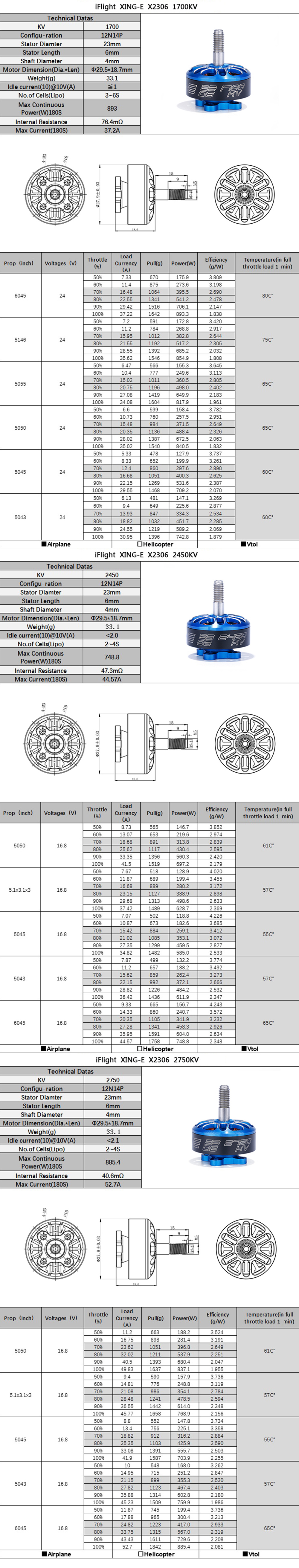

iFlight XING-E 2306 2450kv 4s FPV Motor Specifications and Features:

  • Configuration: 12N14P
  • Stator Diameter: 24mm
  • Magnets: N52SH Curved
  • Bearing Size: 9x4x4
  • Shaft Diameter: 4mm / Steel
  • Base Mounting Pattern: 16x16mm M3 Thread
  • Motor Dimension:29.5×18.7mm
  • Weight:33.1g (150mm wires)
  • Idle Current @12.6v (Io):2.1A
  • Cells (LiPo): 2-6S
  • Max Burst Current <10s:55.22A
  • Max Power (W) 60s:885.4W
  • Internal Resistance (Rm): 40.6mΩ
  • Motor Wire Length: 150mm / 20AWG

Weight 0.25 kg
Dimensions 18 × 10 × 10 cm
