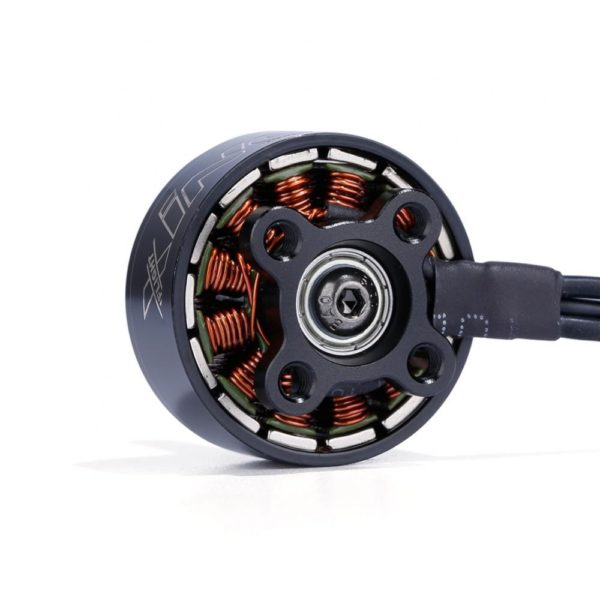

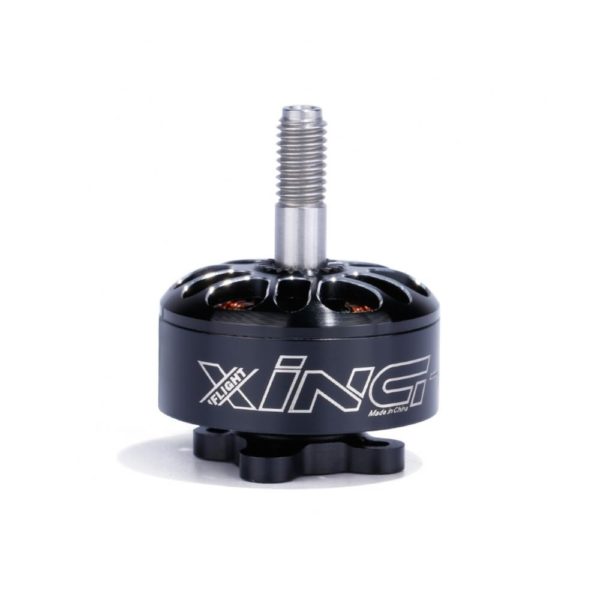

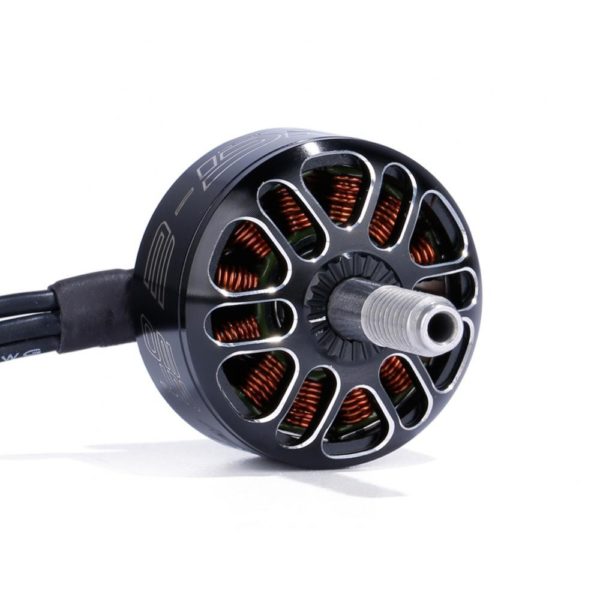

iFlight XING-E 2207 2450kv 4s FPV Motor Specifications and Features:
- Configuration: 12N14P
- Stator Diameter: 24mm
- Magnets: N52SH Curved
- Bearing Size: 9x4x4
- Shaft Diameter: 4mm / Steel
- Base Mounting Pattern: 16x16mm M3 Thread
- Motor Dimension: 28.5×19.7mm
- Weight: 33.8g (150mm wires)
- Idle Current @12.6v (Io): 1.2 A
- Cells (LiPo): 4S
- Max Burst Current <10s: 35.22A
- Max Power (W) 60s: 845W
- Internal Resistance (Rm): 81.5mΩ
- Motor Wire Length: 150mm / 20AWG
