Sale!

iFlight SucceX Force 5.8GHz 800mW Adjustable VTX

2,999.00

 Overview:

    • Input voltage: 7V~36V (@12V/380mA@800mW)
    • Video standard: NTSC /PAL
    • Output voltage/ Max current: 5V 1A
    • Power levels: PIT/25mW/100mW/400mW/800mW
    • Power draw @12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@100mW,250mA@400mW, 380mA@800mW

Out of stock

SKU: SKU6748023 Category:
Spread the love

iFlight SucceX Force 5.8GHz 800mW Adjustable VTX Specifications and Features:



  • Stable output power
  • 5 Power levels up to 800mW;
  • 48 Channels (including Raceband)
  • Fast frequency lock, no startup interference with other pilots
  • Built-in output power self-check functionality
  • VTX telemetry with IRC Tramp protocol

Tips:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Specs:

  • Input voltage: 7V~36V (@12V/380mA@800mW)
  • Video standard: NTSC /PAL
  • Output voltage/ Max current: 5V 1A
  • Power levels: PIT/25mW/100mW/400mW/800mW
  • Power draw @12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@100mW,250mA@400mW, 380mA@800mW
  • Channels: 48 (including Raceband)

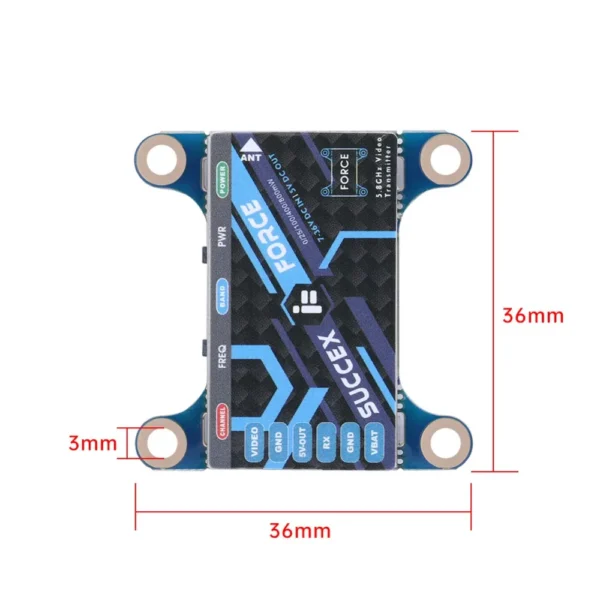

  • Small size: 36*36*3mm
  • Mounting pattern: 30.5×30.5 (4x M3)

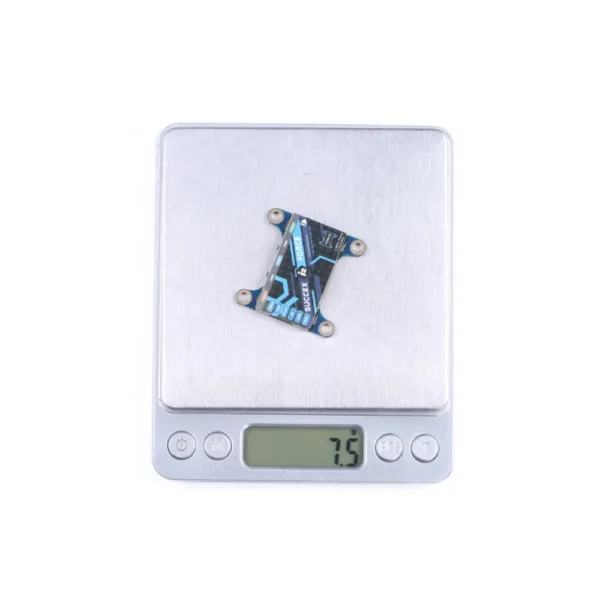

  • Lightweight: 7.5g (excluding antenna)
  • VTX telemetry: IRC Tramp
  • Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
  • All our VTX tables can also be found here: LINK
  • IRC Tramp VTX table values: 25/25mW, 100/100mW, 400/400mW, 600/800mW

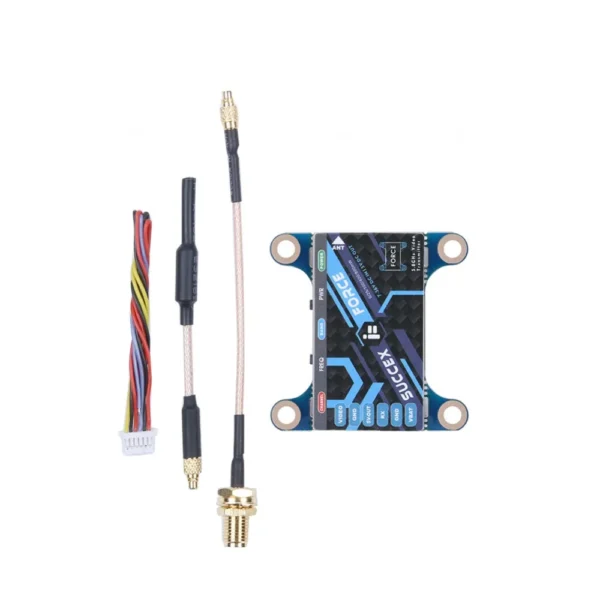

Package includes:

  • SucceX Force 800mW adjustable VTX x 1pc
  • MMCX to SMA Female pigtail 100mm x 1pc
  • 5.8GHz MMCX whip antenna 65mm x 1pc
  • SH1.0 6P cable 100mm x 1pc
Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
