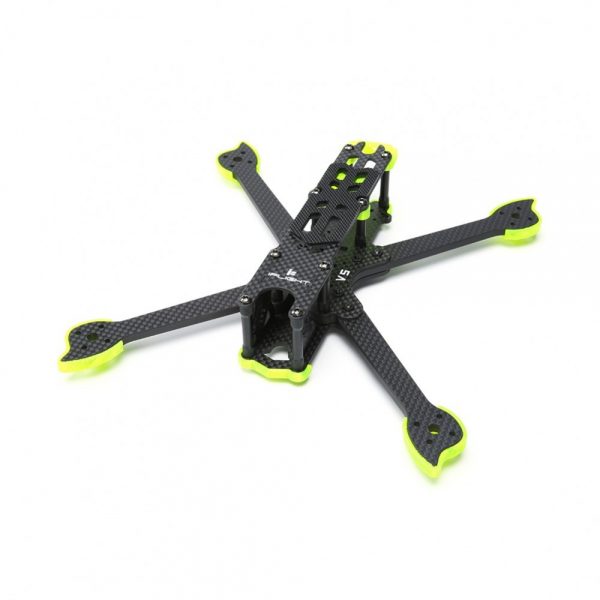

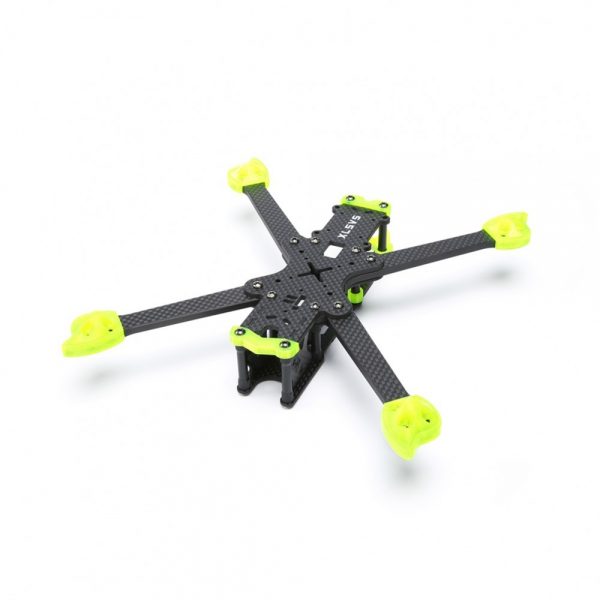

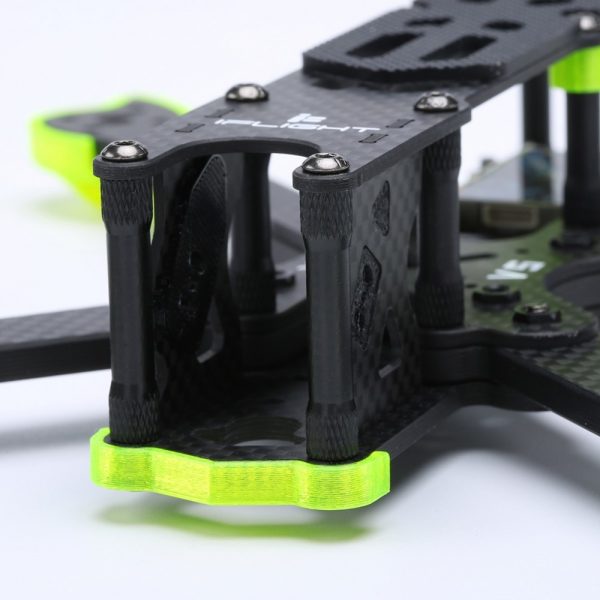

iFlight Nazgul XL5 V5.1 5″ Freestyle Frame Kit

iFlight Nazgul XL5 V5.1 5″ Freestyle Frame Kit Specifications and Features:



The XL5 V5 by iFlight is a 5″ size quadcopter that is suitable for the Caddx Vista HD System and the DJI Digital FPV System. The XL series V5 frames have an incredible flight performance, strong and thick arms, and is well-balanced frame due to True-X configuration and wide stance.

Note: Electronics, camera, battery, and GoPro mount NOT included

Features

• 5″ version also fits 5.1″ style propellers
• 5mm arm design for more durability
• Fits both 30.5x and 20x stacks
• Popular True-X configuration
• Fit for the 22xx 23xx motors
• TPU crash-guards
• Easy-Swap arms

Specifications

• FC pattern: 30.5*30.5/20*20 mm

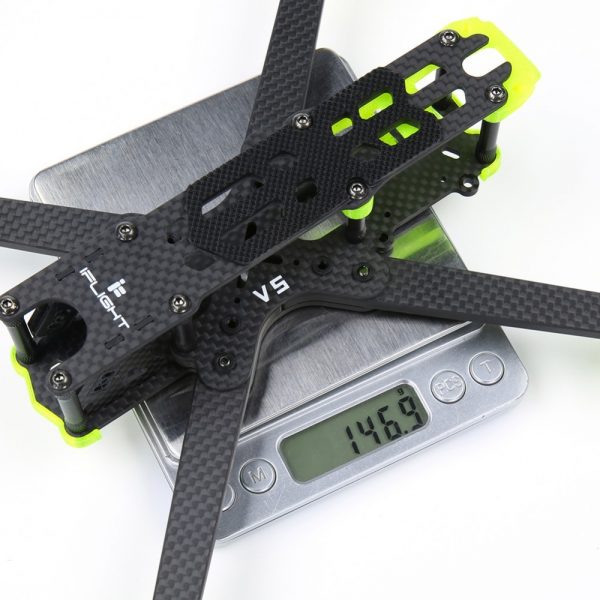

• Weight: 146.9g (with TPU parts)
• Propeller size: 5 inch /5.1 inch

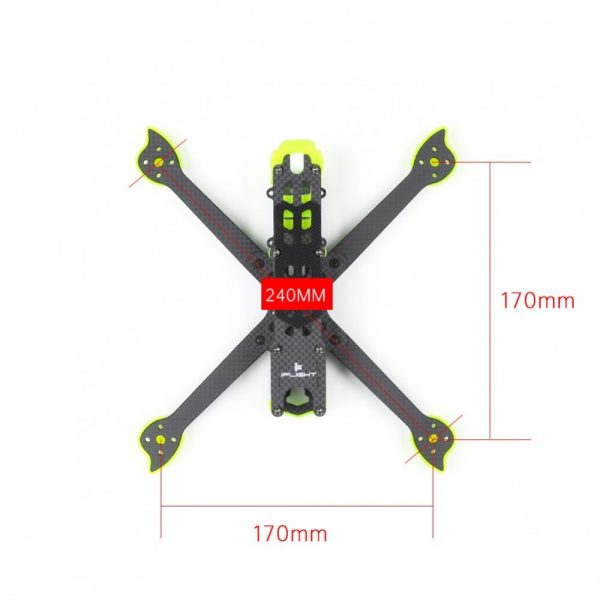

• Wheelbase: 240mm*240mm
• FPV cam spacing: 19mm
• Body size: 170*170mm
• Motors: 22xx 23xx

Recommended Parts (Not Included)

• XING-E 2207 FPV Motor （6S 1800kv / 4S 2750kv)
• SucceX-E F4 45A flight stack
• 5140 Props
• GoPro Mount

Includes

• 1x iFlight Nazgul XL5 V5 5″ Freestyle Frame
• 1x TPU Camera Mount Adapters
• 1x TPU VTX Antenna Mount
• 2x Battery Anti-slip Mat
• 1x 3D Printed Parts
• 1x Hardware Kit
• 2x LiPo Straps
