iFlight Nazgul Evoque F5 V2 Frame Kit Specifications and Features:
iFlight Nazgul Evoque F5 V2 Frame Kit: The Ultimate FPV Racing Frame
Introduction
Welcome to our comprehensive guide on the iFlight Nazgul Evoque F5 V2 Frame Kit! As avid FPV (First Person View) racing enthusiasts ourselves, we understand the importance of finding the perfect frame that combines durability, performance, and aesthetics. In this article, we will delve into the features, specifications, and benefits of the iFlight Nazgul Evoque F5 V2 Frame Kit, showcasing why it is the ultimate choice for FPV racing enthusiasts. Let’s dive right in!
Unparalleled Durability and Construction
When it comes to FPV racing, durability is paramount. The iFlight Nazgul Evoque F5 V2 Frame Kit is meticulously designed with high-quality materials, ensuring exceptional durability even in the most demanding racing conditions. Crafted from premium carbon fiber, this frame kit strikes the perfect balance between strength and weight, providing optimal performance without compromising on robustness.
Innovative Design for Enhanced Performance
The iFlight Nazgul Evoque F5 V2 Frame Kit boasts an innovative design that has been optimized for superior performance. With its X-structure configuration, this frame offers excellent stability, maneuverability, and responsiveness, allowing pilots to push their limits on the race track. The thoughtful placement of components and optimized center of gravity further contribute to an enhanced flying experience.
Customizability and Flexibility
One of the standout features of the iFlight Nazgul Evoque F5 V2 Frame Kit is its remarkable customizability. Designed with modularity in mind, this frame allows for easy customization according to individual preferences and racing styles. Whether you prefer a top-mounted or bottom-mounted battery, this frame kit accommodates both options, granting you the freedom to optimize your setup for maximum performance.
Hassle-Free Assembly and Maintenance
As avid FPV racers ourselves, we understand the value of a hassle-free assembly process. The iFlight Nazgul Evoque F5 V2 Frame Kit comes with a user-friendly design that simplifies the assembly process, ensuring that you spend less time tinkering and more time racing. Additionally, the frame’s thoughtful layout facilitates easy maintenance, allowing you to quickly replace components and get back in the air without delay.
Aesthetically Pleasing and Eye-Catching
Apart from its exceptional performance and functionality, the iFlight Nazgul Evoque F5 V2 Frame Kit stands out with its visually striking design. The sleek lines, bold color options, and attention to detail make this frame kit an absolute head-turner. Whether you’re a seasoned racer or a hobbyist, the Nazgul Evoque F5 V2 will not only impress you with its performance but also with its aesthetics.
Conclusion
In conclusion, the iFlight Nazgul Evoque F5 V2 Frame Kit is the epitome of excellence when it comes to FPV racing frames. With its unparalleled durability, innovative design, customizability, hassle-free assembly, and visually appealing aesthetics, it outshines the competition in every aspect. Whether you’re a professional racer or a passionate hobbyist, the Nazgul Evoque F5 V2 Frame Kit will undoubtedly take your FPV racing experience to new heights.
So why wait? Get your hands on the iFlight Nazgul Evoque F5 V2 Frame Kit today and elevate your FPV racing game to the next level!
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission
Specially Designed Heatsink for DJI O3 Air Unit
New Camera Mount for a wider camera FOV with TPU damping inserts
New Side Panels to perfectly fit the O3 Air Unit in the back
New Dual 5.8G VTX Antenna TPU mount
Latest Nazgul Frame Upgrades for Maximum Protection
Optional Parts to select (not included in frame kit):
New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery
Single DJI VTX Antenna TPU to install the original DJI O3 set included antenna.
If you want to upgrade your Nazgul Evoque F5 V1 with the DJI O3 Air Unit read this:
– The FC (Flight Controller) to O3 VTX connector is different than the older Caddx Vista/Polar plug. You’ll need to DIY.
– The RX (Receiver) position changed. V1 antenna length is 75mm, V2 is 220mm. You’ll need to DIY.
– The XT60 plug was changed, you’ll need to de-solder the V1 plug and install the V2 plug. Included in the frame kit.
– If you’re going from F5X V1 to F5X V2 all motor wires will have the same length.
– If you’re going from F5X V1 to F5D V2 the back motor wires need to be extended, since you change frame geometry.
– The Antenna TPU in the back comes in 2 Versions; One for the original single DJI VTX antenna, or one for the dual antenna setup. The kit includes a dual antenna TPU. 2x 5.8G LHCP antennas need to be installed.
– The Nazgul Evoque F5 V2 BNF comes with a new Anti Spark filter pre-installed. Please select the option to purchase separately; it’s not included in the frame kit.
December 13, 2022: New silicone inserts have been designed to replace the TPU ones，which are holding the 03 cam in the side panels.

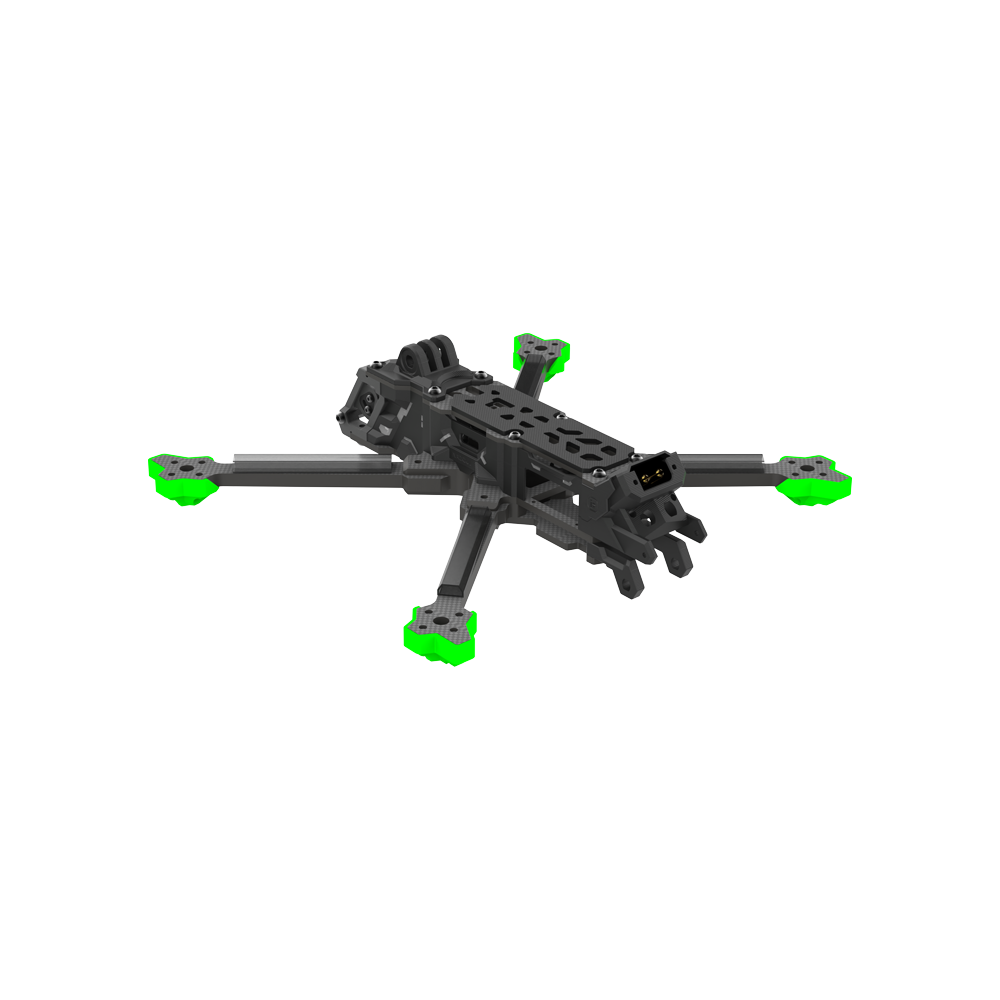

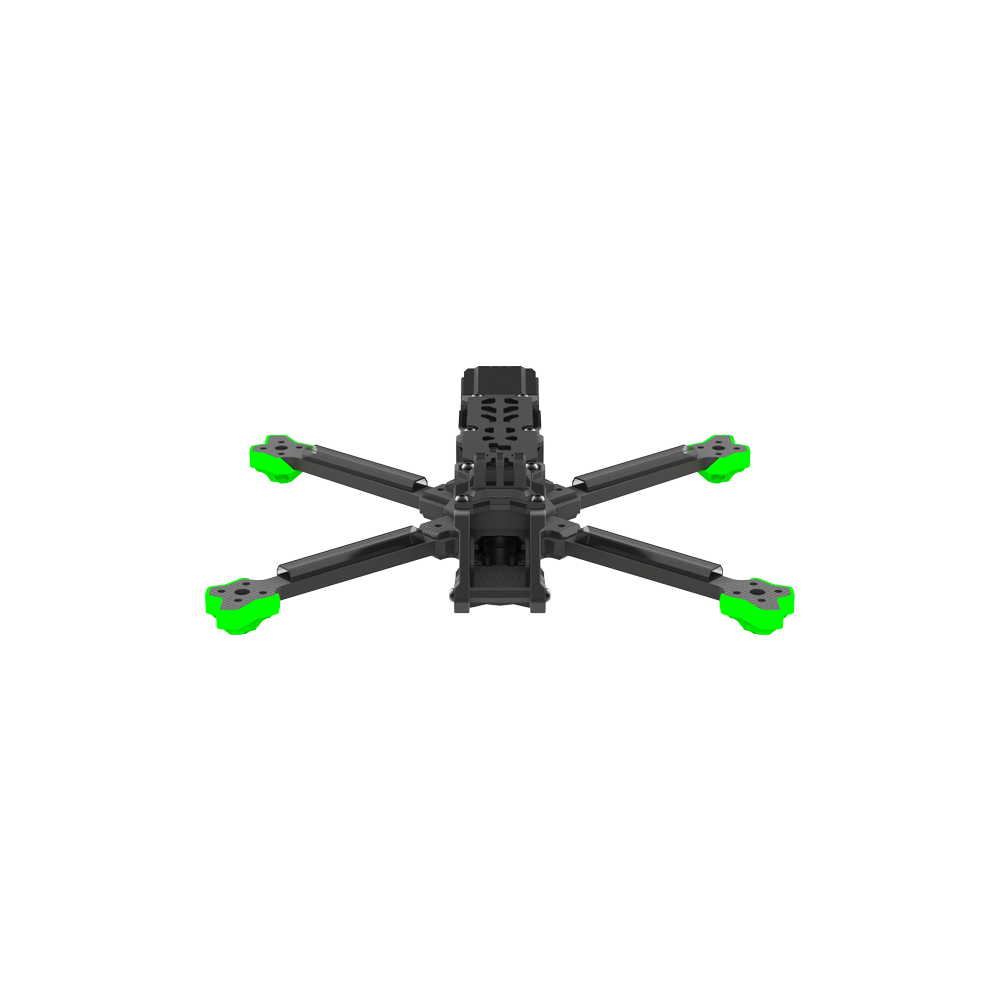

Product Name: Evoque F5 V2 Frame Kit
Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
Frame Dimension: L258*W199*H25 mm (Squashed X) / L190*W136*H36 mm (DeadCat)
Frame Body Dimension: 36mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Motor Mounting: 16x16mm
VTX Mounting: 25.5*25.5/Φ1.6mm
Weight: 150grams (Included no TPU Parts)
1 x Evoque F5 V2 Frame Kit
1x O3 Air Unit Heatsink
2x O3 IPEX to RP-SMA Antenna Pigtails
1 x O3 Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Armguard
1 x Front Bumper TPU
1 x Rear Bumper TPU
2 x Anti-slip Battery Pad
2 x Battery Strap (20*250mm)
In the Box
-
Evoque F5 V2 Frame Kit x 1
-
Heatsink x 1
-
Ipex-SMA Adapter Cable x 2
-
Dual Antenna VTX TPU x 1
-
Battery pads x 1
-
Battery strap x 2
WIRING DIAGRAM
