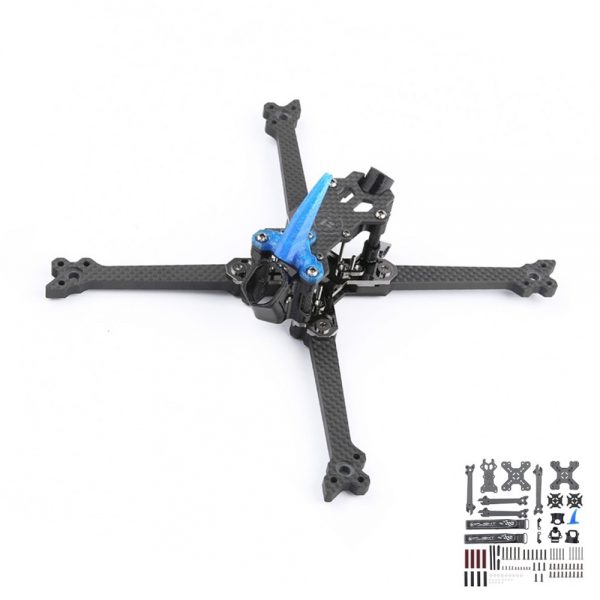

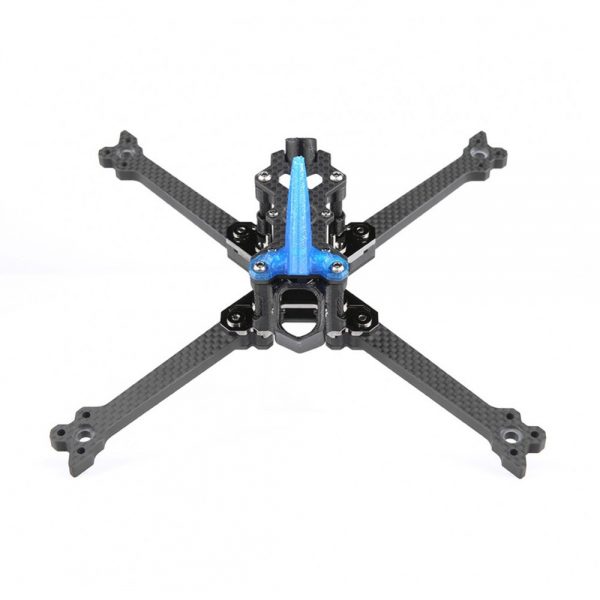

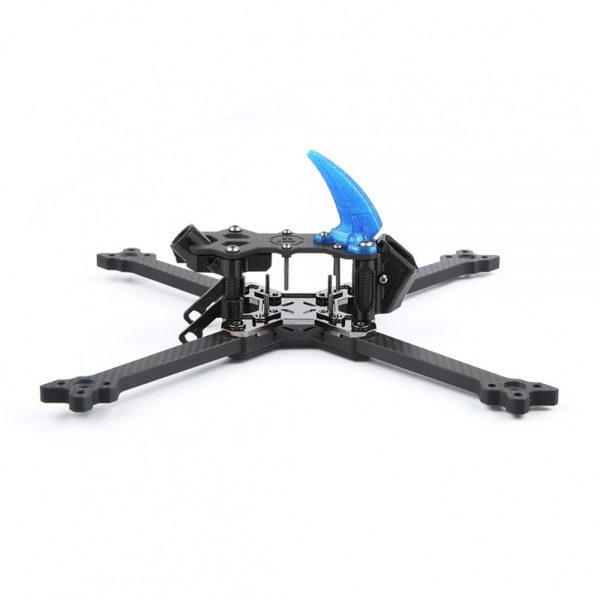

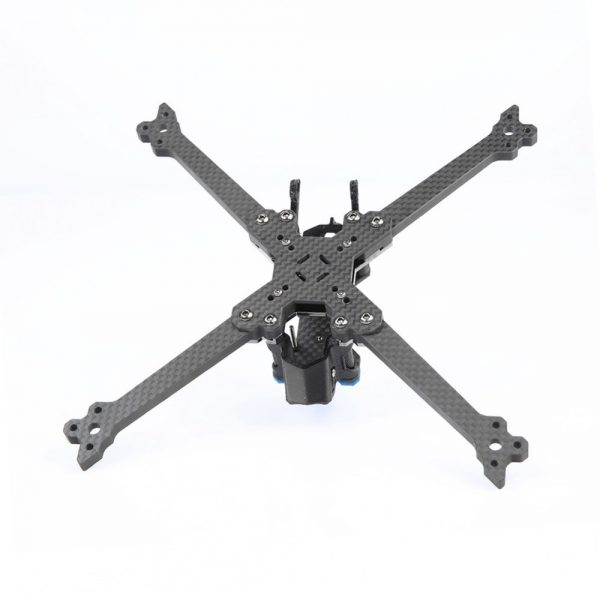

iFlight Mach R5 5″ Racing Carbon Fiber Frame Kit

iFlight Mach R5  5″ Racing Carbon Fiber Frame Kit Specifications and Features:

Introducing… the iFlight Mach R5 Frame Kit! iFlight’s 5″ Racing frame kit has quick-swap arm assembly and an enhanced canopy design with low wind resistance for maximum speed and efficiency.

Note: Frame Kit Only. Electronics/Props/Etc. NOT Included.



VIDEO: Introducing Mach R5 – iFlight’s First FPV RACE Drone

Features

• Super durable design, 6mm arms, and 7075 CNC middle plate
• 30.5×30.5/25.5×25.5mm/20x20mm mount holes for all flight controllers
• Compact & easy repairing design



Specifications

• Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy
• FPV Cam: 14mm /19mm Micro / 20mm
• FC: 30.5×30.5/25.5×25.5mm/20x20mm
• Main body dimension: 152*152mm
• Bottom plate thickness: 3mm
• Top plate thickness: 2.5mm
• Arm thickness: 6mm
• Wheelbase: 215mm
• TPU Camera plate

Recommended ( Not Included)

• iFlight Beast F7 V1.2 45A AIO 25.5×25.5mm Flight Controller
• Naked GoPro Hero8 Case
• DJI HD FPV Goggles V2

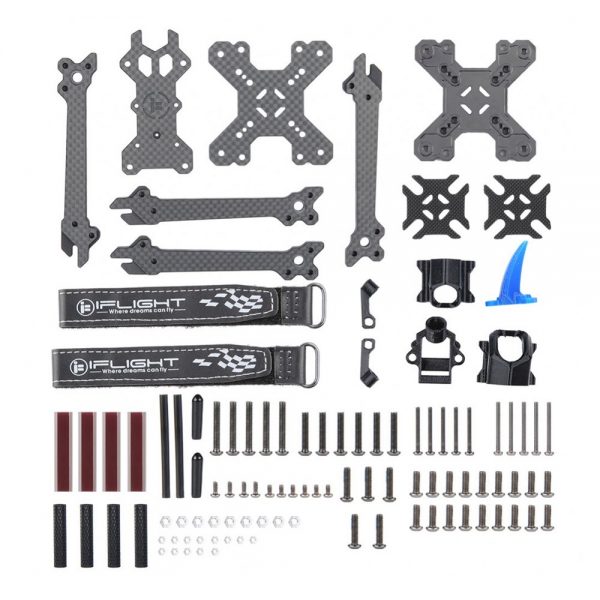

Includes

 iFlight Mach R5 5″ Racing Carbon Fiber Frame Kit

• 2x 20x250mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1x Set Antenna Covers
• 1x Set 3DPrinted Parts
• 4x Wire Protectors
• 2x Camera Plates
• 1x Hardware Kit
• 1x Bottom Plate
• 1x Middle Plate
• 4x Standoffs
• 1x Top Plate
• 4x Arms
• Note: Frame Kit Only. Electronics/Props/Etc. NOT Included.
