iFlight Chimera7 LR Frame Kit

7,499.00

 Overview:

  • The iFlight Chimera7 is a 7″ long-range frame designed to give maximum stability and flight time during your cinematic shoots.

Out of stock

SKU: SKU6753879458609 Categories: ,
Spread the love

iFlight Chimera7 LR Frame Kit Specifications and Features:

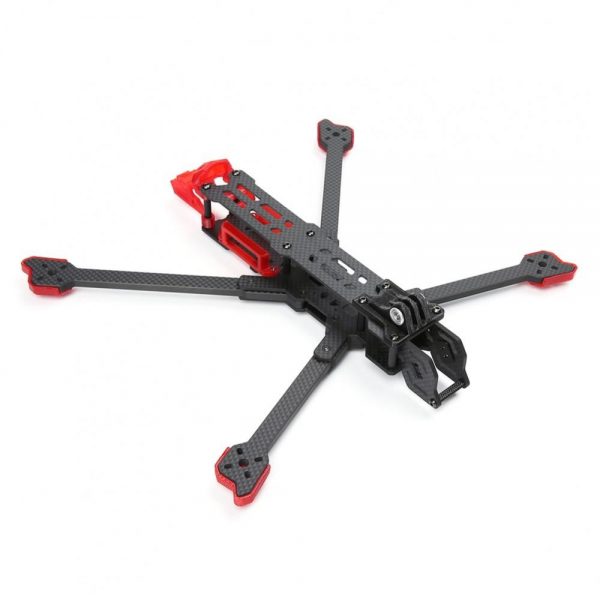

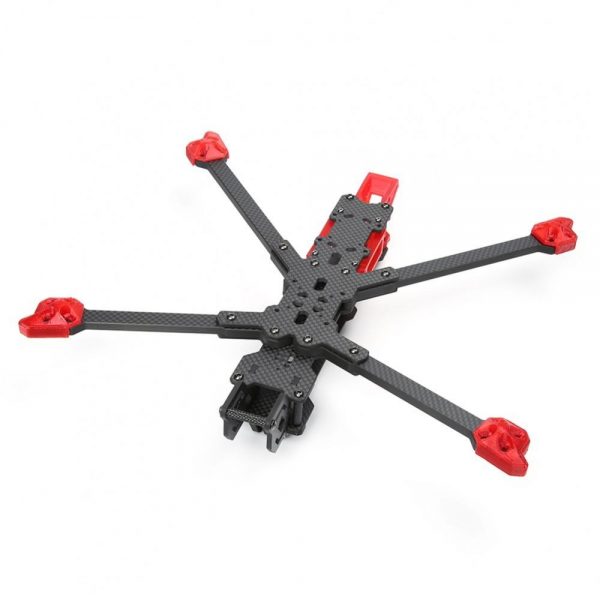

The iFlight Chimera7 is a 7″ long-range frame designed to give maximum stability and flight time during your cinematic shoots. Fly smooth lines on the waterfront all the way to the Swiss Alps if you want! Made from a super-stiff carbon for minimum resonance and recommended 2806.5 motors for maximum 7″ prop control.

Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will do the job.

Features

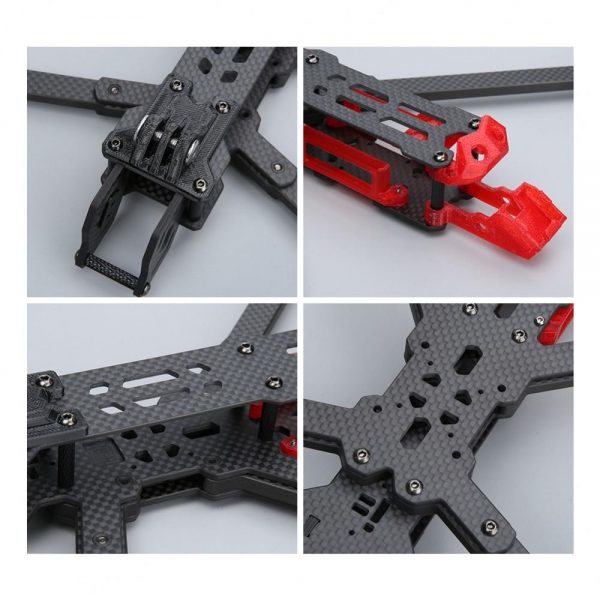

  • 6mm rigid arm design for more stiffness
  • Top- and bottom battery mount option
  • GoPro TPU bottom stand (GoPro protector not included)
  • 360° TPU protection, DJI cam protection, and antenna mounts

Specifications

  • Wheelbase: 320mm
  • Main body dimension: 258*199mm
  • Bottom to top distance: 20mm
  • Arm thickness: 6mm
  • Bottom plate thickness: 3mm
  • Top plate thickness: 2mm
  • Upper(middle) plate thickness: 3mm
  • Camera plate thickness: 3mm (included TPU inserts)

Recommended Parts (Not Included)

  • SucceX-D F7 V2.1 Stack (50A 4-in-1 ESC)
  • SucceX-D F7 V2.1 TwinG
  • SucceX 50A 4 in 1 ESC
  • XING 2806.5 Motor (1300KV Crusier / 1800KV speed cruiser)
  • Albatross LHCP RP-SMA 5.8g 150mm antenna
  • Gemfan tri-blade 7040 props (Set of 4 – Color may vary)
  •  4 x (20mm x 250mm) Microfiber PU Leather Battery Strap (Color May Vary)

Includes

  • 1 x Chimera7 frame
  • 1 x GoPro TPU bottom stand incl. lock screw
  • 1 x 200mm Coaxial cable
  • 1 x Screw Bag
  • 4 x Armguards / Motor mount
  • 1 x TPU DJI Air Unit Bracket Mount
  • 1 x TPU DJI Air Unit Antenna Mount
  • 1 x TPU bottom plate front protective mount
  • 1 x TPU bottom plate rear protective mount
  • 1 x Battery Anti-slip Mat
  • 1 x 20*250mm battery strap (Color May Vary)

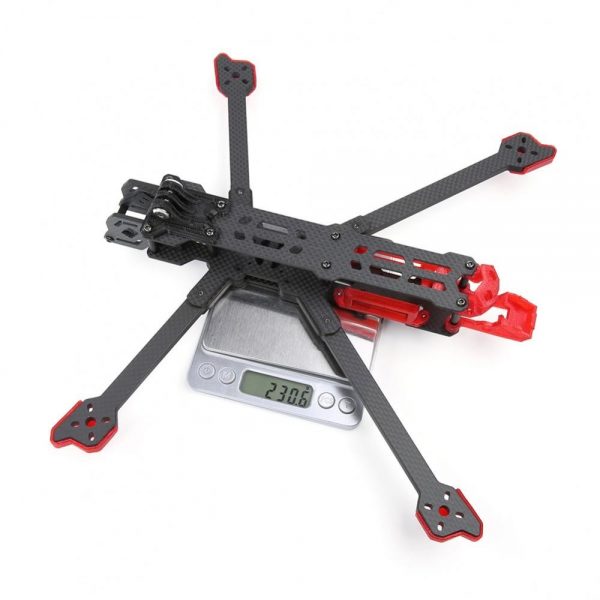

Weight 0.4 kg
Dimensions 18 × 20 × 6 cm
