iFlight Chimera5 DC LR FPV Frame Kit



  • This is the very same frame used on iFlight’s impressive 5″ long-range quadcopter, but in a ‘dead cat’ style geometry vs the standard True X (props in view).
  • Can fit either a Caddx Vista or a traditional analog video transmitter.

Out of stock

SKU: SKU5687975633221 Category:
Spread the love

iFlight Chimera5 DC LR FPV Frame Kit Specifications and Features:


Main Features:

  • Full 3K Carbon Fiber airframe
  • The 5-inch version of Chimera 7 is more lightweight
  • 360° TPU protection and Antenna mounts
  • Compatible with Vista Air Unit

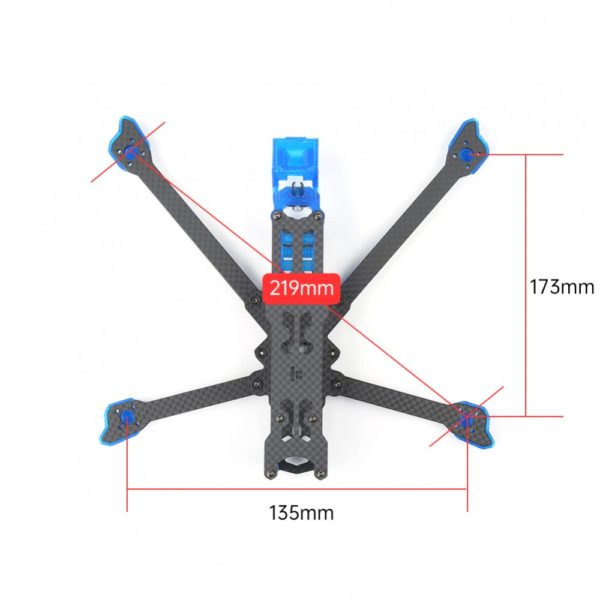

  • Wheelbase: 219mm
  • Main body dimension: 135*173mm
  • Bottom to top distance: 28mm
  • Arm thickness: 4mm
  • Bottom plate thickness: 2mm
  • Top plate thickness: 2mm
  • Middle Plate thickness: 2.5mm
  • TPU Camera plate
  • FC: 25.5*25.5mm/20*20mm
  • FPV Cam: 19mm Micro / 20mm

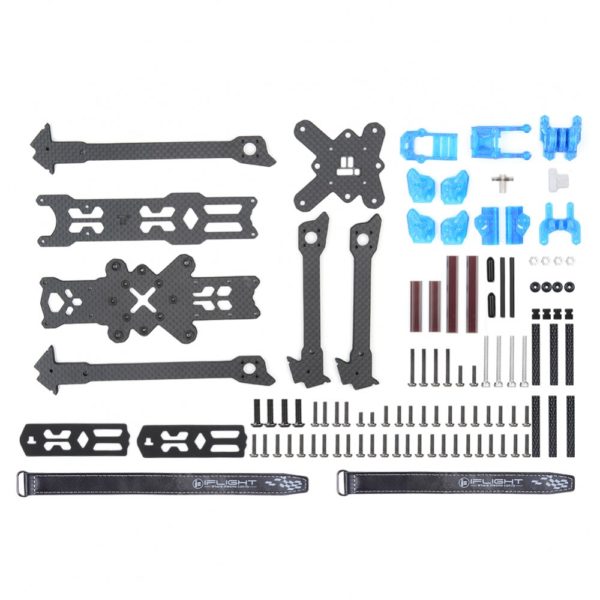

Package includes:

  • 1 x Chimera5 Frame
  • 2 x battery straps
  • 1set x TPU parts


Weight 0.4 kg
Dimensions 18 × 20 × 6 cm
