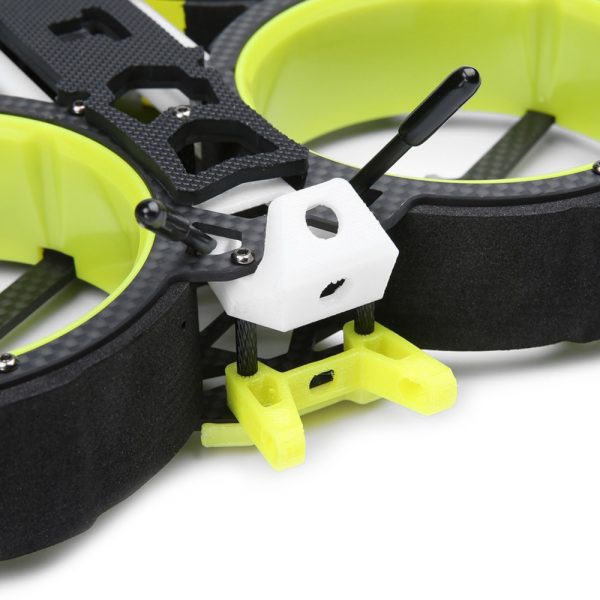

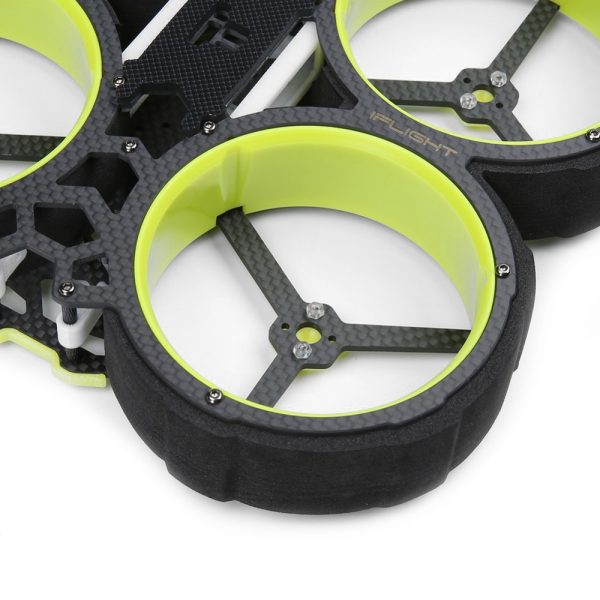

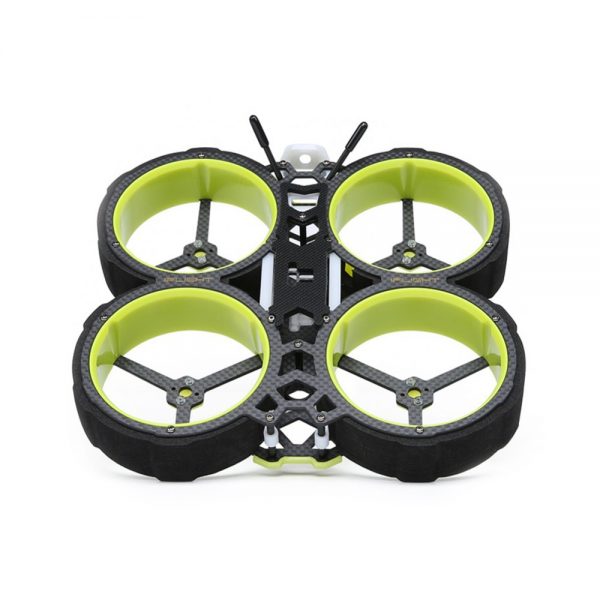

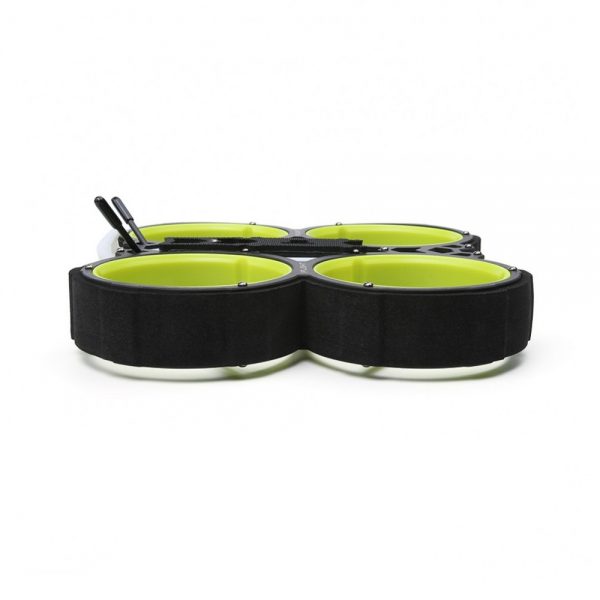

iFlight BumbleBee HD V3 3″ Cinewhoop Frame Kit CLEARANCE

3,999.00

 Overview:

  • The iFlight BumbleBee HD V3 frame was reduced to minimum size and weight.
  • iFlight has come up with a 145mm diagonal motor distance for our new V3 to fit the DJI Air Unit inside.
  • No broken PLA Ducts anymore!
  • Brand new lightweight Polycarbonate duct profile for minimum disturbance to channel thrust and efficiency.

Out of stock

SKU: SKU88458763345 Categories: ,
Spread the love

iFlight BumbleBee HD V3 3″ Cinewhoop Frame Kit Specifications and Features:



The iFlight BumbleBee HD V3 frame was reduced to minimum size and weight. iFlight has come up with a 145mm diagonal motor distance for our new V3 to fit the DJI Air Unit inside. No broken PLA Ducts anymore! Brand new lightweight Polycarbonate duct profile for minimum disturbance to channel thrust and efficiency.

MAIN UPDATES FROM V2 TO V3:

  • Upgraded polycarbonate ducts for less noise and more durability
  • Upgraded EVA protectors

VIDEO: iFlight Bumblebee V3 HD Drone



Features

  • T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
  • Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
  • Low Resonance frame construction (Less Jello, more Cinematic footage)
  • Bumper prop guards to protect the sensitive environment or yourself
  • No Props or frame in view

Specifications

  • Top and bottom plate spacing: 27mm (aluminum standoff height)
  • FC pattern: 20*20mm,30.5*30.5mm
  • Bottom plate thickness: 2.5mm
  • Top plate thickness: 2mm
  • FPV cam spacing: 19mm
  • Propeller size: 3 inch
  • Body Size: 111*93mm
  • Wheelbase: 145mm
  • Weight: 164.1g

Recommended (Not Included)

  • Motors with M2 mounting.
  • DJI FPV Goggles V2
  • 3040 CW CCW Propeller
  • Beast STD F7 45A AIO
  • DJI FPV Remote Controller 2
  • DJI Digital HD FPV Air Unit

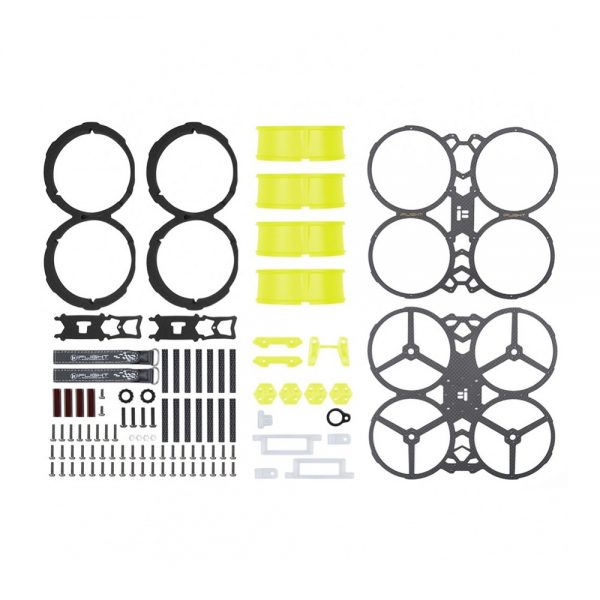

Includes

  • 1x iFlight BumbleBee HD V3 3″ Cinewhoop Frame
  • 1x TPU Antenna holder for DJI antenna
  • 1x TPU Bracket for DJI Air Unit Module
  • 2x TPU camera side plate soft mount
  • 4x Foam Duct Protectors
  • 2x iFlight Lipo Strap
  • 1x Hardware Kit
  • 4x Yellow Ducts
  • 2x Battery Pads
Weight 0.4 kg
Dimensions 18 × 20 × 6 cm
