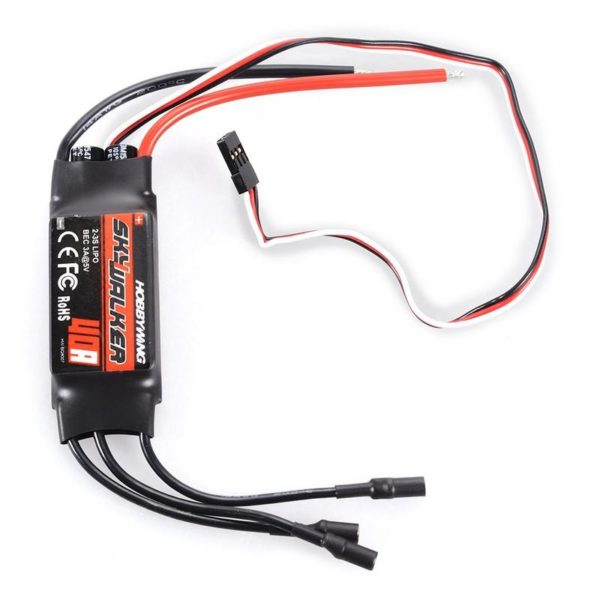

HobbyWing SkyWalker 40A ESC:
- Output: Continuous 40A, Burst 55A.
- Input Voltage: 2-3S Lipo, 5-9 cells.
- BEC: 5V 3A Switch-mode BEC.
- Refresh rate of the throttle signal: 50Hz to 432Hz.
- Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
- (BLM = BrushLess Motor)
High Quality & Reliability
Good quality components guarantee the high quality and reliability of
SkyWalker series of aircraft ESCs.
Multiple protection features include abnormal input voltage,
ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively
prolongs the service life of the ESC.
