HGLRC Zeus F728 STACK FPV Racing Drone 3-6S F722 Flight Controller 28A BL_S 4in1 ESC Support I2C function

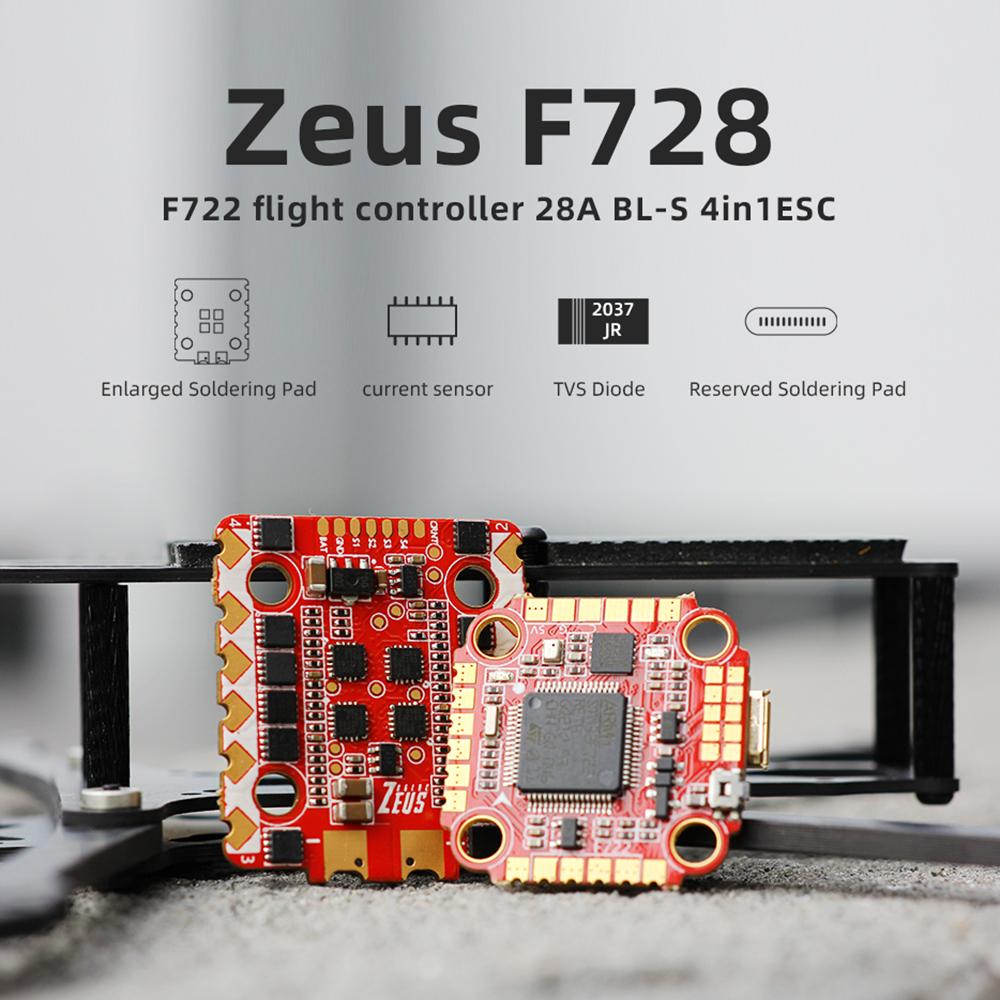

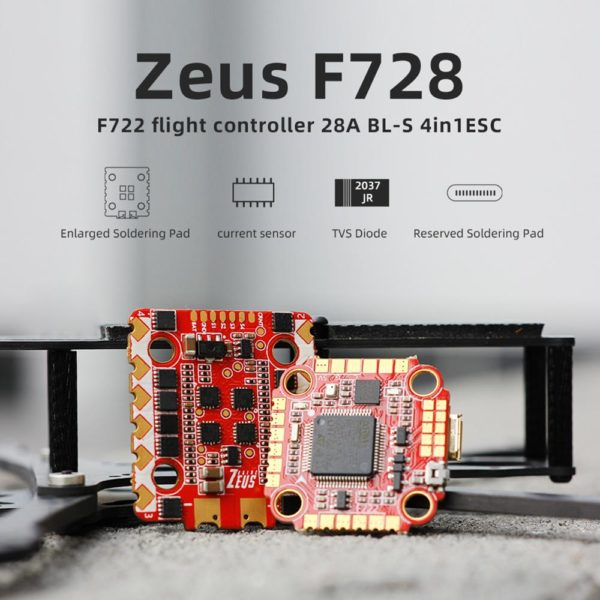

HGLRC Zeus F728 STACK FPV Racing Drone 3-6S F722 Flight Controller 28A BL_S 4in1 ESC Support I2C Features and Specifications:

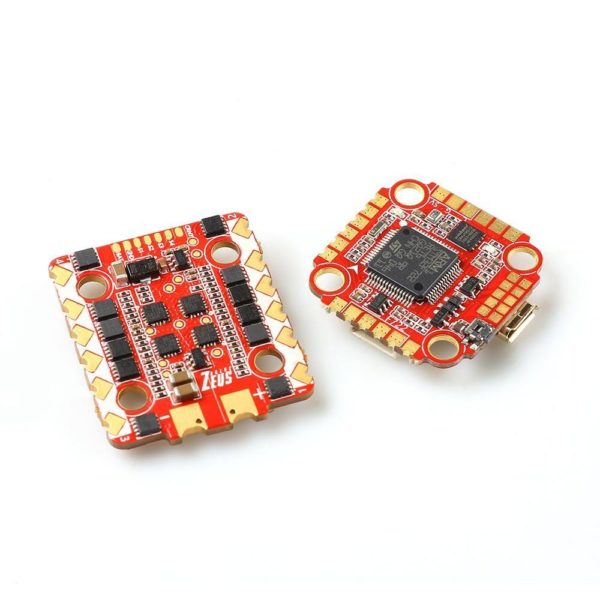

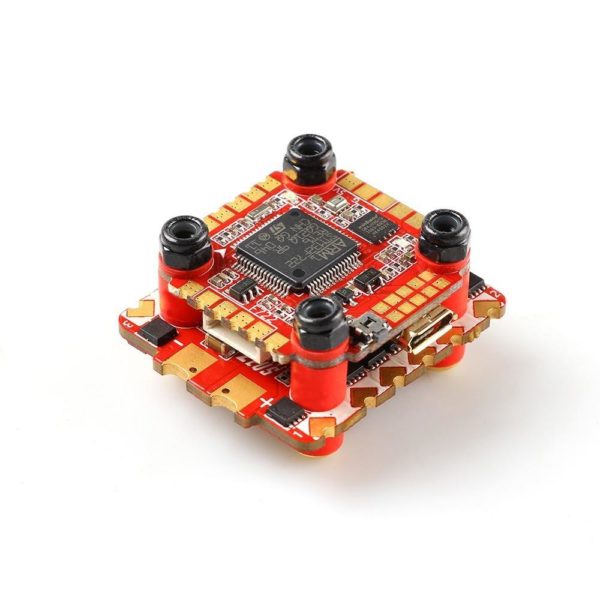

The HGLRC Zeus F728 Mini Stack has an F722 Flight controller combined with a 28A ESC. This stack has a 20×20 mounting pattern and a flight controller that houses an MPU6000 gyro and 3-6S direct lipo support. Comes with an integrated barometer, 16M black box, and integrated DJI, LED, and GPS connector.

VIDEO: ALL NEW HGLRC Forward F722 Mini Flight Controller // Overview & Setup Guide:

Features:

• An Integrated LED controller allows quick programming of LEDs with the push of a button.
• Easy direct soldering for XM+, NANO receiver, and TBS Nano VTX
• Quickly connect DJI and LED and GPS via socket
• Integrated barometer and 16M black box.
• Maximum BEC 9V/1A & 5V/2A Output
• Reserved Soldering Pad
• Enlarged Soldering Pad
• High-Speed Blackbox
• Ammeter Built-in
• Current Sensor
• TVS Diode



Specifications:

• FC Firmware: BF HGLRCF722(HGLR)
• Usage:for 100mm-450mm Frame Kit
• Mounting Hole: 20x20mm. M3

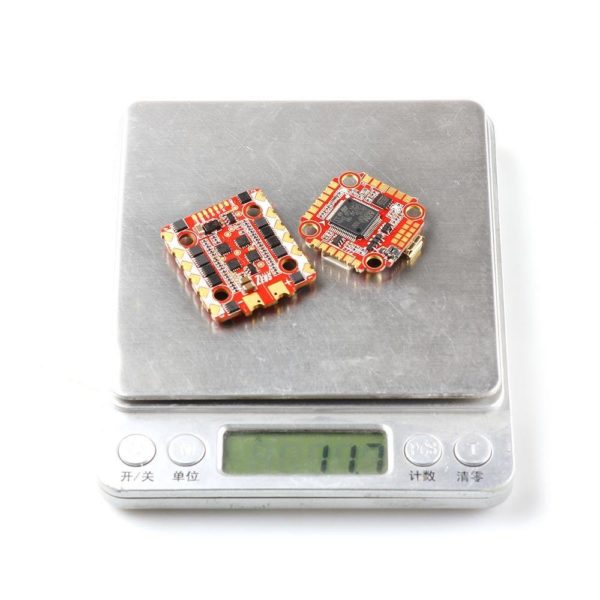

• Weight:11.7g

F722 MINI FC:

• Item Name: Zeus F722 Mini Flight Controller
• FC Firmware:BF HGLRCF722(HGLR)
• Usage:for 100mm-450mm Frame Kit
• Built-in Betaflight OSD to adjust PID
• Mounting Hole:20x20mm.M3
• Barometer: BMP280(I2C)
• CPU:STM32F722 RET6
• Input Voltage:3-6S Lipo
• Size:28.2×28.1mm
• MPU: MPU6000
• BlackBox:16M
• BEC Output:
  • 9V1A
  • 5V/2A
• Weight:4.2g
• UARTS:5

28A 4-in-1 ESC:

• Support Damped Mode: DShot600/300/150/Oneshot125/42, MultiShot
• Mounting Hole: 20x20mm, M3
• Peak Current: 35A (10s)
• Input Voltage: 3-6S Lipo
• Constant Current: 28A
• Size: 30x35mm
• Weight: 7.2g

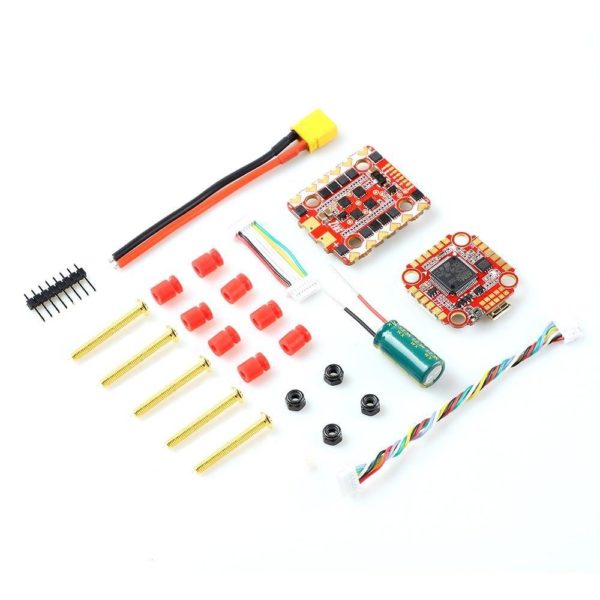

Includes

• 1x HGLRC Zeus F728 Mini Stack – F722 FC + 28A 3-6S 4-in-1 BLHeli_S ESC
• 1x DJI AIR UNIT PORT CABLE 90mm
• 8x M3 Shock Absorption (Red)
• 1x SH1.0 8PIN Cable 60mm
• 1x Connecting Wire
• 1x Hardware Set
• 1x Capacitor
