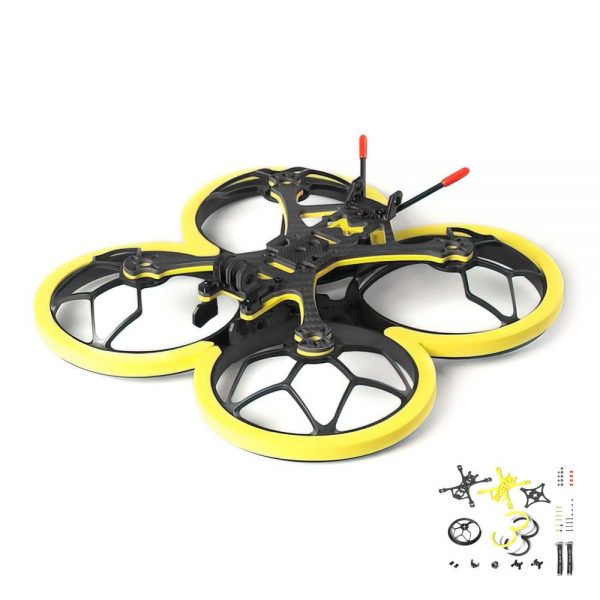

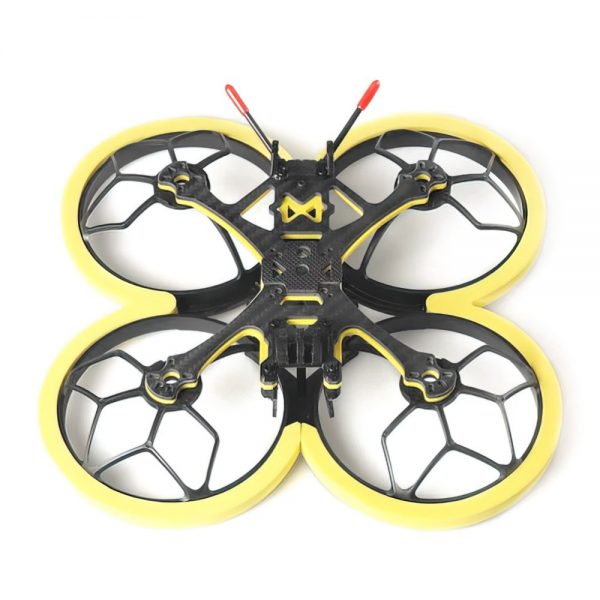

HGLRC Veyron35CR 3.5″ Pusher Cinewhoop Frame Kit

The Veyron35CR 3.5″ CineWhoop Frame Kit by HGLRC is a lightweight pusher-style frame that easily supports a full GoPro camera. This frame features EVA Foam protection guards in Gray, White and Yellow.

Note: Frame Kit Only… electronics, motors, props, and cameras are not included.

VIDEO: HGLRC Veyron 35 CINEWHOOP FPV Drone Build Guide

Features:

• Ultra-light and lasts super long in flying
• Colorful EVA Foam Protection Guards
• 20×20-25.5×25.5mm mounting holes
• Pusher-style Frame

Specifications:

• FC mounting hole: 20x20mm/25.5×25.5mm
• Motor mounting hole:12×4/16x4mm
• Model: Veyron35CR Pusher frame
• Supported camera:19*19mm
• Material: 3K carbon fiber
• Brand Name: HGLRC
• Type:3.5 inch frame
• Wheelbase: 155mm
• Base plate: 1.5mm
• Size:131*131mm
• Top plate: 2.5mm
• Mid plate: 2.5mm
• Weight: 113.4g
• Space: 28mm

Recommended (Not Included):

• Flight Controller: Zeus25/ZeusF722 mini
• Motor:18XX/20XX/22XX
• VTX: Caddx Vista Unit
• Camera: 19X19mm
• Propeller: 3.5 Inches
• ESC: 25A-45A

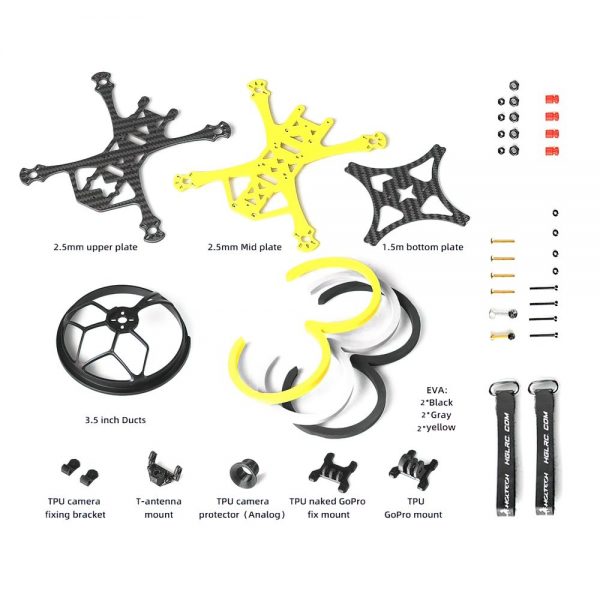

Includes:

• 6x EVA Foam protection guard (2 black, 2 grays, 2 yellow)
• 2x M2*28mm black mesh Aluminum pillar
• 2x M2*8mm black Aluminum column
• 4x M2*O type shock-absorbing ring
• 4x M3*8 shock absorbing ball
• 1x TPU bare GOPRO holder
• 1x TPU GOPRO seat holder
• 4x 3.5-inch propeller guard
• 2x Battery tie 15x200mm
• 1x Battery non-slip mat
• 5x M3 self-locking nuts
• 4x M2 self-locking nuts
• 1x TPU camera mount
• 1x TPU lens protector
• 1x M5 self-locking nut
• 1x TPU antenna base
• 1x 1.5mm base plate
• 1x EVA landing gear
• 1x 2.5mm Mid plate
• 1x 2.5mm top plate
• 4x Screw M3*25
• 1x Screw M3*20
• 4x Screw M2*18
• 10x Screw M2*5
• 1xScrew M5*20
• 4x Screw M2*9
• 2x Screw M2*7
• 2x Screw M2*4
