HGLRC Veyron30CR 3 Inches Cinewhoop Frame Kit Specifications and Features:
- Supports (20×20-25.5×25.5) mounting holes
- Supports both AIO/stack installing at the same time.
- Equipped with 2004 Aeolus motors, ultra-lightweight and have a super long flight time.
- Using mold EVA protecting ducts
- Super durable.
- Brand: HGLRC
- Model: Veyron30CR Cinewhoop Frame
- Material:3K carbon fiber
- Type:3 inches Frame
- Wheelbase:140mm
- Size:215*190mm
- Top plate:1.5mm
- Bottom plate:2mm
- Space:25mm
- Flight control mounting hole:20x20mm/25.5×25.5mm
- Support camera:19*19mm

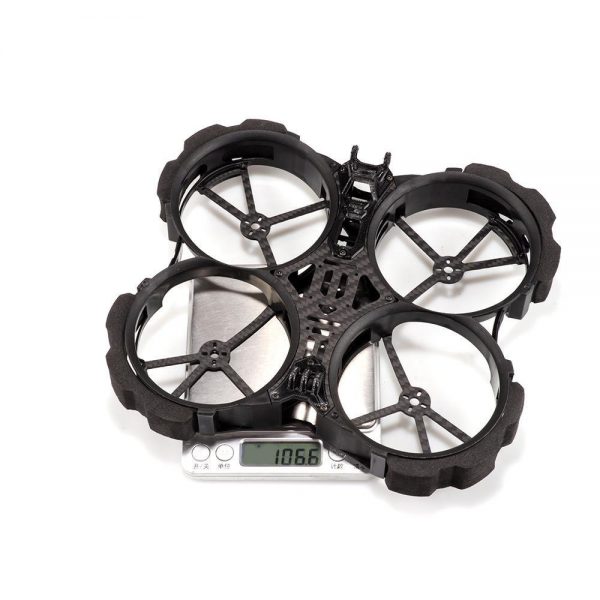

- Weight:106.6g
Motor mounting holes:∅9-12

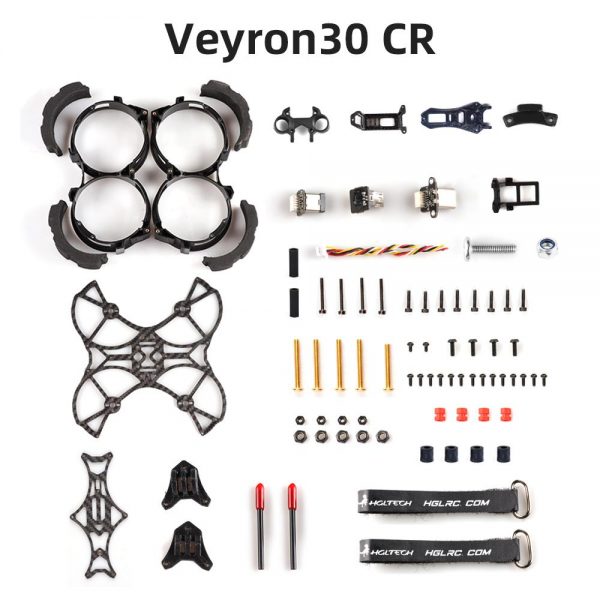

Shipping list:
1x 1.5mm top plate
1x 2mm bottom plate
2x Mold Ducts
4x protection half EVA Foam
1x 4P cable
1x Type C female
1x Type C male
1x Micro male
1x round head screw M5*20
4x round head screws M3*25
1x round head screw M3*20
4x round head screws M2*20
8x cup head screws M2*7
14x round head screws M2*6
2x round head screws M2*4
4x Round head screw M2*5
2x M2*8 Nylon columns
1x M5 self-locking nut
5x M3 self-locking nuts
4x M2 self-locking nuts
4x M3*8 shock absorbing balls
4x M2*4 shock absorption columns
2x battery straps 15x200mm
1x battery non-slip pad
1x TPU black naked GoPro fixing mount
1x TPU black GoPro fixing mount
1x TPU black SMA antenna mount
1x TPU black DJI antenna mount
1x TPU black DJI Air Unit mount
1x TPU black Receiver mount
1x TPU black landing protector
Recommended parts:(not included)
- Flight control:Zeus25/F722 MINI
- Motor:14XX/16XX/18XX
- ESC:Zeus25A-40A
- Camera:19X19mm
- Propeller:3 inches
- Battery:4S/6S 750mAh 1300mAh
