HGLRC Sector4 FR 4″ Freestyle Frame Kit Specifications and Features:
Recommended Motors:
1804 3500 KV-4S
HGLRC’s newest 4” Freestyle frame!
- Support(20×20-25.5×25.5mm)mounting holes;
- Supports AIO/stack installation at the same time, is ultra-light, and lasts super long in flying.
Brand Name: HGLRC
- Model: Sector4 FR Freestyle Frame
- Material:3K Carbon Fiber
- Type:4″ frame
- Wheelbase:178mm
- size:136*162mm
- Top plate thickness:2mm
- Bottom plate thickness:3mm
- Space of top and bottom plate:25mm
- Installation holes:20x20mm/25.5×25.5 mm
- Support camera:19*19mm

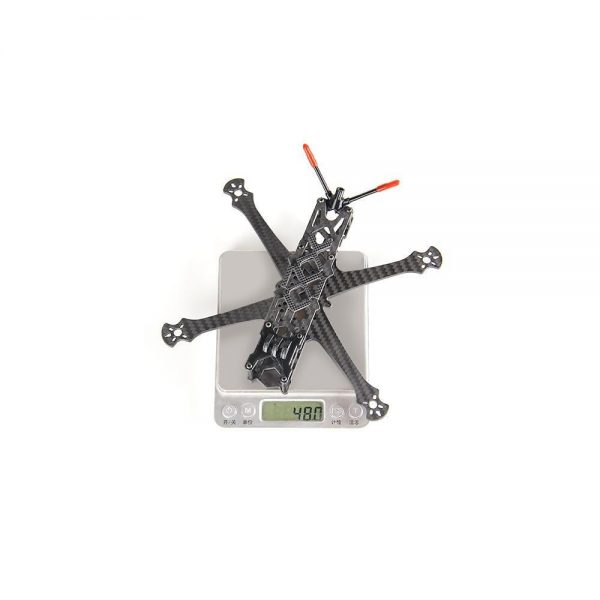

- Weight:48g
- Motor mounting hole: ∅9-12

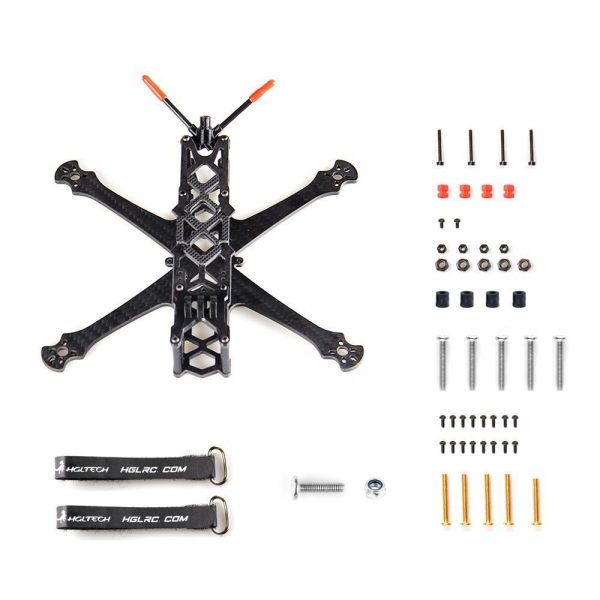

Package Includes:
- 1x 2mm top plate
- 1x 3mm bottom plate
- 2x 1.5mm camera side plate
- 2x M2*23mm Black mesh aluminum columns
- 6x M2*25mm Black mesh aluminum columns
- 16x Cup head screws M2*6
- 4x Cup head screws M2*25
- 2x Round head screws M2*4
- 4x Round head screw M3*25
- 5x M3 Self-tightening nuts
- 4x M2 Self-tightening nuts
- 1x M5 Self-tightening nuts
- 1x Round head screw M5*20
- 1x Round head screw M3*20
- 4x M3*6.6 shock-absorption balls
- 4x M2*4 shock-absorption Standoffs
- 2x Battery straps 15x200mm
- 1x Battery Anti-slip pad
- 1x TPU antenna base
- 1x TPU GoPro fixing bracket
- 1x TPU Naked Gopro mount
Recommended Parts:( Not Included )
- Flight Controller:Zeus25/ZeusF722 mini
- Motor:14XX/16XX/18XX
- ESC:25A-40A
- Camera:19X19mm
- Propeller:4 Inches
