HGLRC M80 Pro GPS Module for FPV Drone Racing

HGLRC M80 Pro GPS Module for FPV Drone Specifications and Features:



The HGLRC M80 Pro GPS QMC5883 Compass for FPV Drone is a high-quality GPS module that comes equipped with a QMC5883 compass. The compass is capable of providing accurate heading information, making it an ideal choice for FPV  drones. Here are some of the key features of the HGLRC M80Pro GPS QMC5883 Compass:

• High-accuracy GPS module
• QMC5883 compass for accurate heading information
• Supports multiple satellites, including GPS, GLONASS, and BEIDOU
• 5V input voltage
• Lightweight design

HGLRC M80 Pro GPS Specifications

To help you better understand the capabilities of the HGLRC M80Pro GPS QMC5883 Compass, here are some of its key specifications:

• Input voltage: 5V
• GPS module: UBLOX M8N
• Compass: QMC5883
• Satellite support: GPS, GLONASS, BEIDOU
• Positioning accuracy: 2.5m CEP
• Speed accuracy: 0.1m/s
• Refresh rate: 10Hz

HGLRC M80 Pro GPS Comparison with other products

When it comes to GPS modules for FPV drones, there are plenty of options to choose from. However, the HGLRC M80Pro GPS QMC5883 Compass stands out from the rest for several reasons. First and foremost, it is incredibly accurate and reliable, thanks to its high-quality components and advanced technology. It also supports multiple satellite systems, which means you can get a strong signal even in challenging environments. Additionally, its lightweight design makes it easy to install and use, without adding unnecessary weight to your drone.

Conclusion

In conclusion, the HGLRC M80Pro GPS QMC5883 Compass for FPV Drone is an excellent choice for any serious FPV racer. Its high accuracy, multiple satellite support, and lightweight design make it one of the best GPS modules on the market. Whether you are a beginner or an experienced racer, the HGLRC M80Pro GPS QMC5883 Compass is sure to take you to the next level. So why wait? Get yours today and experience the ultimate in FPV technology!

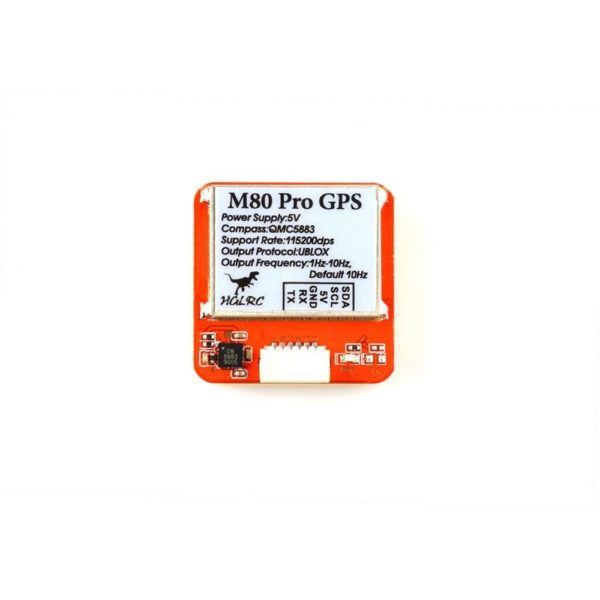

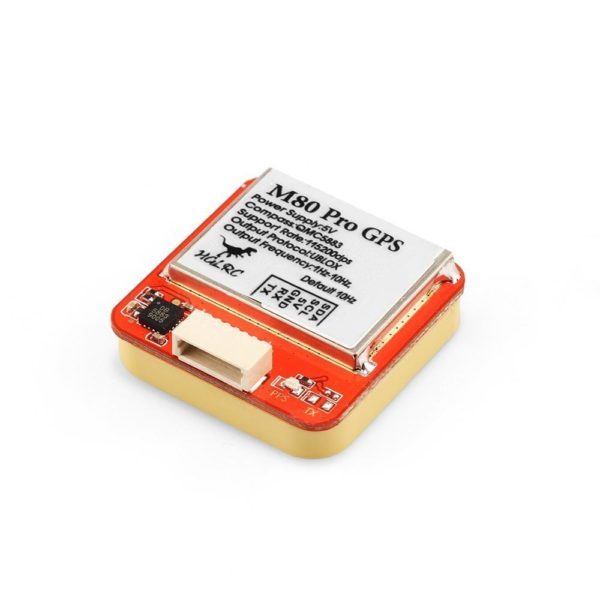

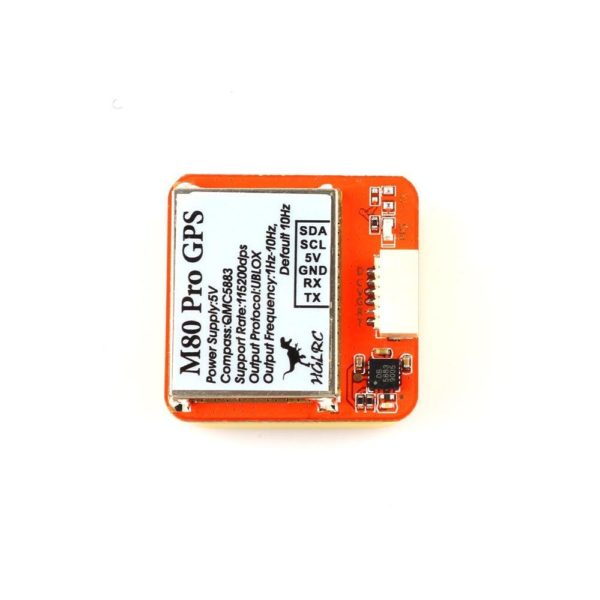

The HGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Receives a stronger antenna signal to make it easier to be found by satellites. No soldering is needed just plug directly and use it.

The HGLRC M80 PRO GPS Module is ideal for FPV drones!

Specifications

• Item Name: HGLRC M80PRO GPS
• Chip: M8030
• Power Supply:5V

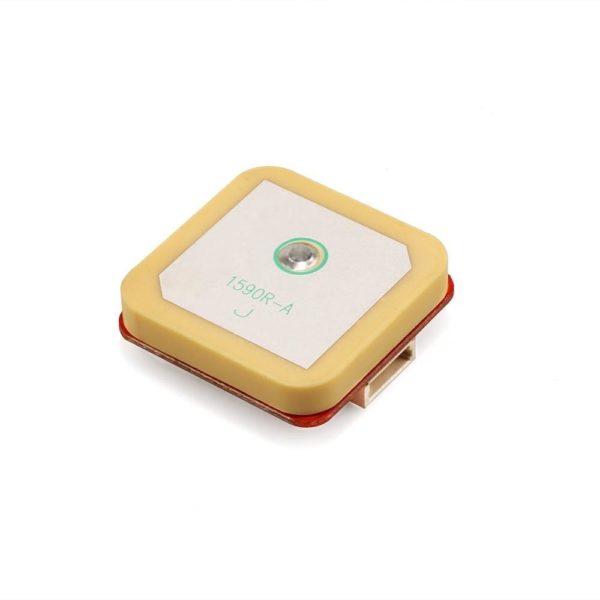

• Antenna: Ceramic Antenna
• Receiving Format:GPS, GLONASS,GALILEO, QZSS,SBAS, BDS
• Receiving Channel:72 Searching Channel
• Compass: QMC5883
• Support Rate:115200dps
• Output Protocol: UBLOX
• Output Frequency:1Hz-10Hz,Default 10Hz
• Speed Precison:0.05 m/s
• Level Positioning Precison:2D ACC1.5m(ln Open Sky)
• Receiving Sensitivity: Trace -162dBm
• Capture-160dBm
• Dynamic Characteristics: Max Height:50000m
• Max Speed:500m/s
• Max Acceleration:4G
• Working Temperature:-40℃-+85℃
• Storage Temperature:-40℃-+105℃
• Size:25mm x 25mm x 8.3mm

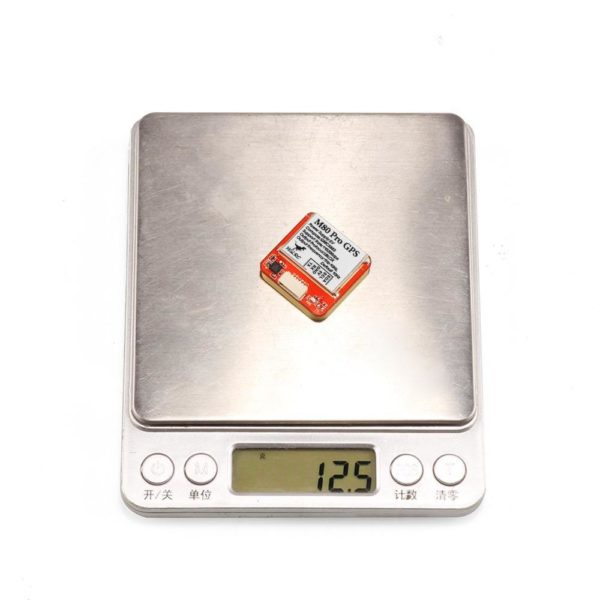

• Weight:12.5g

Includes

• 1 x HGLRC M80 PRO GPS Compass for FPV  Drone
