Happymodel ExpressLRS ELRS Fyujon 2IN1 AIO Module Built-in ELRS 2.4GHz EP Receiver OpenVTX 5.8G 48CH 300mW

1,899.00

 Overview:

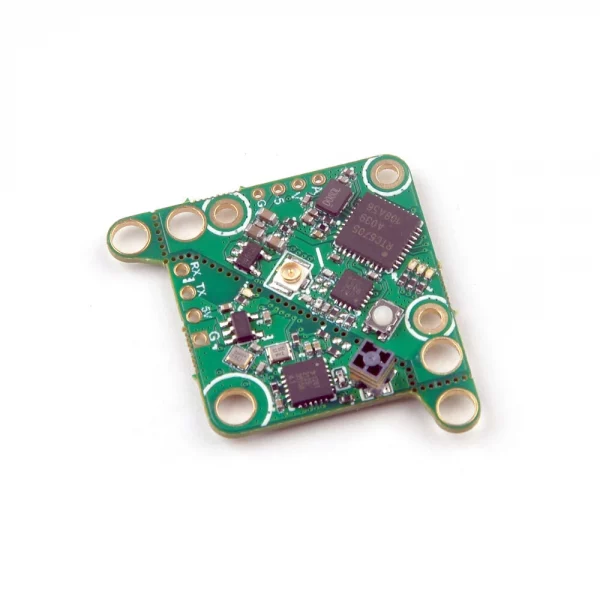

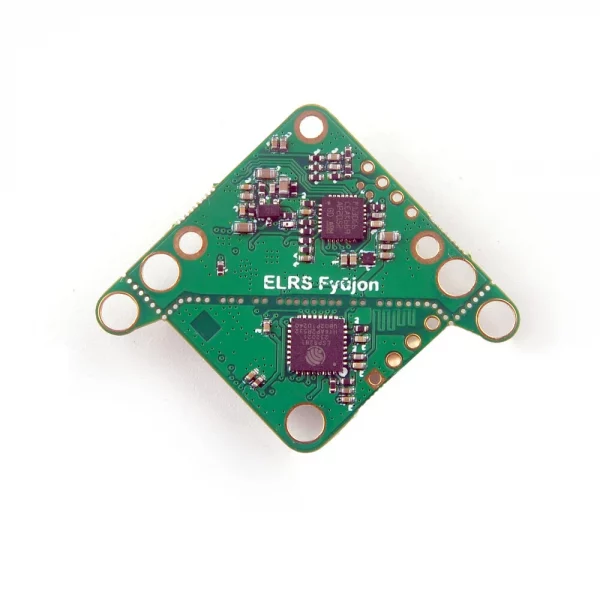

  • ELRS Fyujon is a straightforward, easy-to-use 2-in-1 module that integrates 5.8GHz video transmission and a 2.4GHz ELRS receiver.
  • They can be integrated into a board for use or split into independent VTX modules and receiver modules to be used separately.

Out of stock

SKU: SKU82374879898-2 Categories: ,
Spread the love

Happymodel ExpressLRS ELRS Fyujon 2IN1 AIO Module Built-in ELRS 2.4GHz EP Receiver OpenVTX 5.8G 48CH 300mW for FPV Toothpick Cinewhoop Drone Specifications and Features :

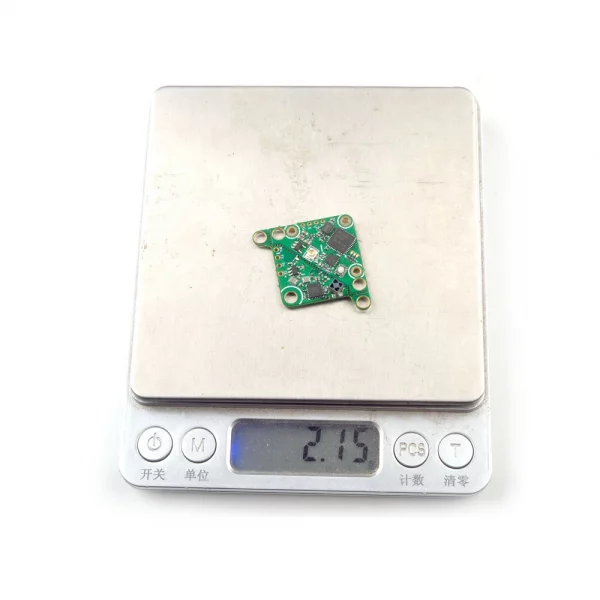

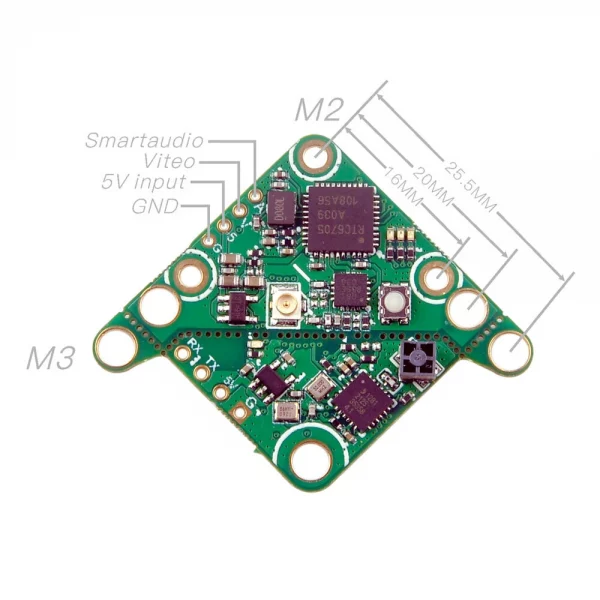

ELRS Fyujon is a straightforward and easy-to-use 2-in-1 module that integrates 5.8GHz video transmission and 2.4GHz ELRS receiver. They can be integrated into a board for use or split into independent VTX modules and receiver modules to be used separately. They are all open-source solutions that are currently very popular with FPV pilots. Compatible with 16mmx16mm, 20mmx20mm stack mounted way, and 25.5mmx25.5mm whoop mounted way. Due to the ultra-lightweight (only2.1gram), it would be a better choice for a small toothpick quad or analog version Cinewhoop.

Specifications:

  • Brand Name: Happymodel
  • Item Name: ELRS Fyujon 2IN1 AIO Module
  • Weight: 3g
  • 2.4GHz Receiver:
  • Type: ISM
  • ESP8285 MCU
  • SX1280/1281IMLTRT RF Module
  • SMD Ceramic antenna
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz
  • Working Voltage: 5v

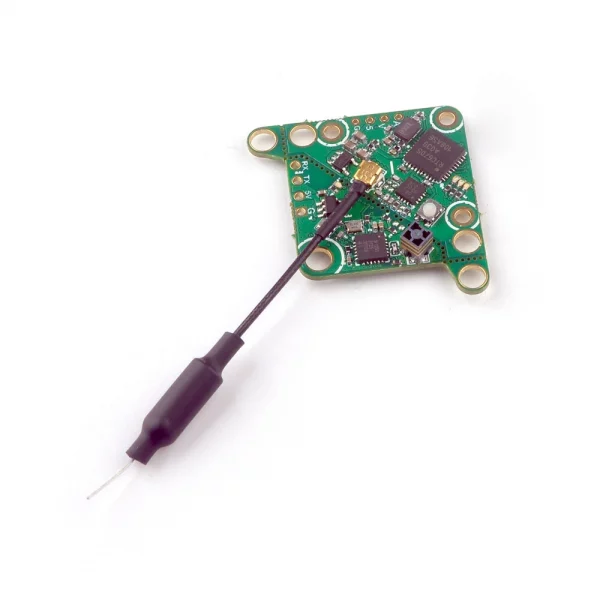

  • Antenna: Onboard SMD ceramic antenna
  • Antenna Peak gain: 3.7Db
  • ELRS Firmware target: HappyModel EP 2400 RX
  • 5.8GHz VTX:
  • Frequency: 5.8G 48CH
  • Transmitting Power: 0/RCE/25mw/100mw/300mw
  • Power supply: DC 5V
  • Current (5v): <650ma (300mw)
  • SmartAudio ready

VTX Table:

# SMARTAUDIO

# vtxtable

vtxtable bands 6

vtxtable channels 8

vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725

vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866

vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945

vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880

vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917

vtxtable band 6 LOWRACE  L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613

vtxtable powerlevels 5

vtxtable powervalues 1 2 14 20 26

vtxtable powerlabels 0 RCE 25 100 400

save

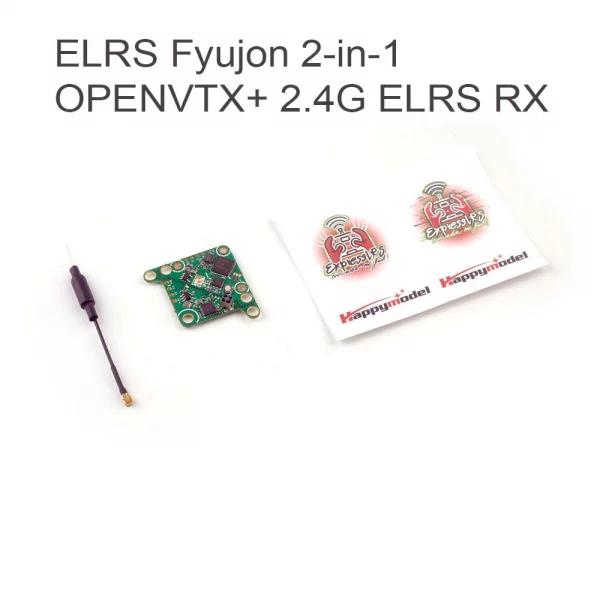

Package Included:

1 x ELRS Fyujon 2IN1 AIO Module



Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
