Happymodel EP1 Dual True Diversity ExpressLRS Receiver w/ Antennas

The Happymodel EP1 Dual is a true diversity 2.4GHz ELRS receiver with RF amps and two antennas.

VIDEO: Happymodel ELRS EP1 Dual RX range test

• Diversity 2.4GHz ELRS RX
• Two Antennas
• Dual Receiver
• RF Amps

FIRMWARE

• Target: Unified_ESP32_2400_RX, Append configuration -Generic ESP32 2.4Ghz Diversity RX
• ExpressLRS v3.0.0 rc1 or the latest version
• (EP1 Dual target will be available soon)
• Firmware update via UART or WIFI

• RF Frequency: 2.4GHz (2400~2480MHz)
• Antenna connector: IPEX MHF 1/U.FL
• Weight: 1g excluding antenna
• Telemetry power: >19dbm
• PCB size: 19mm x 14mm
• Receiver protocol: CRSF
• Input voltage: +5V DC

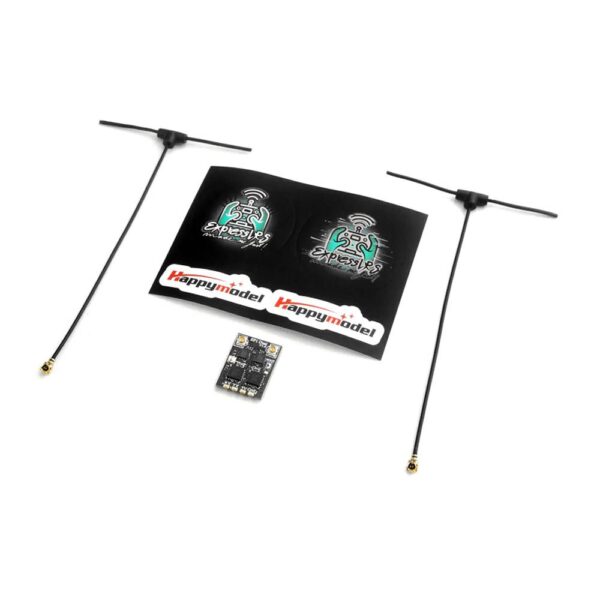

• 1x Happymodel EP1 Dual True Diversity ExpressLRS Receiver
• 2x Antennas
