HappyModel 2.4G ELRS EP1 DUAL TCXO Receiver

2,349.00

 Overview:

  • Experience unparalleled control and precision with the HappyModel ELRS EP1 DUAL TCXO
  • An advanced solution for elevated drone communication and performance.

Out of stock

SKU: SKU86765343234 Categories: ,
Spread the love

HappyModel 2.4G ELRS EP1 DUAL TCXO Receiver Specifications and Features:



EP1 EP2 ELRS receiver is the hottest Tiny ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable.

EP1 TCXO Receiver
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
Omni directional antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v
Weight: 0.41 gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB
Default Firmware out of factory: HappyModel_EP_2400_RX V3.0.1 version
Built-in a TCXO (temperature compensated crystal oscillator)

EP2 TCXO Receiver
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v
Weight: 0.44 gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
Default Firmware out of factory: HappyModel_EP_2400_RX V3.0.1 version
Built-in a TCXO (temperature compensated crystal oscillator)

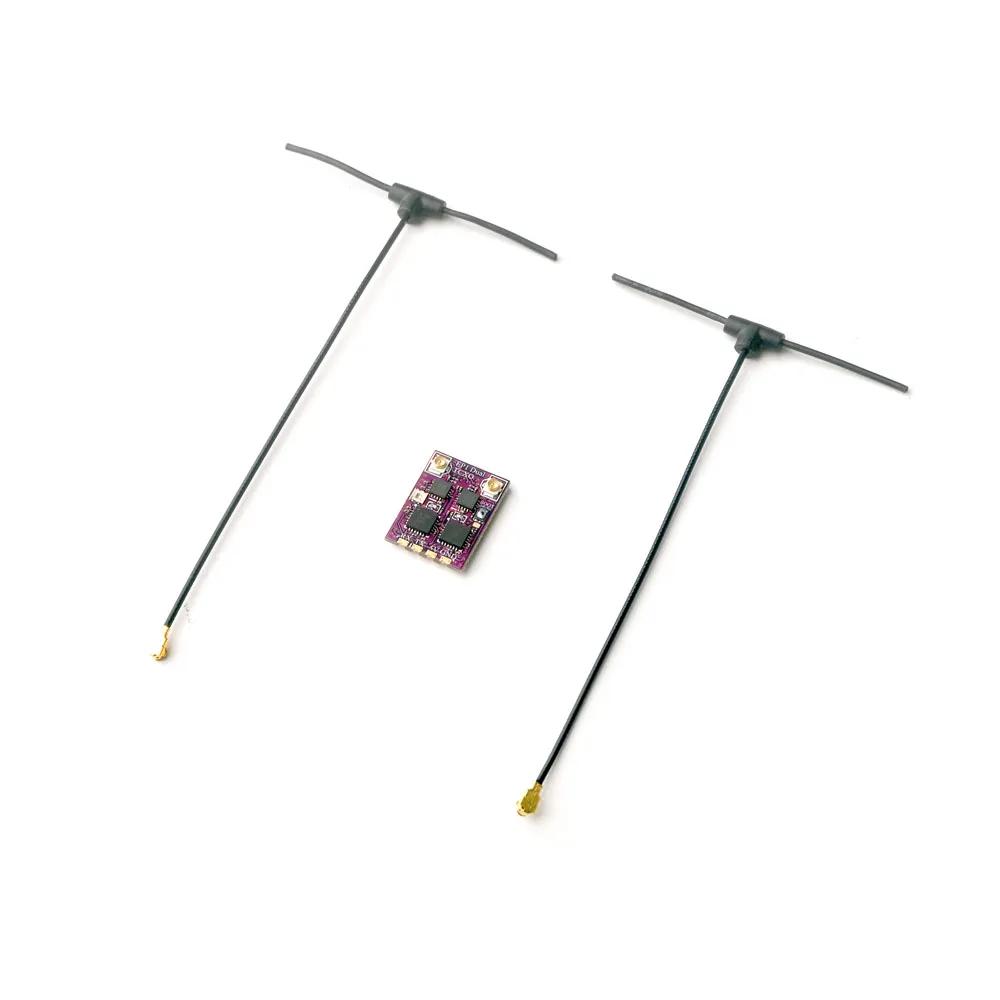

EP1 Dual TCXO Receiver
Type: ISM2.4GHz
ESP32 PICO D4, dual SX1280(SX1281)
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: >19dbm
Receiver protocol: CRSF
Input voltage: 3.5~5V Recommend +5V DC @ “+” pad
PCB size: 19mm x 14mm

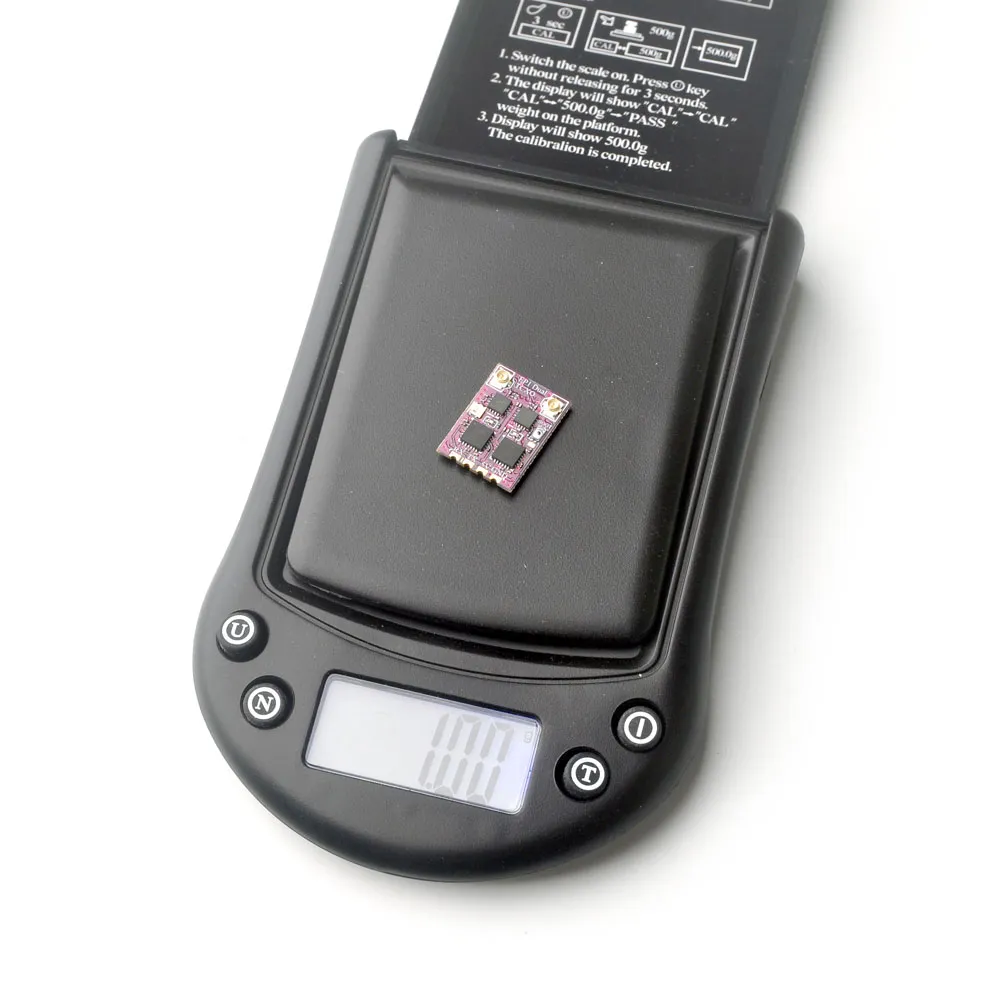

Weight: 1gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Default Firmware out of factory: Unified_ESP32_2400_RX  Could upgrade to HappyModel EP1 Dual 2400 RX 3.0 FW



EP1 Dual TCXO Receiver
Type: ISM2.4GHz
ESP32 PICO D4, dual SX1280(SX1281)
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: >19dbm
Receiver protocol: CRSF
Input voltage: 3.5~5V Recommend +5V DC @ “+” pad
PCB size: 19mm x 14mm
Weight: 1gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Default Firmware out of factory: Unified_ESP32_2400_RX  Could upgrade to HappyModel EP1 Dual 2400 RX 3.0 FW

ELRS EP1 DUAL TCXO

CHECK OUT OUR VTX COLLECTION:

What is a Video Transmitter?

https://www.easytechjunkie.com/what-is-a-video-transmitter.htm

VTX stands for video transmitter, this is the heart of the FPV life system. Pumping life into the many possibilities of FPV. VTXs come in many different shapes, sizes, strengths, and wiring setups. Strapped to the front of the quad is an FPV camera, and strapped to the head is a pair of FPV goggles. You can watch live, instantaneous footage right from the cockpit because the VTX is sending the footage received from the camera out to the goggles.

You are picking the right VTX for you. This will start with knowing if size and weight are factors for you. If you are planning to race, and only race, then you will select any VTX that is light in weight. It’s probably important that your VTX can do pit mode and channel control (depending on which one you choose). This may be a smart audio feature or the tramp protocol. Pit mode is where you will be able to set your VTX to a certain mode that allows you to power up your quad without powering up your VTX to keep you from blasting video and trampling over other racers on the track. Channel control allows you to change your frequency right from your radio for easy switching at a race, or to prepare your quads for the race the next day. Seeing that range is not so much of a factor in a race, only 25mw is allowed, and all that you need. So you can pretty much pick any when it comes to figuring out which is best for you and your power output needs.

Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
