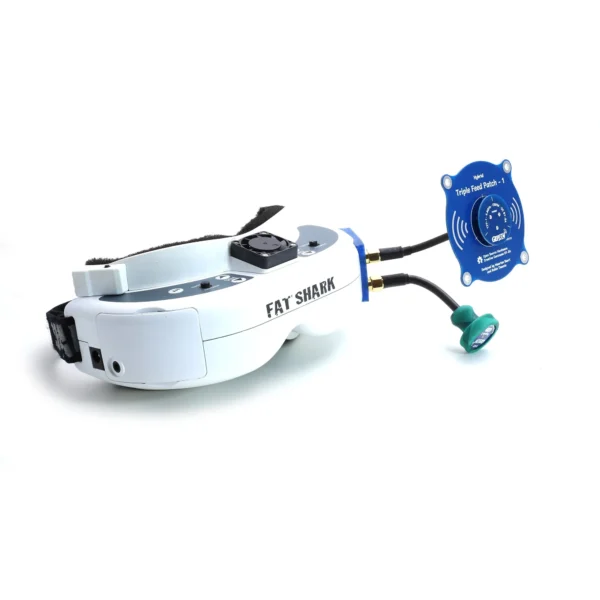

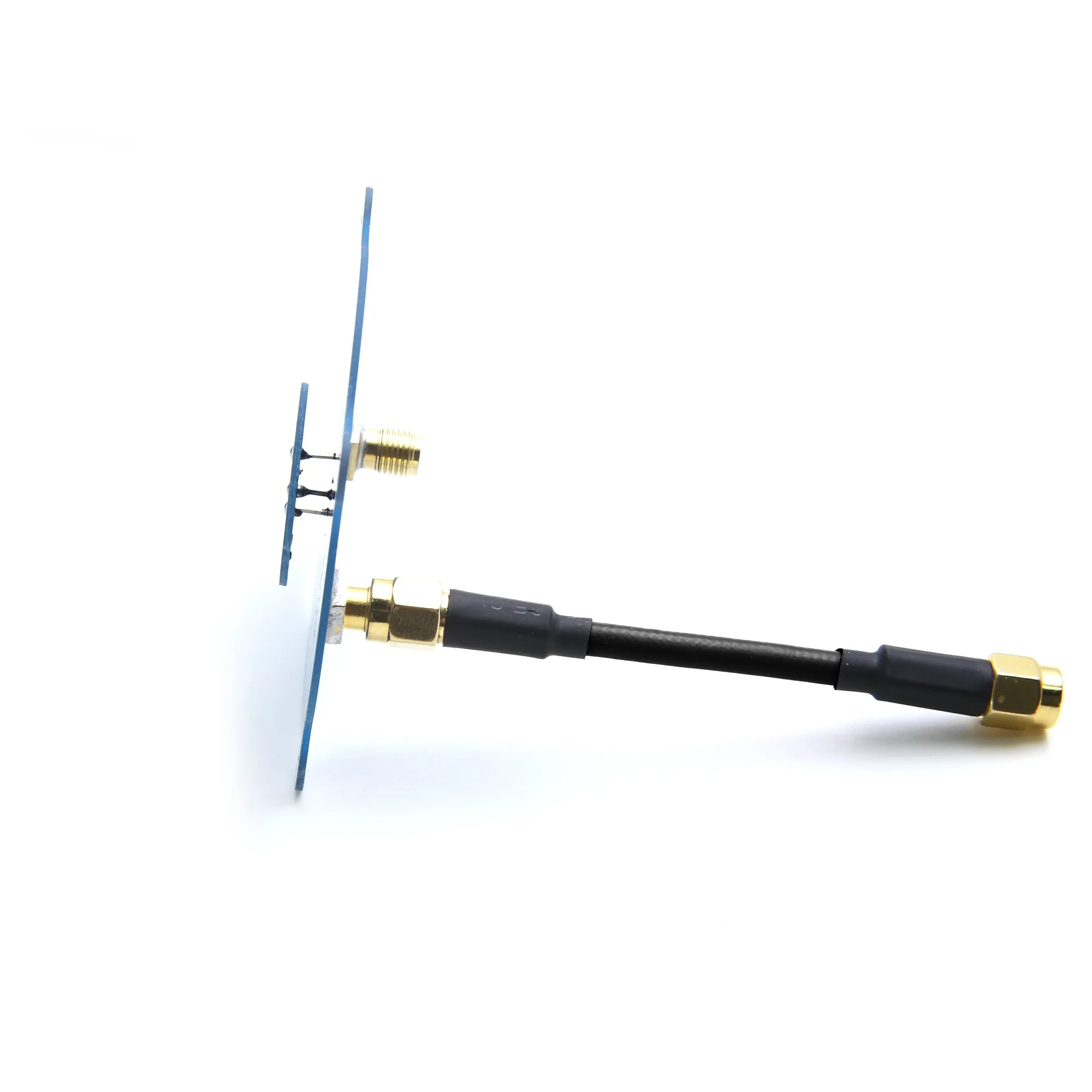

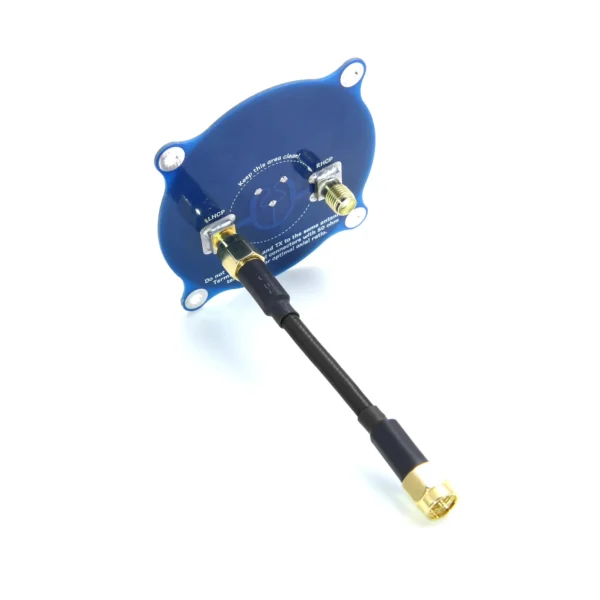

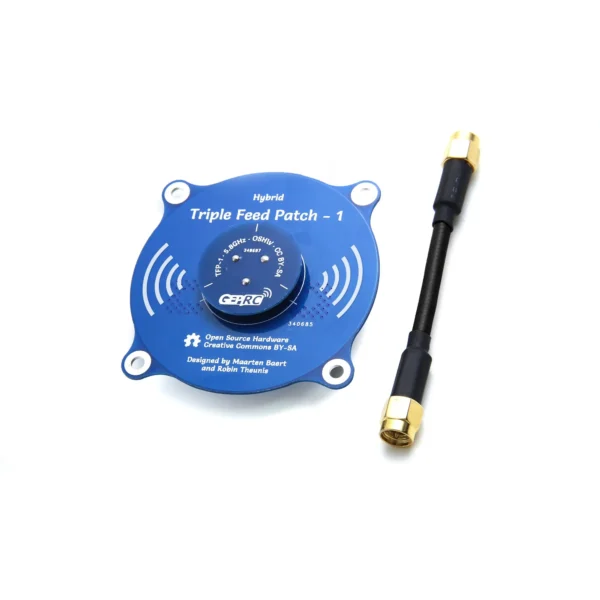

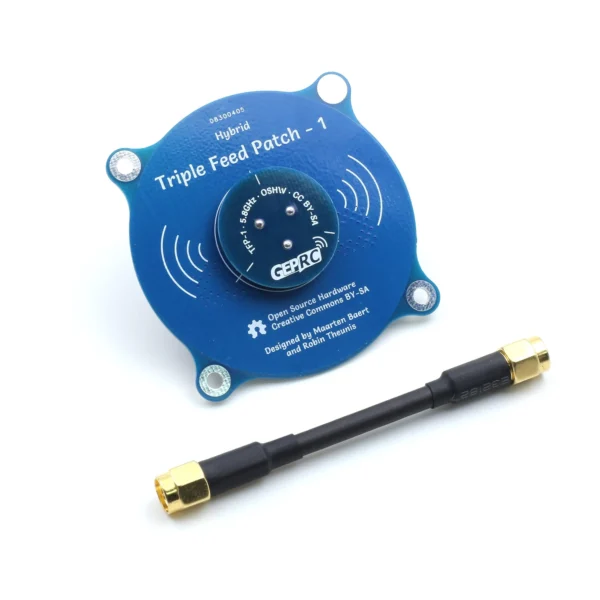

GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna (SMA RHCP LHCP Male)

1,199.00

Β Overview:

    • Center frequency: 5.8 GHz
    • Bandwidth: 660 MHZ (5.47-6.13ghz)
    • Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
    • Axial ratio: < 1.3
    • DBi antenna gain: 9.4

Out of stock

SKU: SKU6743289 Category:
Spread the love

GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna (SMA RHCP LHCP Male)



  • Center frequency: 5.8 GHz
  • Bandwidth: 660 MHZ (5.47-6.13ghz)
  • Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
  • Axial ratio: < 1.3
  • DBi antenna gain: 9.4
  • Half power beam width: 55 Β° (horizontal and vertical)
  • Radiation efficiency: 83.5%
  • These values are based on simulation and the actual measurements are as follows (they are very similar).
  • Due to the change in the FR4 dielectric constant, the center frequency may be transferred between batches.
  • And not all FR4 brands have the same dielectric constant.
    The frequency conversion to 100 MHz is normal.
Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
