Sale!

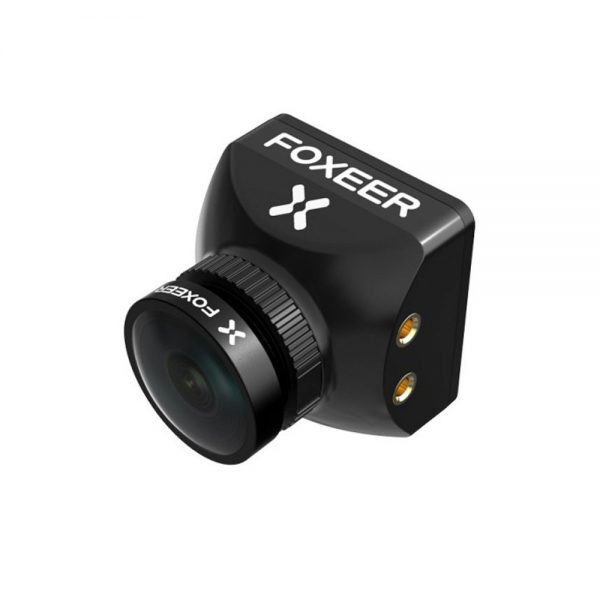

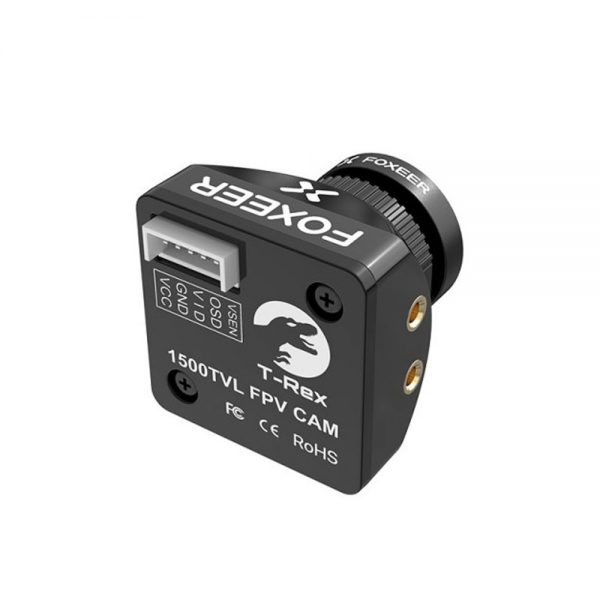

Foxeer T-Rex Mini 1500TVL 1.7mm FPV Camera

3,299.00

Overview:

The Foxeer T-Rex Mini is a 22x22mm (28×22 with bracket) FPV camera by Foxeer that features a 2MP CMOS sensor, 1500TVL resolution, 6ms low latency, NTSC/PAL switchable, auto white balance, and many other cool features!

  • Sensor Type: 2MP CMOS Sensor
  • Scale: 4:3/16:9 Switchable
  • Tv System: PAL/NTSC Switchable
  • Resolution: 1500TVL
  • Shutter Speed: Auto
  • Flip: Up, Down, Left, and Right
  • Video Output: CVBS Analog Signal
  • Latency: 6ms
  • Minimum Illumination: 0.001Lux
  • White Balance: Auto
  • DNR: 3DNR
  • WDR: 110dB
  • DAY/NIGHT: EXT/Auto/Color/B&W
  • Flight OSD: Voltage/Cam Title/Time
  • Input Voltage: 4.5V~16V
  • Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
  • Language: ENGLISH /中文
  • Working Temperature: -10°~50°C RH90% MAX
  • Working Humidity: 20~80%
  • Storage Temperature: -20°~70°C
  • Dimension: 22x22mm
  • Weight: 10.2g(Exclude cable)

Out of stock

SKU: SKU77990623487 Category:
Spread the love

Foxeer T-Rex Mini 1500TVL 1.7mm FPV Camera Description:

The Foxeer T-Rex Mini is a 22x22mm (28×22 with bracket) FPV camera by Foxeer that features a 2MP CMOS sensor, 1500TVL resolution, 6ms low latency, NTSC/PAL switchable, auto white balance, and many other cool features!

The Foxeer T-Rex Mini is a 22x22mm (28×22 with bracket) FPV camera by Foxeer that features a 2MP CMOS sensor, 1500TVL resolution, 6ms low latency, NTSC/PAL switchable, auto white balance, and many other cool features!

Specifications:

  • Sensor Type: 2MP CMOS Sensor
  • Scale: 4:3/16:9 Switchable
  • Tv System: PAL/NTSC Switchable
  • Resolution: 1500TVL
  • Shutter Speed: Auto
  • Flip: Up, Down, Left, and Right
  • Video Output: CVBS Analog Signal
  • Latency: 6ms
  • Minimum Illumination: 0.001Lux
  • White Balance: Auto
  • DNR: 3DNR
  • WDR: 110dB
  • DAY/NIGHT: EXT/Auto/Color/B&W
  • Flight OSD: Voltage/Cam Title/Time
  • Input Voltage: 4.5V~16V
  • Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
  • Language: ENGLISH /中文
  • Working Temperature: -10°~50°C RH90% MAX
  • Working Humidity: 20~80%
  • Storage Temperature: -20°~70°C
  • Dimension: 22x22mm
  • Weight: 10.2g(Exclude cable)

Includes:

  • 1 x Foxeer T Rex Mini FPV Camera
  • 1 x OSD Board
  • 12 x Bracket Screws
  • 6 x Gasket Ring
  • 1 x 2pin OSD Cable
  • 1 x Servo Cable
Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
