FlySky FS-RX2A Pro 2.4Ghz Receiver

849.00

 Overview:

  • The FS-RX2A Pro Radio Receiver Mini Receiver is built for use in multi-rotor drones and is a 1-way receiver (no telemetry).
  • It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output, and has i-BUS support for up to 10 channels.
  • In the world of racing drones, the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 12 x 15 mm and 1.0g.

Out of stock

SKU: SKU82323941212 Categories: ,
Spread the love

FlySky FS-RX2A Pro 2.4Ghz Receiver Specifications and Features :



  • The FS-RX2A is an AFHDS 2A compatible receiver in a minuscule form factor. Weighing only 1g, this receiver is perfect for micro builds.
  • The FS-RX2A Pro Radio Receiver Mini Receiver is built for use in multi-rotor drones and is a 1-way receiver (no telemetry).

It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output, and has i-BUS support for up to 10 channels.

  • In the world of racing drones, the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 12 x 15 mm and 1.0g.
  • Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10, etc.

Binding Procedure:

  • Press and hold the Binding button, and supply power to the receiver, green LED blinks fast means entering the binding mode.
  • Make the transmitter enter BIND mode.
  • The LED indicator slowly blinking means the binding succeeded.
  • Make the transmitter quit BIND mode, the receiver LED indicator will stay on, meaning its receiving signal.

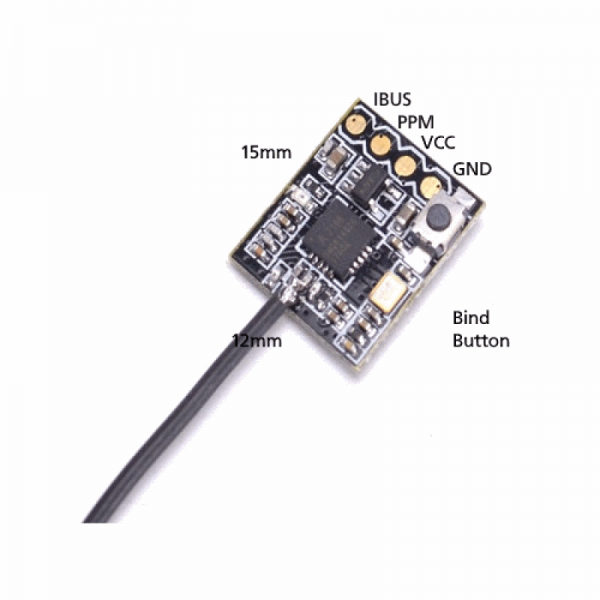

Specifications:

  • Item name: FS-RX2A receiver
  • Channel: 10(IBUS), 8(PPM)
  • RF Range: 2.408-2.475GHZ
  • Number of bands: 135
  • RX Sensitivity: -92dBm
  • 2.4GHz protocol: AFHDS 2A
  • Signal output: IBUS, PPM
  • Antenne length: 33mm
  • Power input: 3.3-5V
  • Control distance: 400m+
  • Current: 30MA
  • Size: 12*15mm
  • Weight: 1g
  • Compatible Transmitter: All AFHDS 2A Transmitter, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10.

Includes:

  • 1x FlySky FS-RX2A 2.4Ghz Receiver
Weight 0.2 kg
Dimensions 18 × 10 × 10 cm
